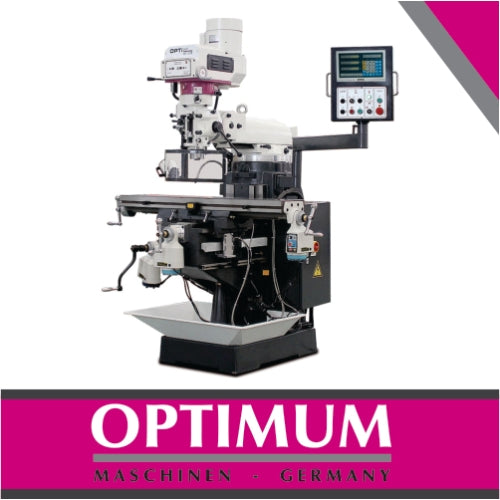

Optimum Milling Machine MF 2-B | MM3348330

Drilling-milling machine

Technical Specifications

length	2,000 mm
Width depth	1,600 mm
height	2,010 mm
Weight (net)	1,000 kg
Total connected value	3 kW
Supply voltage	400V
Phase (s)	3 Ph
Current Type	~
power frequency	50 Hz
Knife head size max.	76 mm
End mill size max.	25 mm
Vertical spindle projection	15-415 mm
Vertical spindle Spindle mount	ISO 40 DIN 2080
Vertical spindle speed range	60 - 4,200 min-1
Vertical spindle Number of speed ranges	2
Vertical spindle Control of the speed control	mechanically stepless
Horizontal milling length	230 mm
Horizontal milling width	1,246 mm
Distance vertical spindle - horizontal milling table max.	405 mm
Horizontal milling T-slots size	16 mm
Horizontal milling T-slots number	3
Horizontal milling T-slots clearance	63 mm
Horizontal milling load max.	200 kg
Vertical spindle Power Drive motor Normal operation	2.2 kW
Traverse X-axis manually	690 mm
Travel Y-axis manually	310 mm
Travel Z-axis manually	390 mm
Traverse X-axis automatically	610 mm
Traverse Y-axis automatically	230 mm
Traverse Z-axis automatically	310 mm
Drilling capacity steel (S235JR)	24 mm
Continuous drilling capacity steel (S235JR)	20 mm
Vertical spindle Turning area milling head X - Y plane	90 degrees
Vertical spindle Turning area milling head Z - X plane	45 degrees
Vertical spindle Pinole diameter	86 mm
Vertical spindle Quill stroke	127 mm
Vertical spindle quill feed	0.04 / 0.08 / 0.15 mm / rev
Vertical spindle Milling head Travel Z-axis	312 mm

description

• Multifunctional drilling and milling machines for professional use. Mechanically steplessly adjustable drive
• Heavy, solid design made of high-quality Meehanite cast iron
• High concentricity due to tapered roller bearing, measured smaller than 0.01 mm in the quill
• Automatic quill feed
• Right / left rotation for thread cutting
• X- and Z-axis with adjustable 55 ° dovetail guide
• Y-axis with flat guide
• Coolant system
• Right and left rotation
• Automatic quill feed, 3-stage 0.04 - 0.15 mm / rev
• Precision micro feed
• Milling spindle with precision bearing
• Mechanical spindle brake
• Drilling depth scale and stroke
• Smooth-running, precise cross table with T-slots and coolant channel
• Motor feed in the X, Y and Z axes
• Integrated digital position indicator DPA 2000
• Swiveling arm with integrated control panel
• Central lubrication

MF 4V-B:

• Load capacity cross table 300 kg
• Large travel: X / Y / Z axis automatically 820 mm / 320 mm / 340 mm

Room amenities

• control panel
  • Integrated control panel
  • Integrated digital position indicator DPA 2000 with speed display

• Drill-mill head
  • Tiltable ± 45 °

• Spindle speeds
  • Stepless speed control
  • Especially large speed range

• depth stop
  • Adjustable with millimeter scale
  • Front readable

• windscreen
  • adjustable height
  • Large dimensions

• cross table
  • Solid
  • Large dimensions
  • Precise surface finish
  • Motorized table height adjustment Z-axis
  • Adjustable end stops

• Y and Z axis
  • Motorized table feed

• X axis
  • Motorized table feed
  • Stepless speed control
  • Rapid
  • Forward / reverse operation

Delivery Information

• operating tool

ON ORDER ONLY
