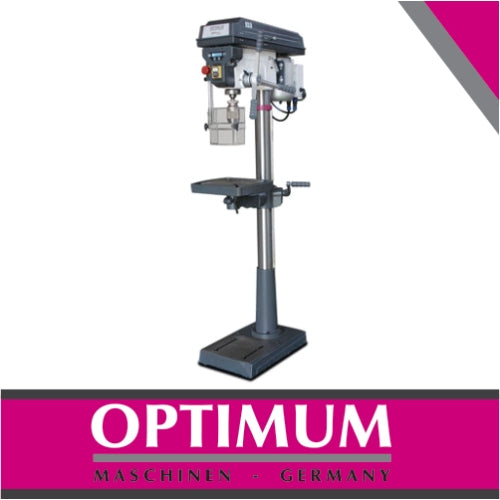

Optimum Optidrill D23PRO 400V Drilling | OPTI D26 PRO
R 20,119.00 ZAR
R 20,119.00 ZAR
VAT included.

OPTIdrill D 26Pro

Drill Press

Drilling machines with V-belt

Technical Specifications

Dimensions and weights
Column diameter 80 mm
Length 670 mm
Width/depth 355 mm
Height 1640 mm
Weight approx. 85 kg
Drilling performance
Drilling performance steel (S235JR) 25 mm
Continuous drilling performance steel (S235JR) 20 mm
Drilling table
Workspace length 330 mm
Workspace width 290 mm
T-groove type diagonal
T-groove size 14 mm
Rotation 360 °
Angle ± 45 °
Max. distance spindle - drilling table 720 mm
Electric Data
Supply voltage 400 V
Machine base
Max. distance spindle - machine base 1230 mm
Work area length 385 mm
Work area width 260 mm
Machine base T-groove size 16 mm
Machine base T-groove number 2
Machine base T-groove spacing 170 mm
Motor(s)
Spindle motor drive output 0.75 kW
Number of gears spindle motor 1 Stages
Speed range
Speed range 200 – 2440 min¯¹
Number of gears 12 Stages
Speed control manually
Spindle
Quill stroke 85 mm
Spindle chuck MT 3
Reach 210 mm
VPE 1

Description

  • Easy to operate IP 54 safety switch with undervoltage release and separate emergency stop blow switch
  • 400 volt models with right / left rotation
  • depth stop
  • Precision machined drill table with diagonal T-slots
  • Height adjustment of the drilling table via rack
  • Drill table inclinable by 45 ° and 360 ° rotatable
  • V-belt cover with safety switch
  • Aluminum die-cast quill lever in one piece with softgrip handles
  • industrial engine
  • Precision Spindle bore
  • Machine operation including safety electronics in 24 V DC
  • Guaranteed concentricity </= 0,02 mm in der Bohrpinole gemessen</li>
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine

belt drive

  • Smooth running thanks to ground multi-tooth driver
  • Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt (from B 23Pro)

Scope of Delivery

  • Morse cone MK 3 - B 16
  • Keyless chuck 1 - 16 mm
  • T-nuts
