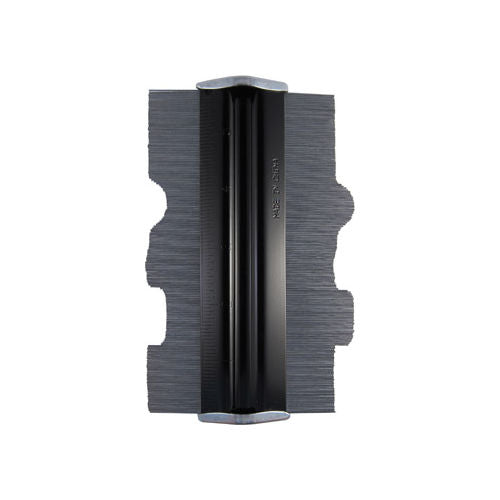

Contour Gauges, also known as profile gauges, are practical tools used to replicate the exact shape of an object’s edge or surface. With rows of sliding pins that adjust to any contour, they allow accurate transfers of complex shapes onto workpieces.
Key Characteristics:
-
Shape Replication: Pins move independently to capture curves, corners, and irregular profiles with precision.
-
Durable Build: Constructed from plastic or metal, designed for repeat use without pin deformation.
-
Different Sizes: Available in various lengths to suit small trim work or larger construction projects.
-
Easy Transfer: Captured profile can be directly traced onto materials like wood, tiles, or sheet metal.
-
Versatile Tool: Useful in woodworking, flooring, tiling, metalwork, and DIY projects.
Common Uses:
-
Woodworking: Duplicating mouldings, edges, or trim for accurate cuts.
-
Tiling & Flooring: Cutting tiles or flooring to match corners and pipework.
-
Metal & Fabrication: Checking and transferring irregular profiles for fitting and alignment.
