General Purpose Battery Chargers are devices engineered to replenish the stored energy in rechargeable batteries used by consumer and industrial electronic equipment. They convert AC mains power into the precise DC voltage and current required, while managing the charge cycle to protect cell health and ensure safe operation.
Key Characteristics:
-
Input Requirements: Designed for standard mains supplies (e.g. 230 V AC, 50 Hz in South Africa).
-
Output Voltage & Current: Tailored to the battery’s nominal voltage (e.g. 3.7 V, 7.4 V, 12 V) and optimal charge current, often governed by the battery’s capacity (milliamp-hours, mAh).
-
Charge Regulation: Utilises multi-stage algorithms—such as trickle, bulk, absorption and float—to efficiently fill cells without over-charging.
-
Safety Features: Integrated circuitry monitors cell temperature, voltage and current to prevent over-voltage, over-current, short-circuit and reverse-polarity faults.
Types of Chargers:
-
Wall-Plug Adapters: Compact units that plug directly into the mains and deliver fixed voltage/current (common for single-cell Li-ion packs).
-
USB & USB-C Chargers: Provide 5 V (or higher via USB-PD) output, widely used for mobile-device batteries and power banks.
-

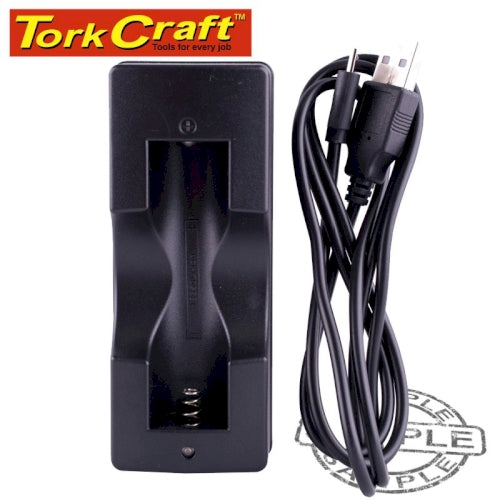

Desktop & Bench Chargers: Standalone units accommodating multiple chemistries and form-factors (cylindrical NiMH/NiCd cells, Li-ion 18650/21700 cells) with individual status indicators.
-
Smart Chargers: Communicate with “smart” battery packs via data lines or wireless links to negotiate optimal charge profiles and perform diagnostics.
-
Docking Stations & Cradles: Custom-shaped holders for proprietary packs (e.g. cordless phone bases, hand-held scanner docks) that charge and often synchronise data.
Selection Considerations:
-
Chemistry Compatibility: Match charger to cell type (Li-ion, NiMH, NiCd) to ensure correct charge algorithm.
-
Charge Rate vs. Battery Longevity: Higher currents shorten recharge times but may increase cell wear and heat generation; choose according to usage patterns.
-
Portability & Form-Factor: Pocket-sized USB chargers suit travel, whereas larger bench units remain in a fixed workspace.
-
Indicator & Diagnostic Features: LED or LCD readouts that show charge status, fault alerts and cell health can aid maintenance and prevent unexpected failures.
-
Additional Capabilities: Some chargers offer cell conditioning (discharge/refresh cycles), storage modes for long-term battery care, or firmware updates via PC.
By selecting the right electronics battery charger—balancing chemistry, charge profile, safety features and convenience—you ensure reliable device uptime, extend battery service life and maintain safe operation.
