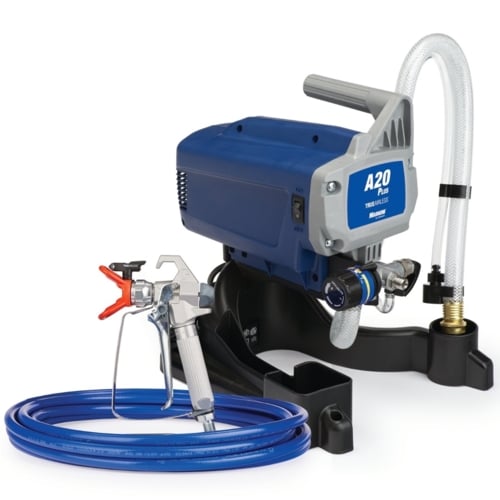

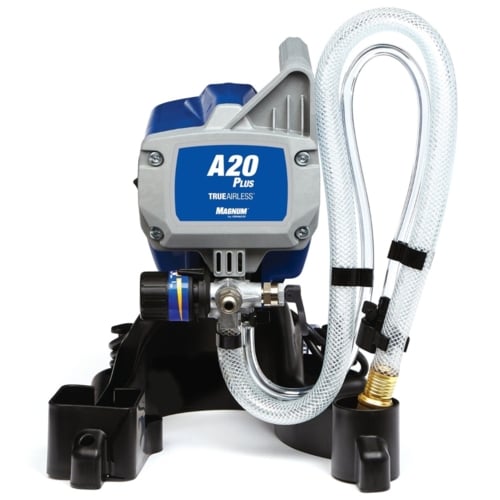

Magnum A20 Plus Electric TrueAirless Sprayer, 150L/Annual (18H201) | MAG A20

Magnum A20 Plus Electric TrueAirless Sprayer, 150L/Annual (18H201) | MAG A20.

Designed for homeowners and DIY enthusiasts, the Magnum A20 Plus Electric TrueAirless Sprayer simplifies painting tasks while delivering professional-quality results. This compact and lightweight unit is ideal for small to medium-sized projects, offering a stable, low-profile design with an integrated paint bucket hook for easy transport.

Equipped with a durable Stainless Steel Piston Pump, this sprayer provides high-pressure power to spray unthinned coatings efficiently. The adjustable pressure control ensures optimal paint flow, adapting to different coatings and surface types.

The TrueAirless Spray Tip with SoftSpray Technology enhances control, reducing overspray while achieving a smooth, consistent finish. Additionally, the flexible suction tube enables direct spraying from a paint bucket, eliminating unnecessary refills. Cleaning is hassle-free with the Power Flush Adapter, which connects to a garden hose for quick and efficient rinsing.

With built-in storage compartments, users can conveniently store the spray gun, extra tips, and power cord, keeping everything organised for future use.

Features & Benefits:

• Stainless Steel Piston Pump: Delivers high-pressure performance for spraying unthinned coatings.
• Adjustable Pressure Control: Allows precise regulation of paint flow for different applications.
• Flexible Suction Tube: Enables direct spraying from a paint bucket, reducing refilling interruptions.
• TrueAirless Spray Tip with SoftSpray Technology: Provides greater control and minimises overspray.
• Power Flush Adapter: Connects to a garden hose for fast and easy cleaning.
• Compact Design: Stable, low-profile unit with an integrated paint bucket hook for easy portability.
• Extra Storage Compartments: Keeps the spray gun, additional spray tips, and power cord neatly stored.

Specifications:

Compatible Tip Sizes: 0.009 in (0.229 mm), 0.011 in (0.279 mm), 0.013 in (0.330 mm), 0.015 in (0.381 mm)
Fluid Hose Inside Diameter: 1/4 in (6.35 mm)
Fluid Inlet Size: 1-1/4 in (31.75 mm), NPSM thread type
Fluid Outlet Size: 1/4 in (6.35 mm), NPSM thread type
Frame Configuration: Stand-mounted
Frequency: 50 Hz
Maximum Flow Rate: 0.91 L/min
Maximum Fluid Working Pressure: 3000 psi (207 bar, 21 MPa, 20700 kPa, 20.7 kg/cm²)
Maximum Hose Length: 15 m
Maximum Operating Temperature: 46 °C
Minimum Operating Temperature: 4 °C
Minimum Generator Power: 1500 W
Number of Guns: 1
Overall Dimensions (H x L x W): 455 mm x 368 mm x 315 mm
Phase: 1
Power Cord Length: 180 cm (1801 mm)
Power Source: Electric
Pressure Control Type: Adjustable
Recommended Annual Usage: 150 L
Region Plug Type: EU region (Type C, E & F plug)
Series: A20 Plus
Spray Gun Type: SG2 - Spray Gun
Spray Type: Airless
Voltage: 230 V
Weight: 6 kg
Wetted Materials: Stainless Steel, Brass, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, UHMWPE, Zinc-Plated Carbon Steel, Aluminium

Scope of Delivery:

• 1x SG2 Spray Gun

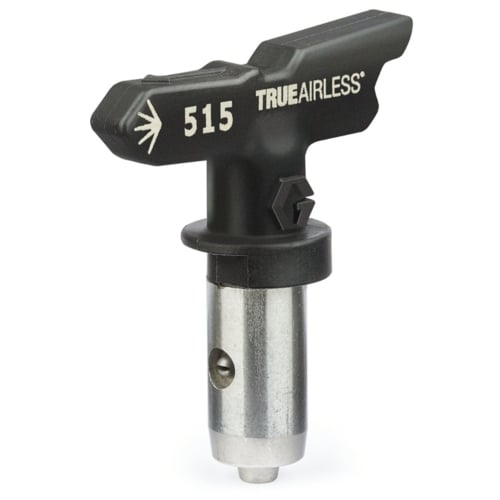

• 1x TrueAirless 515 Spray Tip
• 1x Spray Tip Guard
• 1x 7.5 m (1/4 in) DuraFlex Hose
• 1x Pump Armour Storage Fluid (235 ml)
• 1x Quick Start-Up Guide
• 1x Operating Manual

Downloads:

A20 Plus - Instruction Manual
A20 Plus - FAQ Sheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
