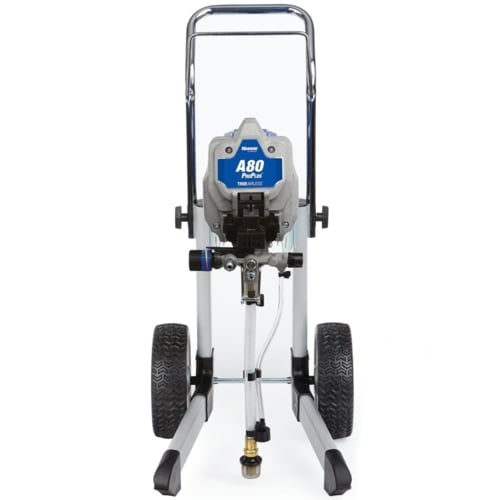

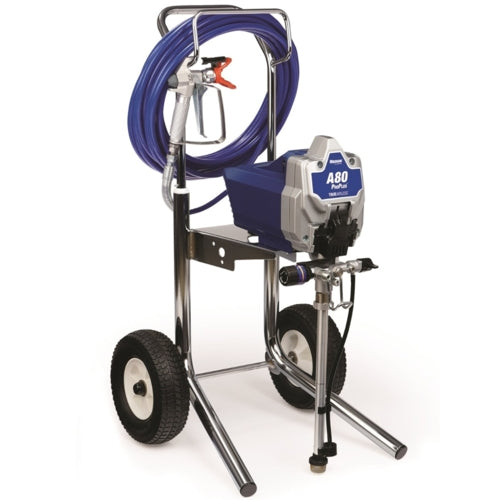

Magnum A80 ProPlus Electric TureAirless Sprayer, 3000L/Annual (18H260) | MAG A80

Magnum A80 ProPlus Electric TureAirless Sprayer, 3000L/Annual (18H260) | MAG A80.

Designed for professional-grade applications, the Magnum A80 ProPlus Electric Airless Sprayer delivers power, efficiency, and reliability. Its ProX Stainless Steel Piston Pump ensures durability and extended service life, while the ProXChange Pump System allows quick and tool-free pump replacements, keeping your projects on track.

The DC Motor provides consistent power and supports up to 60 m of airless hose, offering greater flexibility on job sites. This model is also hot solvent compatible, making it ideal for spraying solvent-based lacquer. Equipped with an SG3 Metal Spray Gun, this sprayer ensures smooth operation with an integrated hose swivel, reducing strain during extended use.

With TrueAirless Spray Tip and SoftSpray Technology, the A80 ProPlus delivers superior control and reduced overspray for a wide range of coatings. Additionally, the PushPrime feature ensures a fast and reliable start-up every time, and the durable welded frame enhances portability and job site stability.

Features & Benefits:

• ProX Stainless Steel Piston Pump: Delivers reliability and a longer lifespan.
• ProXChange Pump System: Enables quick, tool-free pump replacement, reducing downtime.
• Longer Pump Stroke: Supports a 0.5 cm (0.021 in) tip for spraying thicker materials.
• DC Motor: Extends motor lifespan and supports up to 60 m of airless hose.
• Hot Solvent Compatible: Handles solvent-based lacquers and other hot solvents.
• PushPrime: Ensures fast and dependable start-up.
• SG3 Metal Spray Gun: Premium gun with hose swivel for easier hose management.
• TrueAirless Spray Tip with SoftSpray Technology: Provides better control and minimises overspray.
• Durable Welded Frame: Enhances stability and mobility on job sites.
• Adjustable Pressure: Allows precise control of paint flow for different coatings.

Specifications:

Compatible Tip Sizes: 0.009 in (0.229 mm), 0.011 in (0.279 mm), 0.013 in (0.330 mm), 0.015 in (0.381 mm), 0.017 in (0.43 mm), 0.019 in (0.483 mm), 0.021 in (0.533 mm)
Convertible: Non-Convertible
Engine Size: 0.875 HP (0.65 kW)
Filter Mesh Size: 60
Fluid Hose Inside Diameter: 1/4 in (6.35 mm)
Fluid Inlet Size: 1-1/4 in (31.75 mm), NPSM thread type
Fluid Outlet Size: 1/4 in (6.35 mm), NPSM thread type
Frame Configuration: Cart-mounted
Frequency: 50 Hz
Maximum Flow Rate: 0.47 GPM (1.78 L/min)
Maximum Fluid Working Pressure: 3000 psi (207 bar, 20.7 MPa)
Maximum Hose Length: 200 ft (60.96 m)
Maximum Operating Temperature: 115 °F (46 °C)
Maximum Sound Pressure Level: 93 dB(A)
Maximum Tip Size: 0.021 in (0.533 mm)
Minimum Generator Power: 2500 W
Minimum Operating Temperature: 40 °F (4 °C)
Model: Magnum A80 ProPlus
Motor Type: DC Motor
Mount Type: ProXChange
Number of Guns: 1
Outlet Paint Filter: InstaClean
Overall Dimensions (H x L x W): 38.5 in (978 mm) x 20.8 in (528 mm) x 20.6 in (523 mm)
Phase: 1
Power Cord Length: 70.92 in (1800 mm)
Power Rating: 0.875 HP (0.65 kW, 653 W)
Power Source: Electric
Pressure Control Type: Adjustable
Product Series: Pro Series
Pump Mount Type: ProXChange
Pump Rod Type: Hardened Stainless Steel
Pump Sleeve Material: Stainless Steel
Pump Type: ProX Piston Pump
Recommended Annual Usage: 3000 L
Spray Gun Type: SG3 - Spray Gun
Spray Type: Airless
Voltage: 230 V
Weight: 49.5 lb (22.45 kg)
Wetted Materials: Stainless Steel, Brass, Leather, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, Plated Steel, UHMWPE, Aluminium

Scope of Delivery:

• 1x SG3 Spray Gun
• 1x TrueAirless 515 Spray Tip
• 1x RAC5 Spray Tip Guard
• 1x 15 m (1/4 in) DuraFlex Hose
• 1x Pump Armor Storage Fluid (235 ml)
• 1x Garden Hose Connector
• 1x Quick Start-Up Guide
• 1x Operating Manual

Downloads:

A80 ProPlus - Instruction Manual
A80 ProPlus - Safety Data Sheet
A80 ProPlus - Data Sheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
