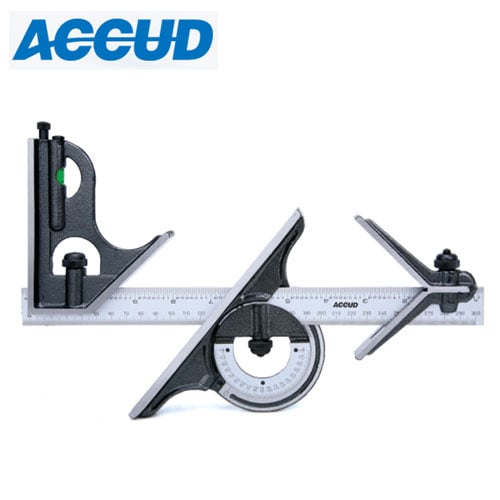

ACCUD Combination Square Set (817-180-02)

ACCUD Combination Square Set (817-180-02).

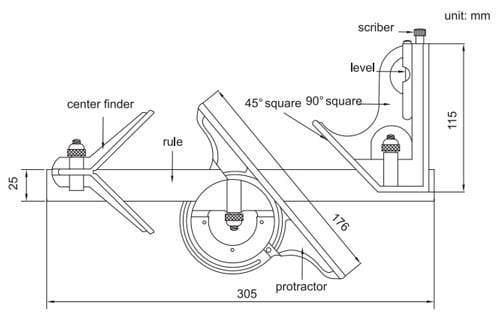

• Used as square, level, marking gage, scriber, center gage, protractor and steel rule
• Square 90° and 45° , with level and scriber
• Protractor graduated 180° in both directions, with level
• Blade graduation: 1/2mm and 1/32"on one side, 1mm and 1/64"on reverse side

Features:

• Protractor - Used to set an angle or angle measurement, measuring range: 0-180°, accuracy ± 7'
• Square - Used as 90 square (accuracy ± 8') or 45 square (accuracy ± 10')
• Rule - Used as rule, measuring range 300mm/12"
• Center Finder - Used to find the cylinder center, accuracy ± 0.15mm

Specifications:

Application Text : Used as square, level, marking gage, scriber, center gage, protractor and steel rule.
Brand Name: Accud
Contains: 1 Combination Square Set
Item Weight: 300 g
Material Type: Stainless steel
Model Text: 817-180-02
Packaging Dimension Lbh: 13 x 8 x 10 cm
Product Information: Blade Graduation: 1/2 mm and 1/32 Inch on one side, 1 mm and 1/64 Inch on reverse side
Range: 0 to 180 degree
Size: 300 mm
