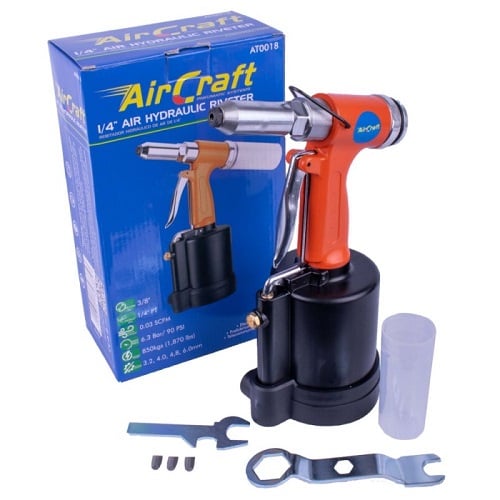

AirCraft Professional Hydraulic Riveter 1/4" | AT0018

Aircraft Professional Hydraulic Riveter 1/4" | AT0018.

• Professional hydraulic riveter, featuring a pull force of 850 kg.
• Nose pieces are located on the underside of the riveter.
• A compressor is required with an air flow delivery of at least 0.8 l/min at 6.3 Bar to make use of the riveter.
• A container on the back holds the mandrels of the already fitted blind rivets.

Riveting capacity:

• Stainless steel: 2.4-3.2mm blind rivets
• Aluminium: 2.4-4.8mm blind rivets
• Make sure that an in-line lubricator is fitted with pneumatic oil (AT OIL).

Features:

• Container on the back holds the mandrels of already fitted blind rivets
• Nose pieces fitted on the underside of the riveter

Application:

• Fit blind rivets up to 4.8mm

Specifications:

Working pressure: 6.3 Bar
Traction power: 850 kg.f
Average air consumption: 0.8 l/min
Suggested minimum compressor HP: 1 HP
Exhaust: Front of cylinder
Range: 2.4 - 4.8mm
Stroke length: 14mm max.
