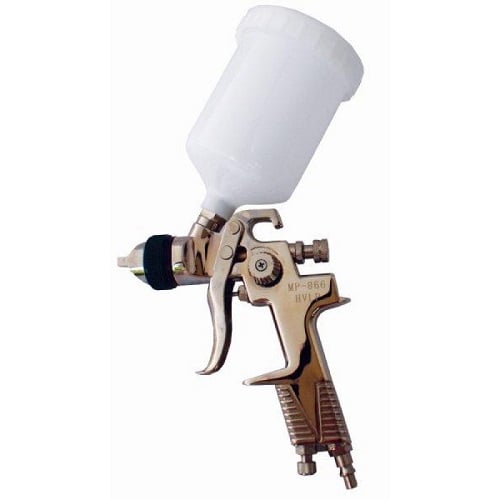

Aircraft Professional Spray Gun 1.4MM Nozzle HVLP Gravity Feed (SG MP866)

Aircraft Professional Spray Gun 1.4MM Nozzle HVLP Gravity Feed (SG MP866).

Features:

• Cast aluminium body construction
• Comfortable, balanced and easy to control by having the gravity cup angled slightly backwards
• Light in weight, thanks to the aluminium body
• Easy spray pattern and fluid control adjustment
• Stainless steel fluid tip and needle
• Rotatable aircap to change spray pattern direction
• The success behind an HVLP spray gun, is the low amount of overspray.
• This is achieved by having an improved atomization, by using a lower air pressure and a higher volume of airflow.
• HVLP - High Volume Low Pressure

Tips and techniques

When sprayfinishing, it's always advised to keep the spray gun parallel to the workpiece surface. The distance from the surface of the workpiece should be the width of the spray pattern.

The lower the pressure of the air, the lower the chance to have bounce-back (overspray). The pressure should only be increased when the spray pattern is uneven - paint focused in the middle when the fan setting is wide.

Technical Data:

Working pressure: 22-43 Psi (1.5 - 3 Bar)
Cup capacity: 600 ml
Feed type: Gravity feed
Airflow consumption: 340 l/min
Air inlet hread: 1/4 BSP
Nozzle/Needle: Ø 1.4mm
Pattern width: 24 cm
