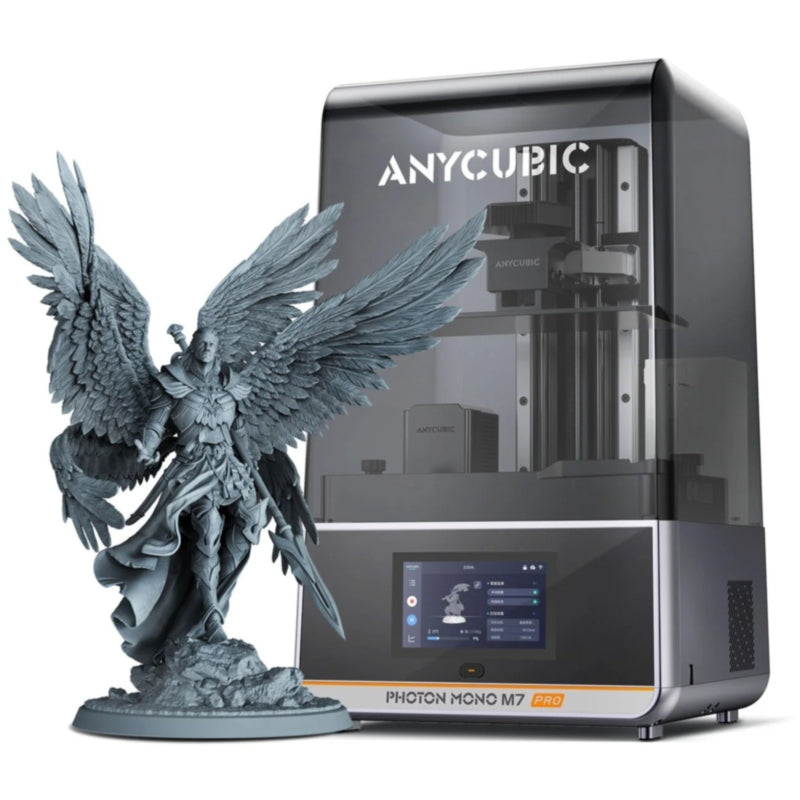

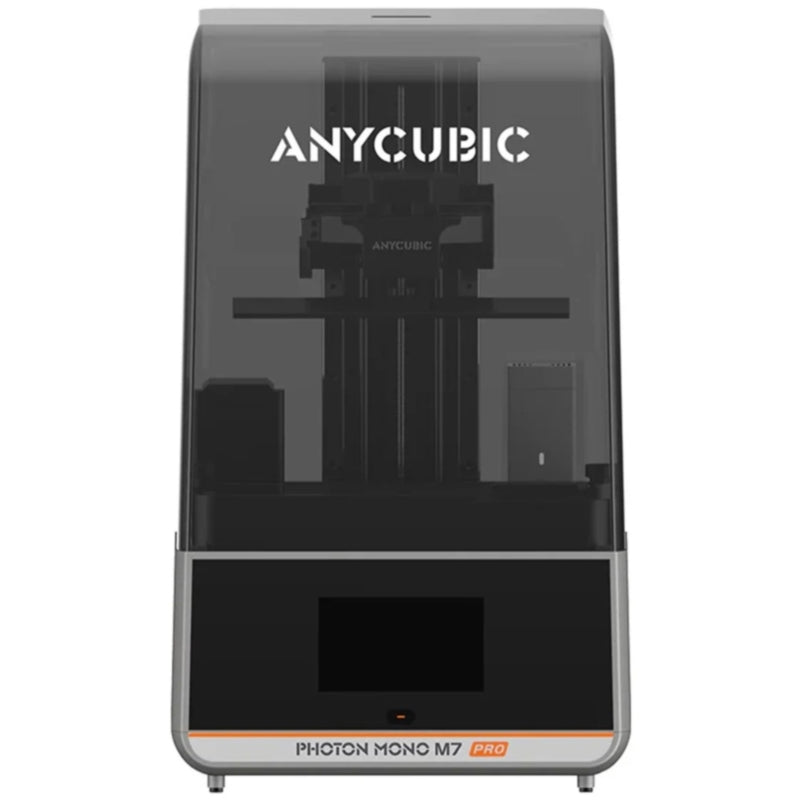

Anycubic Photon Mono M7 Pro 3D Printer | ANY031

Anycubic Photon Mono M7 Pro 3D Printer | ANY031.

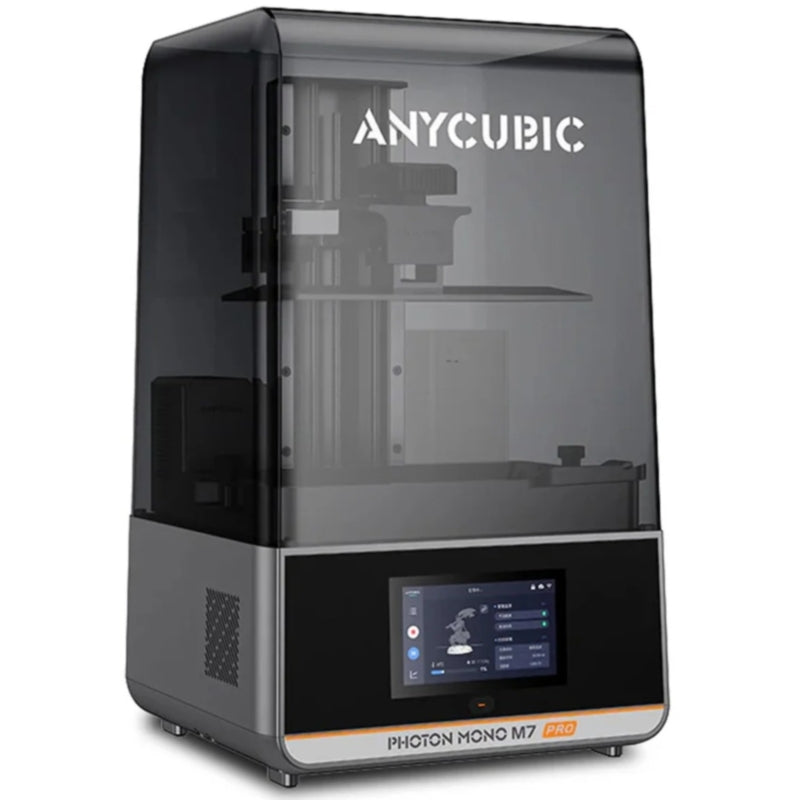

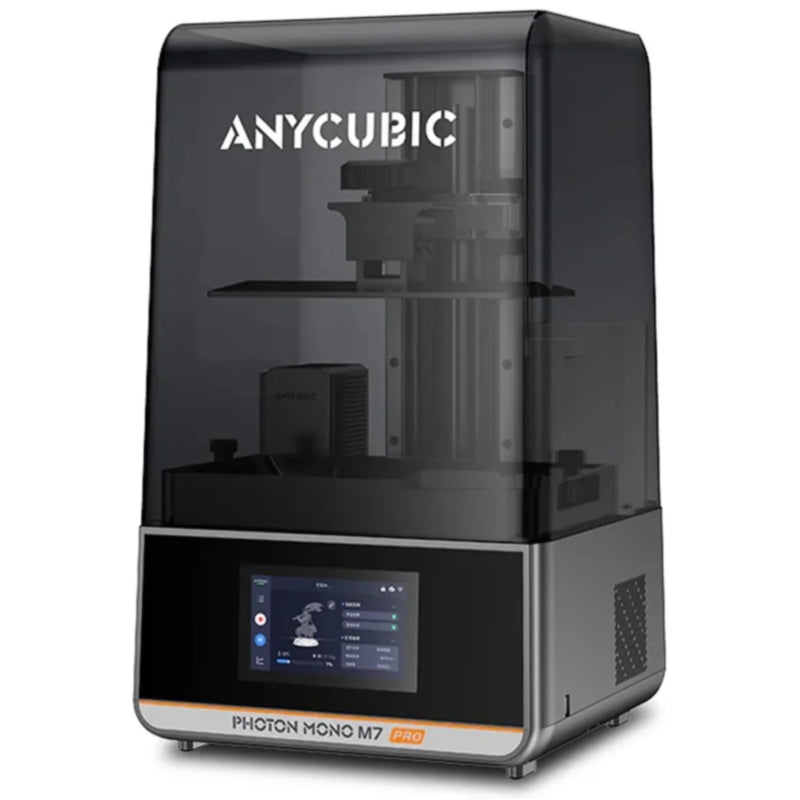

The Anycubic Photon Mono M7 Pro 3D Printer redefines resin printing performance with its cutting-edge 14K (13,320 × 5,120) monochrome LCD screen and LightTurbo 3.0 optical system, which integrates a COB light source and Fresnel lens for exceptional light uniformity and precision. With an impressive maximum print speed of 220mm/h when used with Anycubic high-speed resin, this model achieves up to five times faster performance than conventional resin printers.

Its levelling-free build platform and dynamic temperature control resin vat ensure consistent print quality and stability, while the auto resin refill and recovery system maintains optimal resin levels throughout the process. Furthermore, the intelligent detection suite prevents failed prints, detects resin residues, and extends film lifespan — all contributing to a reliable and efficient workflow.

Designed for seamless user experience, the M7 Pro supports USB, Wi-Fi, and LAN connectivity, along with intuitive control through a 4.3-inch IPS touchscreen interface. Whether for detailed miniatures, prototypes, or intricate models, this printer provides outstanding precision with a 16.8μm × 24.8μm XY resolution. Its robust construction, advanced safety features, and compatibility with various resin types make it a versatile solution for both professionals and enthusiasts.

Features & Benefits:

• Ultra-High 14K Resolution: Delivers exceptional detail and precision with 13,320 × 5,120-pixel resolution on a 10.1-inch monochrome LCD.
• High-Speed Printing: Achieves up to 220mm/h with Anycubic high-speed resin for faster project completion.
• LightTurbo 3.0 Optical System: Combines COB and Fresnel technologies to maintain superior light uniformity (≥90%) and ±0.01–0.05mm tolerance.
• Levelling-Free Platform: Floating platform design eliminates manual calibration and ensures consistent results.

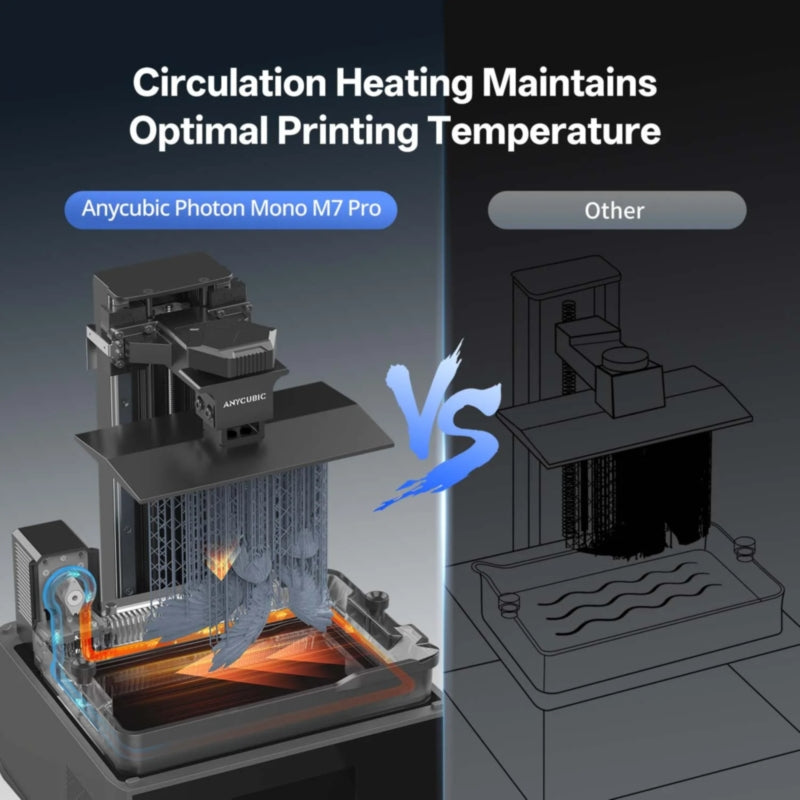

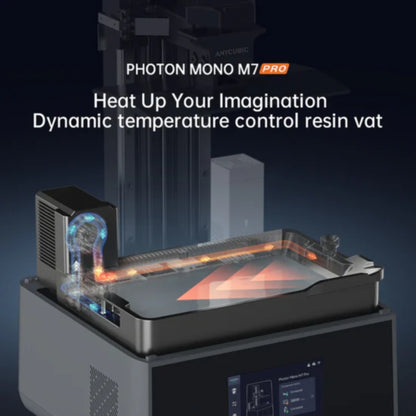

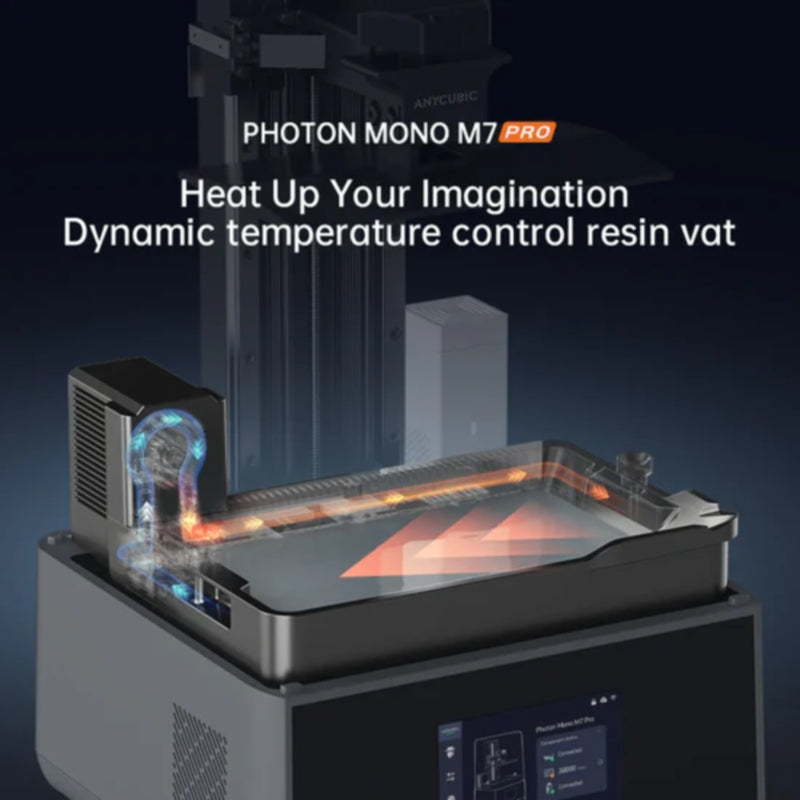

• Dynamic Temperature Control Resin Vat: Maintains ideal resin temperature for optimal curing, even in variable environments.

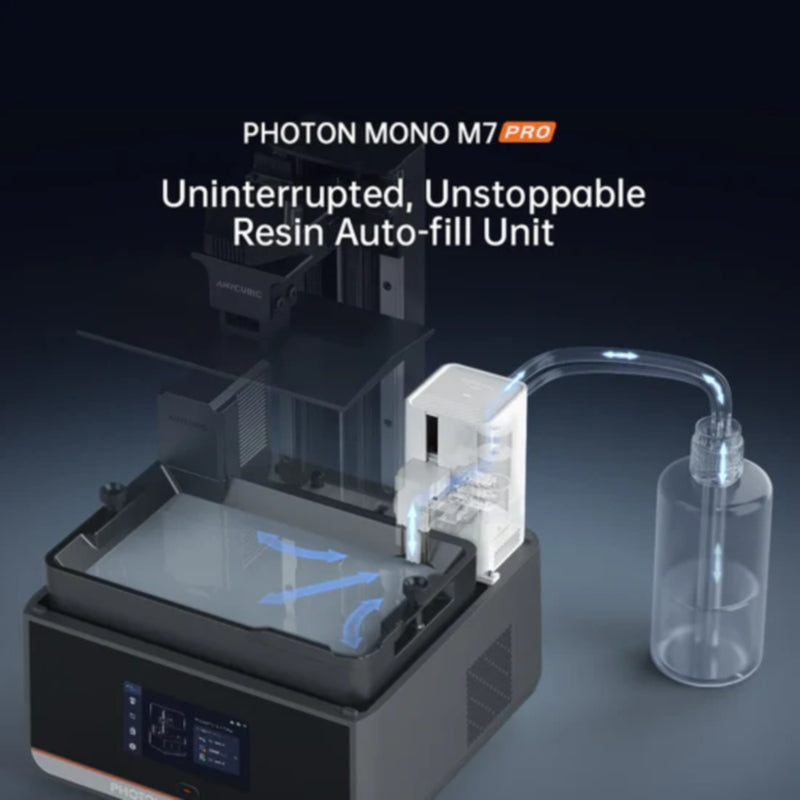

• Automatic Resin Management: Auto-refill and recycling functions save material and maintain print stability.

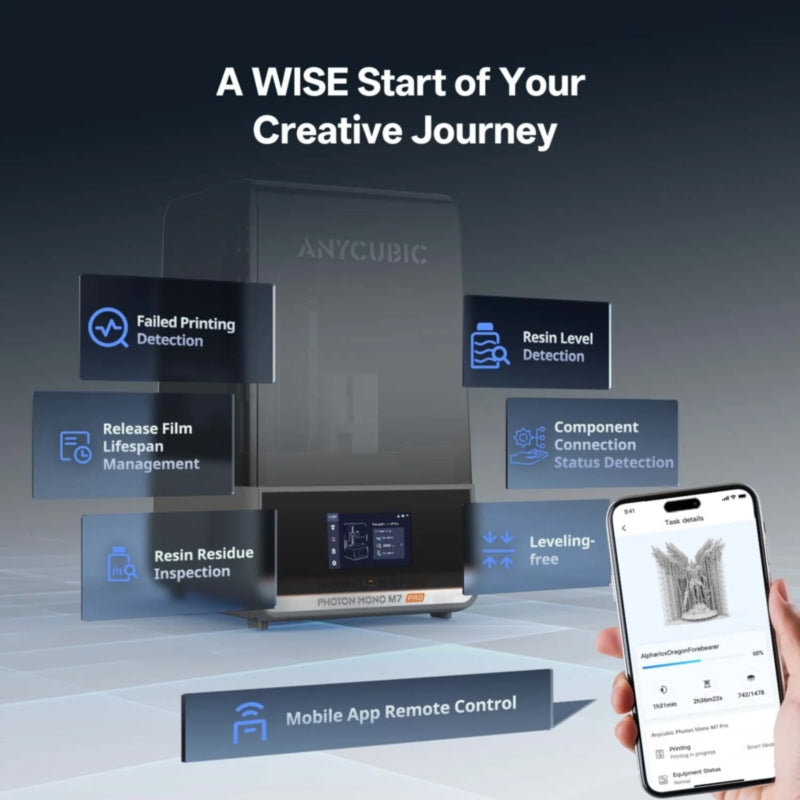

• Smart Detection Suite: Identifies failed prints, resin residue, and manages release film lifespan for longer tool life.
• Enhanced Connectivity: Supports USB, Wi-Fi, and LAN file transfer with Photon Workshop software compatibility.
• Efficient Power Use: 100W rated power enables high performance with low energy consumption.
• Robust Build Quality: Dual linear rails and laser-engraved platform enhance accuracy and mechanical stability.
• Wide Resin Compatibility: Supports high-speed, standard, water-washable, ABS-like, and plant-based resins.

Specifications:

Code: ANY031
3D Printer Type: LCD-based UV SLA
Interface: 4.3-inch IPS Touch-Control
Software: Photon Workshop
Connectivity: USB, Wi-Fi, LAN
Machine Levelling: Levelling-Free
Light Source: LightTurbo 3.0 (COB + Fresnel Lens)
XY Resolution: 16.8μm × 24.8μm (13,320 × 5,120 pixels, 14K)
Z-Axis Resolution: 0.01mm
Layer Resolution: 0.01–0.15mm
Printing Speed: 130mm/h (Standard Resin, 0.1mm Layer); 170mm/h (High-Speed Resin, 0.1mm Layer); 190mm/h (High-Speed Resin, 0.15mm Layer); 220mm/h (High-Speed Resin, 0.2mm Layer)
Rated Power: 100W

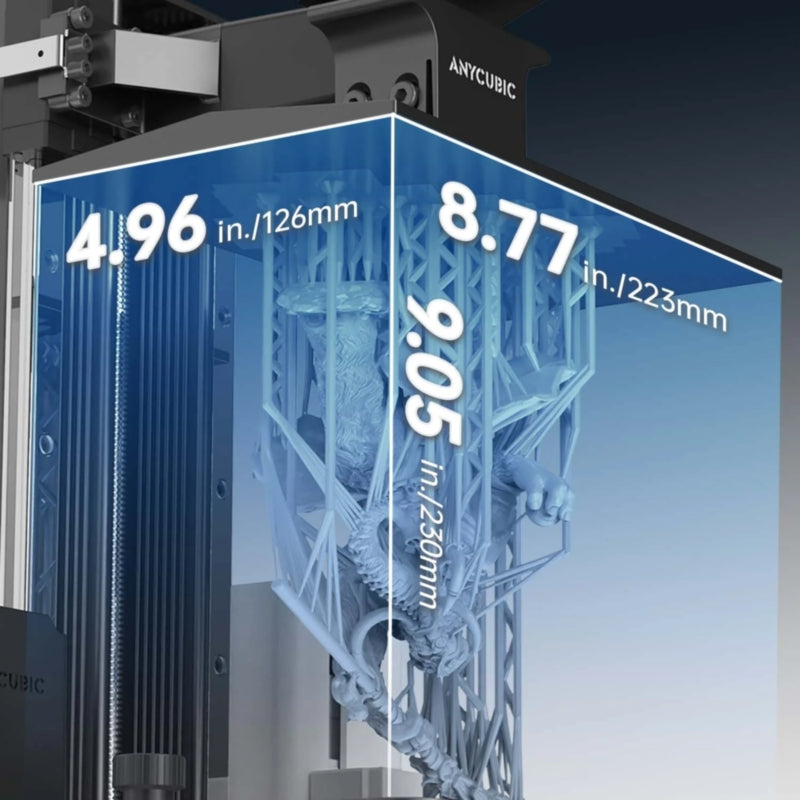

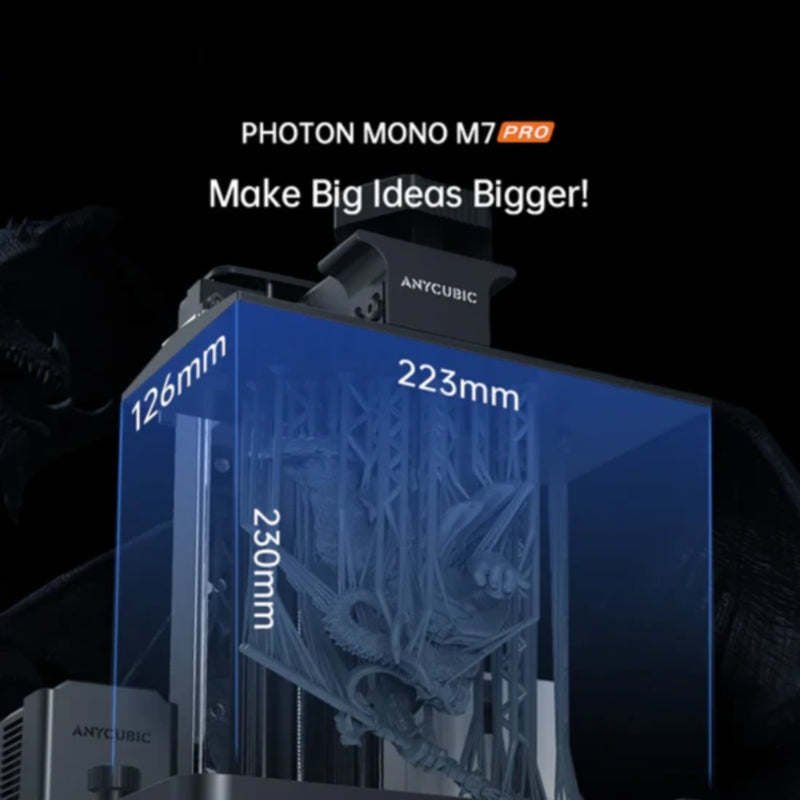

Build Volume: 126mm (D) × 223mm (W) × 230mm (H)
Printing Volume: 6.5L
Light Intensity: 5500 ±10% μW/cm²
Material Compatibility: High-speed, water-washable, standard, ABS-like, and plant-based resins
Build Platform: Laser-engraved aluminium alloy
Z Axis: Dual linear rails, 10μm precision
Resin Vat Capacity: ≤1L
Machine Leveling: Levelling-Free
Resin Auto-Fill Unit: Supported
Dynamic Temperature Control: Supported
Light Source System: COB + Fresnel Lens + Uniformity Algorithm
Protection Film: Replaceable Scratch-Resistant Film
Power Supply: 240W
File Transfer: USB, Wi-Fi, LAN
Operating Screen: 4.3-inch Touch-Control
LCD Screen: 10.1-inch Monochrome LCD, 14K Resolution
Supported Languages: English, Chinese, German, French, Italian, Spanish, Russian, Japanese
Compatible Software: Photon Workshop, Chitubox, LycheeSlicer
Machine Dimensions: 312mm (D) × 315mm (W) × 520mm (H)
Packaging Dimensions: 620mm (L) × 395mm (W) × 395mm (H)
Machine Weight: 12.8kg
Package Weight: 15.2kg
Resin Type: 405nm UV Resin
Core Function: High-Precision Resin 3D Printing with Intelligent Automation

Scope of Delivery:

• 1 x Anycubic Photon Mono M7 Pro 3D Printer
• 1 x Print Platform
• 1 x Resin Vat
• 1 x Wi-Fi Antenna
• 1 x Hex Key Set
• 1 x Protective Equipment
• 5 x Filters
• 2 x Scrapers
• 1 x Leveling Paper
• 1 x USB Drive
• 1 x Power Cord
• 1 x Screen Protector Kit
• 1 x Auto-Fill Unit
• 1 x User Manual

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
