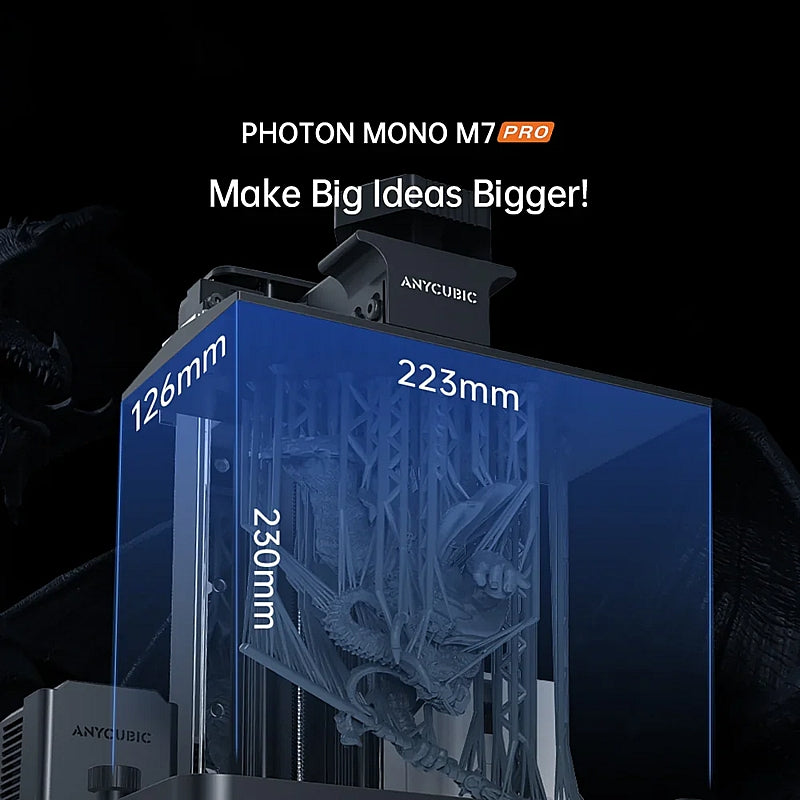

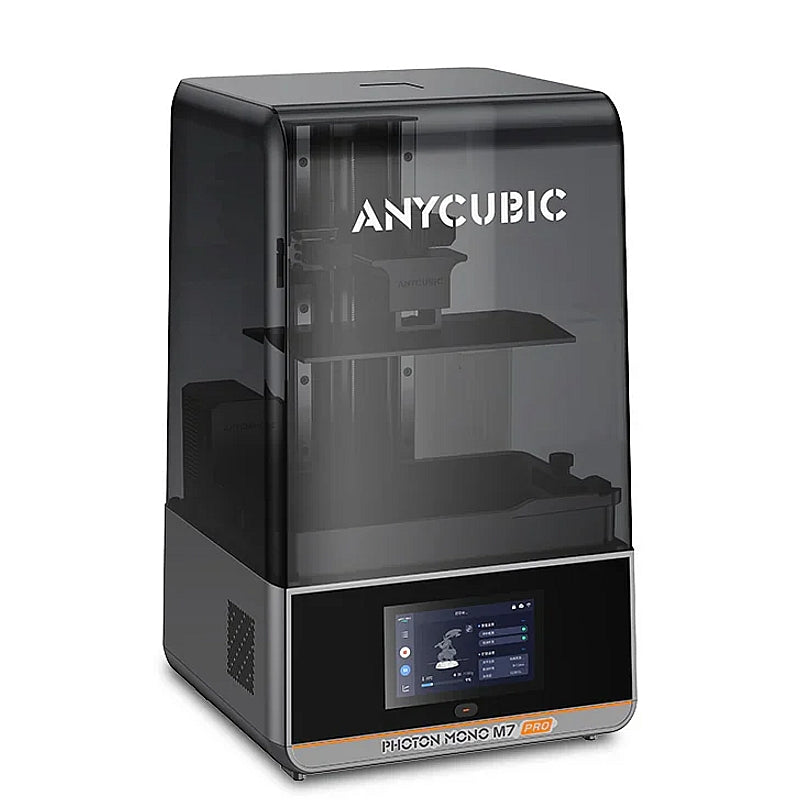

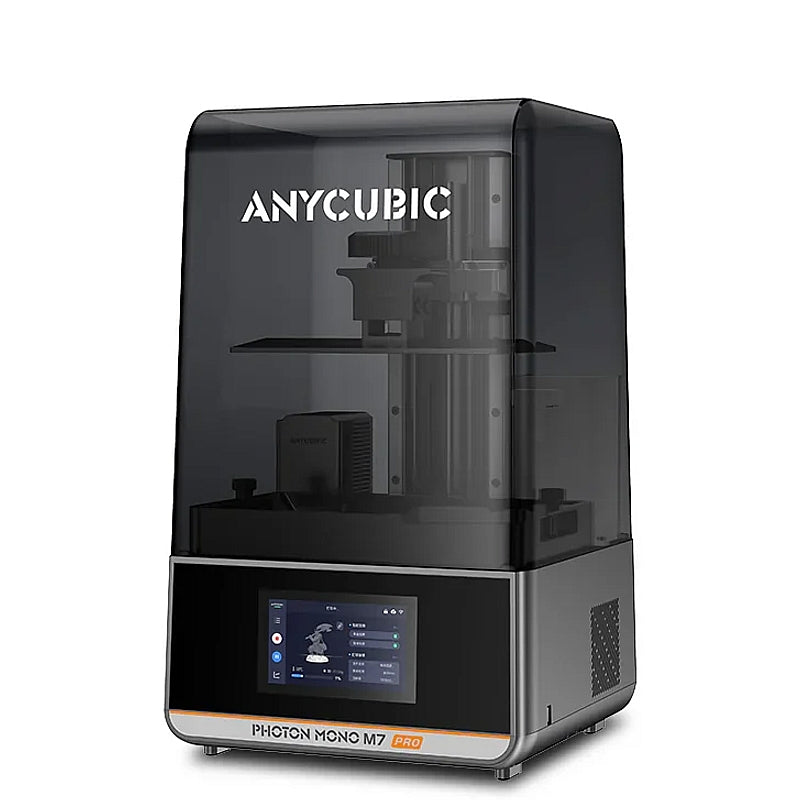

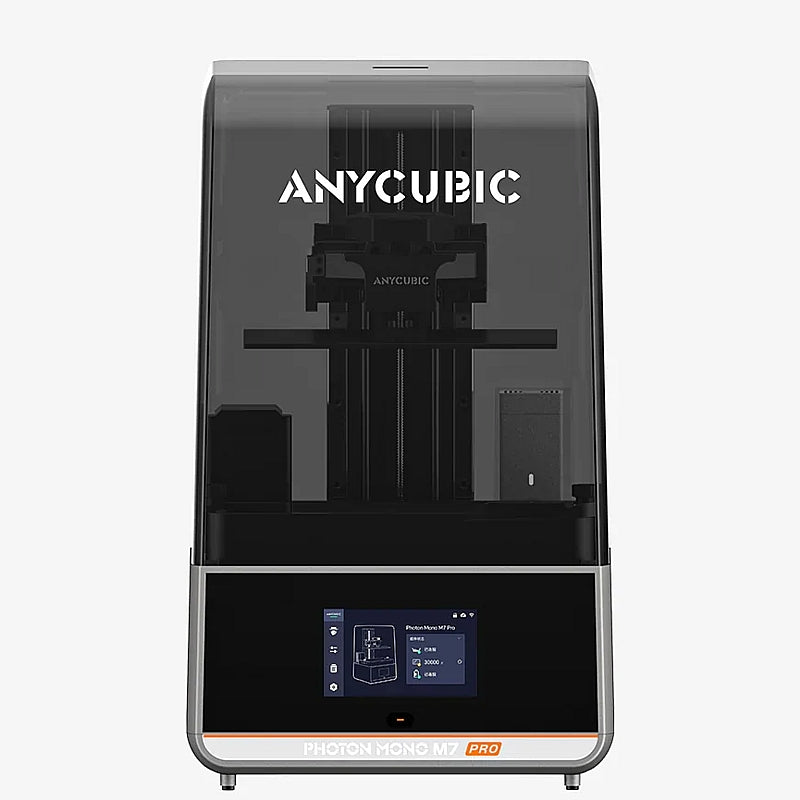

The Anycubic Photon Mono M7 Pro is an advanced MSLA resin 3D printer designed for applications where fine detail, printing speed and workflow automation are important. Its 10.1" (256.5mm) 14K monochrome LCD provides a resolution of 13,320 x 5,120 pixels and an XY resolution of 16.8 x 24.8µm, allowing the printer to reproduce fine surface details, lettering, sharp edges and intricate model features. With a 223 x 126 x 230mm build volume, it also provides useful capacity for individual detailed models or batches of smaller components.
The LighTurbo 3.0 light engine combines a COB array with a Fresnel lens to deliver a specified light intensity of 5500 ±10% µW/cm² and light uniformity of at least 90% across the screen. As a result, the system provides consistent exposure across the build area. Printing speeds reach up to 170mm/h when using high-speed resin, while standard resin can reach up to 130mm/h at a 0.1mm layer height. A selectable layer height range of 0.01-0.15mm provides additional flexibility when balancing fine detail against printing speed.
Beyond print quality and speed, the Photon Mono M7 Pro incorporates automated features designed to simplify the resin printing workflow. Its levelling-free system eliminates the need for routine manual bed levelling, while the laser-engraved build plate supports the printing process. The resin vat features dynamic temperature control from 20°C to 40°C, helping maintain resin viscosity and consistent printing conditions. An automatic resin management system can refill and recycle resin, while resin level detection monitors the available material.
The printer also monitors the printing process for anomalies and can stop operation when a failed print is detected rather than continuing an unsuccessful job. In addition, the replaceable ACF release film includes lifespan tracking. A dual linear rail Z-axis with 10µm specified mechanical precision provides stable vertical movement, while a 4.3" (109.2mm) touchscreen provides access to printer controls.
The 10.1" (256.5mm) monochrome LCD features a 14K resolution of 13,320 x 5,120 pixels and an XY resolution of 16.8 x 24.8µm. This high pixel density supports applications requiring very fine details, including miniature figures, jewellery patterns, dental models and precision prototypes.
The LighTurbo 3.0 system combines a COB light source with a Fresnel lens. It provides a specified light intensity of 5500 ±10% µW/cm² together with at least 90% light uniformity across the screen, supporting consistent exposure throughout the available build area.
When paired with high-speed resin, the Photon Mono M7 Pro can achieve printing speeds of up to 170mm/h. With standard resin at a 0.1mm layer height, the specified maximum printing speed is 130mm/h. Therefore, users can select resin and printing settings according to the required balance between production speed and model requirements.

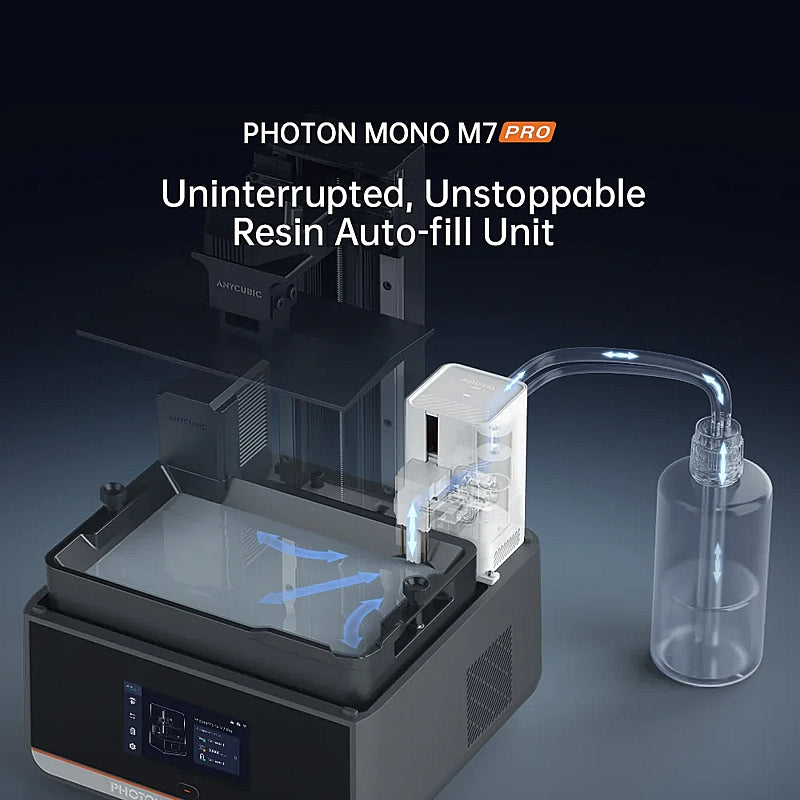

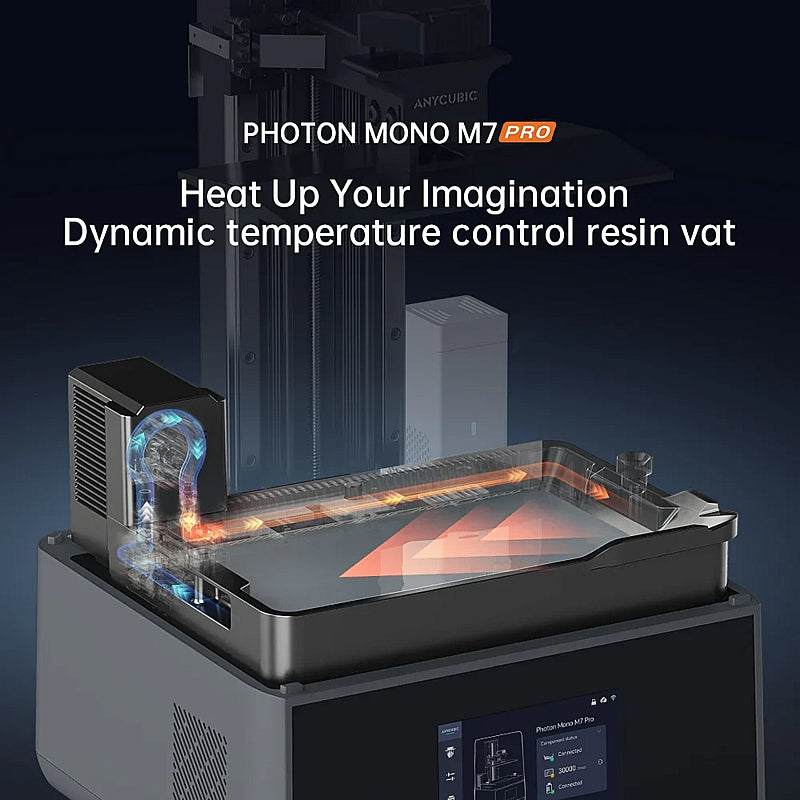

The integrated resin management system provides automatic resin filling and recycling, while resin level detection helps monitor material availability. In addition, the resin vat supports dynamic temperature control from 20°C to 40°C. Maintaining a controlled resin temperature helps keep viscosity more consistent during printing.

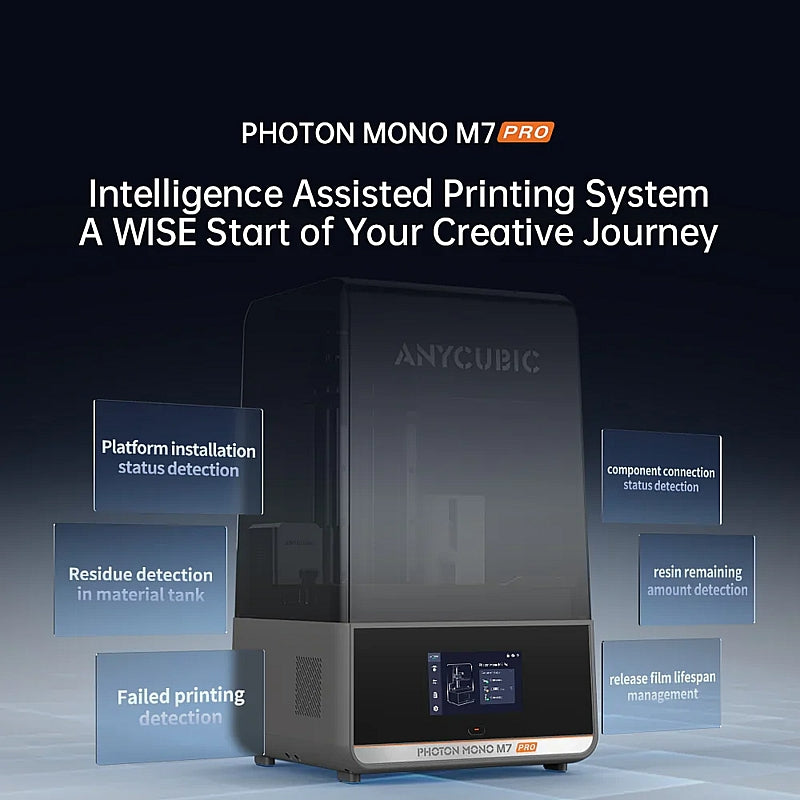

The Photon Mono M7 Pro includes failed-print anomaly detection and can automatically stop the printing process when an anomaly is detected. The printer also monitors the resin level and tracks the lifespan of the replaceable ACF release film, providing additional information for managing the printing process and routine maintenance.
The Photon Mono M7 Pro combines 14K resolution, a 223 x 126 x 230mm build volume, high-speed printing and automated resin management. The comparison below highlights the supplied differences between the Photon Mono M7 Pro, Photon P1, Photon Mono M7 Max and Photon Mono M5s Pro.
| Specification | Photon Mono M7 Pro | Photon P1 | Photon Mono M7 Max | Photon Mono M5s Pro |
|---|---|---|---|---|
| LCD Resolution | 14K, 10.1" (256.5mm) | 14K, 10.1" (256.5mm) | 7K, 13.6" (345.4mm) | 14K, 10.1" (256.5mm) |
| Build Volume | 223 x 126 x 230mm | 223 x 126 x 230mm | 298 x 164 x 300mm | 200 x 126 x 224mm |
| Top Speed | 170mm/h | Not published | 86mm/h | 105mm/h |
| Auto-Levelling | Yes, levelling-free | Yes, Auto-Levelling 3.0 | Yes, levelling-free | Yes |
| Resin Handling | Heated vat, auto-fill and recycling | Heated vat, up to 8000cps viscosity, dual-vat option | Auto-fill and recycling | Standard vat |
| Smart Features | Anomaly detection and resin level tracking | AI resin monitoring and residue detection | Anomaly detection and resin level tracking | Basic monitoring |
| Rated Power | 240W | Not published | 180W | 110W |
| Connectivity | Wi-Fi, LAN and USB | Wi-Fi, LAN and USB | Wi-Fi, LAN and USB | Wi-Fi, LAN and USB |
| Application Focus | All-round detail work, jewellery and miniatures | High-viscosity and dual-material work | Larger batches and bigger props | Detail printing |
The Photon Mono M7 Pro combines a 14K 10.1" (256.5mm) LCD with a 223 x 126 x 230mm build volume, printing speeds of up to 170mm/h, a heated resin vat, automatic resin filling and recycling, and intelligent monitoring features. For applications involving higher-viscosity engineering resins or dual-material workflows, the Photon P1 provides support for up to 8000cps viscosity and offers a dual-vat option. The Photon Mono M7 Max provides the largest build volume in this comparison at 298 x 164 x 300mm, making it suited to larger models and batch printing, while the Photon Mono M5s Pro combines a 14K 10.1" (256.5mm) LCD with a smaller 200 x 126 x 224mm build volume.
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
