Axminster AW1950B Floor-Standing Workshop Bandsaw 230V | 026107711

Axminster AW1950B Floor-Standing Workshop Bandsaw 230V | 026107711.

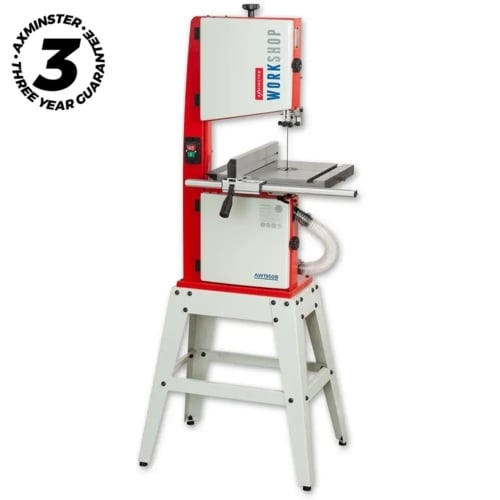

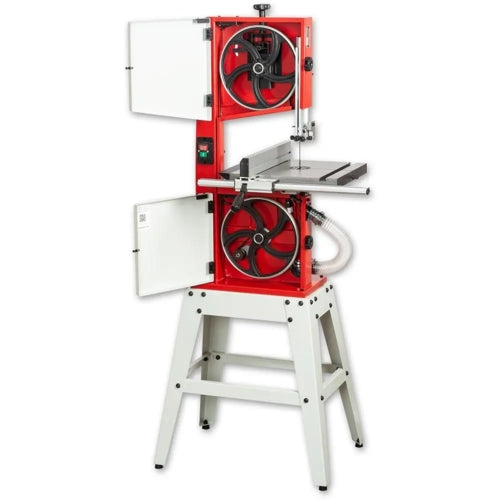

The Axminster AW1950B is a compact yet highly capable floor-standing bandsaw, thoughtfully designed with an array of features often reserved for larger machines. Built with a rigid, welded and braced steel frame, it ensures reliable performance and stability throughout demanding tasks. A generous 135mm depth of cut and 260mm width capacity allow the AW1950B to handle a wide variety of cutting requirements with ease.

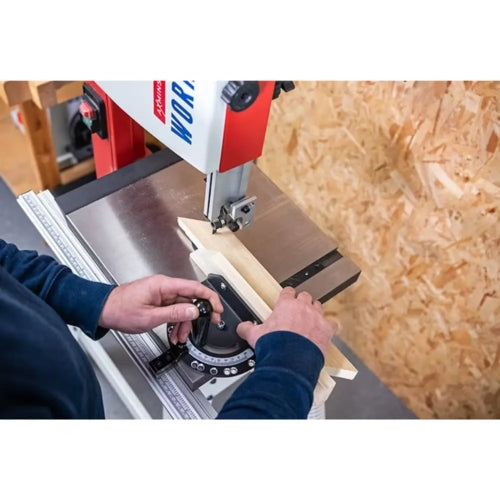

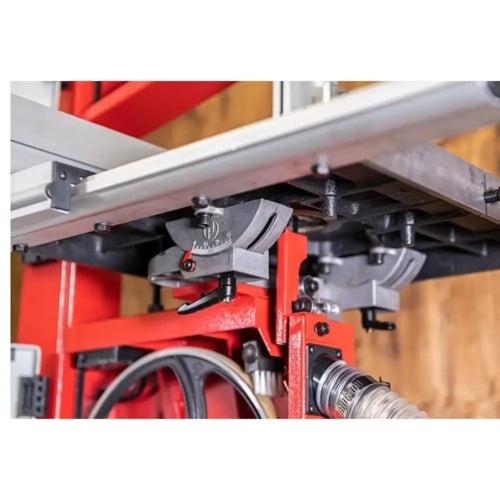

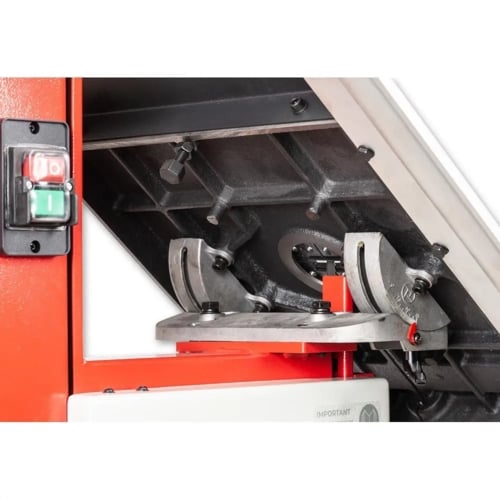

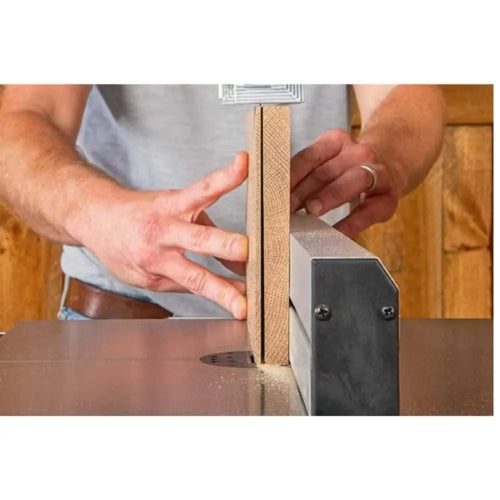

Furthermore, the cast iron table—supported by widely spaced trunnions and a steel plate rear extension—offers both durability and smooth tilt operation. A 19mm (3/4″) mitre fence slot is provided for added versatility. The rip fence cam-locks securely to the front rail and includes twin scales, enabling accurate use on either side of the blade.

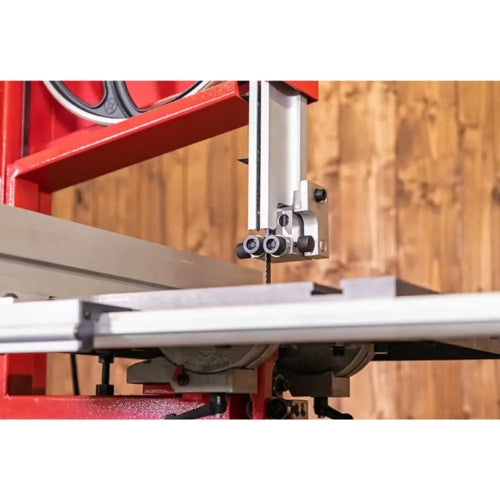

For enhanced precision, the bandsaw incorporates ball bearing side and thrust guides that stay securely set unless the blade width is changed. Additionally, a rack and pinion mechanism adjusts the upper blade guide height effortlessly.

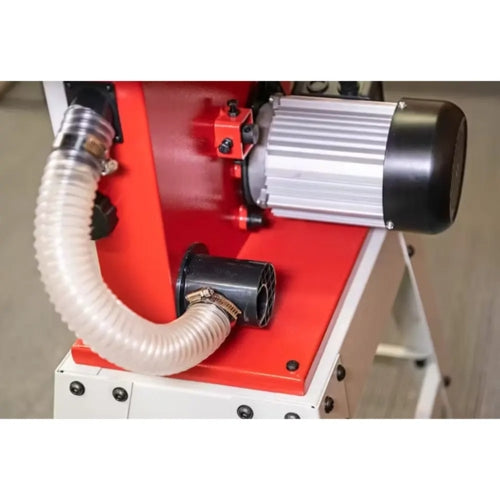

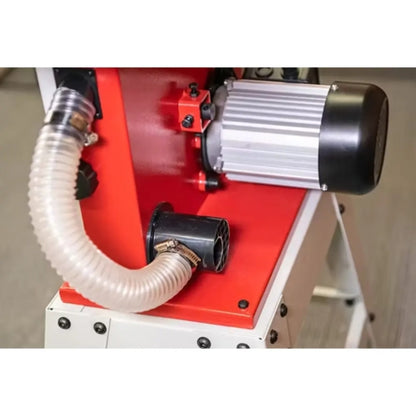

Efficient dust extraction is achieved via a dual-port system—one near the bottom guides and one in the lower wheel cabinet—connected through an interlinking hose to a single 63mm port. The twin blade speeds of 660 and 840 m/min cater to various materials and cutting needs. Powered by a quiet and dependable 550W induction motor with a multi V belt, the AW1950B ensures smooth and consistent operation.

Supplied complete with a steel leg stand and UK-made 10mm x 6 TPI Skip Tooth blade, the AW1950B is a reliable solution for the home workshop or garden shed environment.

Features & Benefits:

• Compact & Capable: Offers a 135mm depth and 260mm width of cut within a space-saving design.
• Rigid Construction: Welded and braced steel frame provides high blade tension and consistent accuracy.
• Large Cast Iron Table: Enhanced support with rear steel extension and smooth tilting action.
• Accurate Fence System: Cam-lock rip fence with twin measurement scales allows precise positioning.
• Reliable Blade Guidance: Ball bearing side and thrust guides maintain consistent tracking during use.
• Dual Speed Operation: Blade speeds of 660 and 840 m/min increase application flexibility.
• Efficient Dust Control: Integrated dual-port dust extraction via a single 63mm outlet.
• Stable Stand: Includes steel leg stand with rubber feet for additional stability.
• UK-Made Blade Included: Comes supplied with a 10mm x 6 TPI Skip Tooth blade.

Specifications:

Bandsaw Blade Length: 1,950 mm (77″)
Bandsaw Wheel Diameter: 270 mm
Blade Speed: 660 & 840 m/min
Blade Width MinMax: 6 mm to 13 mm
Dust Extraction Outlet: 63 mm
EAN Barcode: 5052511124541
Max Cutting Height: 135 mm
Max Width of Cut: 260 mm
Max Width of Cut with Fence: 185 mm
Min Extraction Airflow Required: 390 m³/hr
Model: AW1950B
Nett Weight: 39 kg
Overall L x W x H: 790 mm x 620 mm x 1,570 mm
Power: 550 W
Rating: Home Workshop
Sound Power Level LwA [Uncertainty K]: 90 dB(A) [1.5 dB]
Sound Pressure Level LpA [Uncertainty K]: 82.2 dB(A) [1.5 dB]
T Slot Size: 19 mm x 9.5 mm (3/4″ x 3/8″)
Table Height: 1,035 mm
Table Size: 350 mm x 330 mm
Table Tilt: 0° – 45°
Voltage: 230 V

Scope of Delivery:

• Axminster AW1950B Floor-Standing Workshop Bandsaw 230V | 026107711
• Steel leg stand with rubber feet
• UK-made 10mm x 6 TPI Skip Tooth blade

Axminster 3 Year Guarantee:

Look for the icon:

• It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine:

• Covered by the Axminster 3 Year Guarantee, this product is designed for home workshop use with occasional continuous operation. Regular maintenance and annual servicing are required. The guarantee is void if used for industrial or production line applications.

Keep your receipt:

• No registration needed – your proof of purchase is sufficient.

Free parts & labour:

• We’re confident in the quality – that’s why all parts and labour are covered for three years.

Guarantee coverage includes:

• Correct usage in accordance with our product classification
• Proper operation and annual maintenance (proof may be required)

Guarantee does NOT cover:

• Commercial/industrial use outside of classification
• Consumables such as blades, belts, and abrasives
• Normal wear and tear, misuse, or neglect
• Operation with blunt or incorrect tooling
  Any modifications made to the machine

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
