Axminster Workshop Cyclone Interceptor (AW118CI) | 024105844

Axminster Workshop Cyclone Interceptor (AW118CI) | 024105844

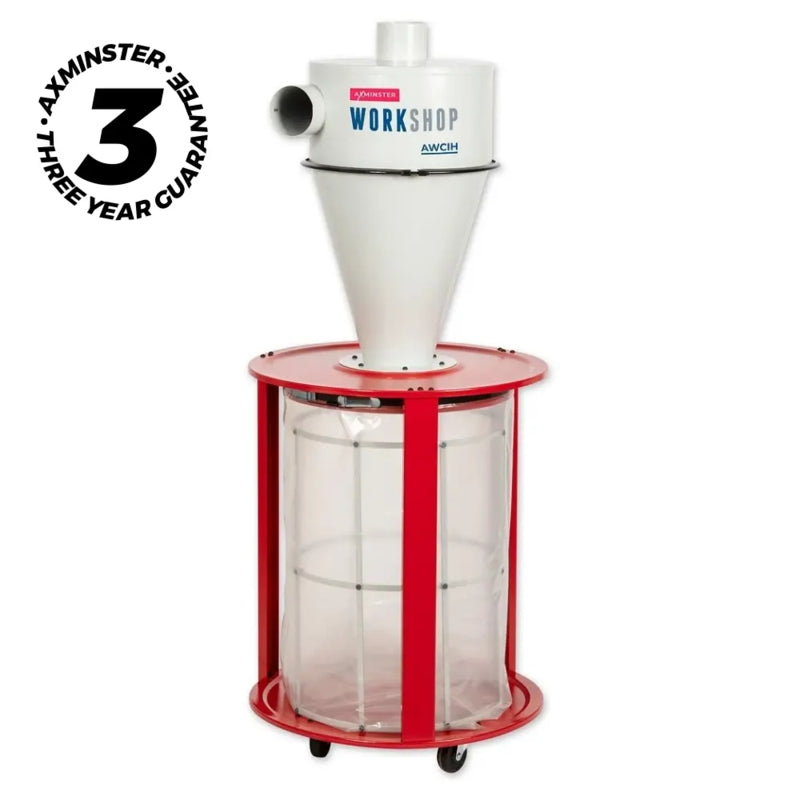

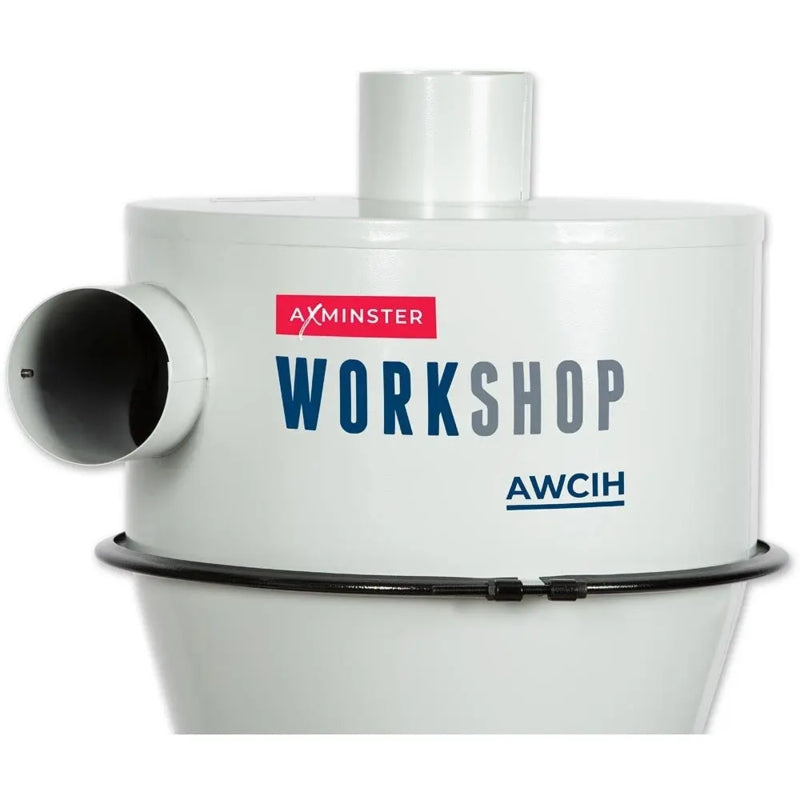

The Axminster Workshop AW118CI is a stand-alone, unpowered cyclone dust collector/interceptor designed to improve workshop dust management. It utilises the cyclone body and waste bin from the Craft AC118CE Cyclone Dust Extractor, providing reliable separation of wood waste from the airflow.

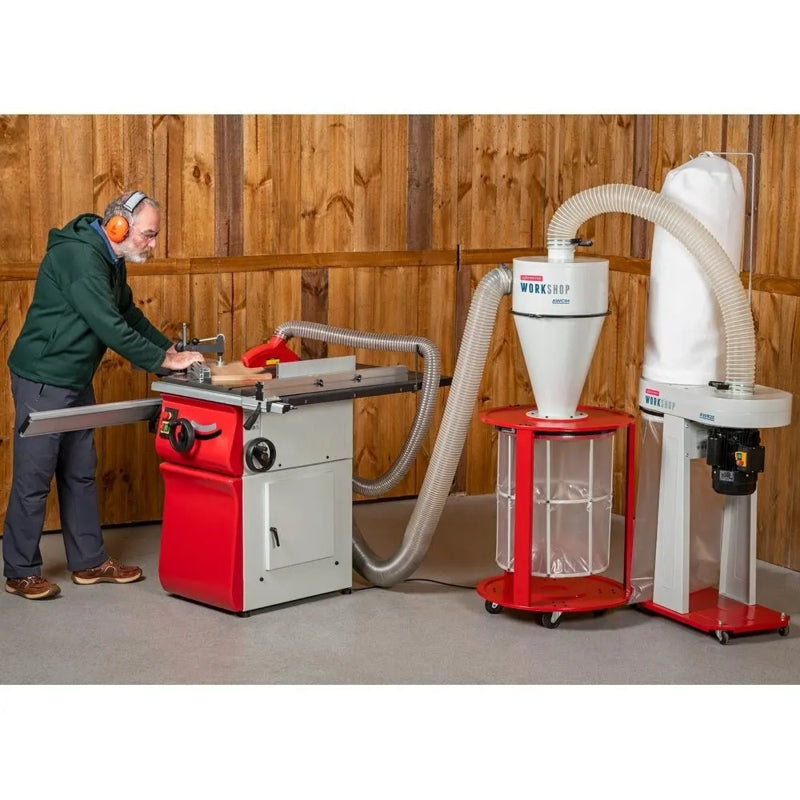

When paired with a High Volume Low Pressure chip extractor, this unit is capable of handling even fine dusts from demanding machines such as drum sanders. It can be used to upgrade an existing bag filter extraction system or placed directly next to a sander to intercept fine dust before it reaches the extractor.

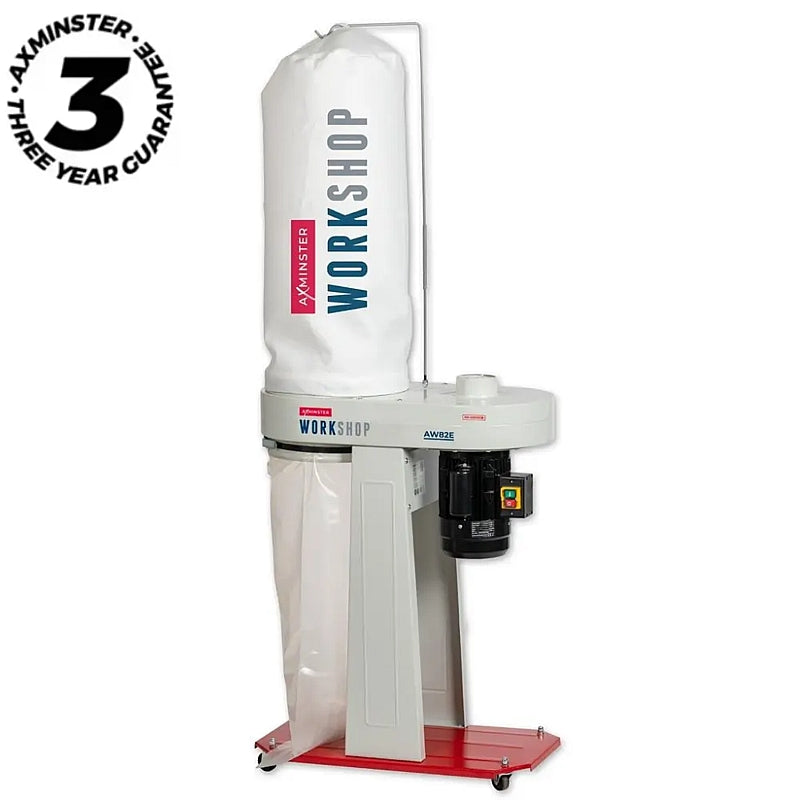

With a generous 118L waste bin and castors, the AW118CI offers easy mobility and extended use between emptying cycles. It is fitted with 100mm inlet and outlet ports, compatible with many common woodworking machines. For best results, we recommend pairing it with a chip extractor of at least 1.5hp, such as the AW82E model. Please note, this cyclone is not suitable for use with High Pressure Low Volume (vacuum) type extractors and requires dust bags sized 785mm x 940mm.

Features & Benefits:

• Efficient Dust Separation: Separates wood waste and fine dust from the airflow before reaching the extractor.
• Unpowered Design: Operates as an interceptor when connected to a standard HVLP chip extractor.
• Large Waste Capacity: Generous 118L waste bin reduces the need for frequent emptying.
• Mobility: Fitted with castors for easy movement around the workshop.
• Wide Compatibility: 100mm inlet and outlet ports suit a range of woodworking machines.
• Upgrade Option: Improves the performance of existing bag filter systems.

Specifications:

• Model: AW118CI
• Code: 024105844
• Container Volume: 118L
• Hose Diameter: 100mm
• Overall Dimensions (L x W x H): 1,450mm x 726mm x 730mm
• Nett Weight: 21kg
• Rating: Home/Light Trade

Scope of Delivery:

• 1 x Axminster Workshop Cyclone Interceptor (AW118CI) | 024105844

Axminster 3 Year Guarantee:

Look for the icon: It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine: Covered by the Axminster 3 Year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. It must be regularly maintained and serviced annually. The guarantee is void when used for industrial use or as part of a production line.

Keep your receipt: You don’t need to register your new machine to benefit – just keep your proof of purchase.

Free parts & labour: We are so confident in the quality that we cover all parts and labour free of charge for three years.

The 3 Year Guarantee covers parts and labour provided:

• You have purchased the correct product for your intended purpose in accordance with our classification.
• The product is operated correctly.
• You have maintained and serviced the product in accordance with the instructions (proof may be required).

The Guarantee does NOT cover:

• Products purchased for use outside our classification advice e.g. Workshop product used for business purposes.
• Consumable items e.g., original blades, knives, drive belts, or abrasives.
• Issues identified due to normal wear and tear, misuse, and neglect.
• The product has been operated with blunt/incorrect tooling.
• The product has been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
