Axminster Workshop Table Saw 254mm, 1.5kW (AW254TS) | 026111810

Axminster Workshop Table Saw 254mm, 1.5kW (AW254TS) | 026111810.

The AW254TS Table Saw combines professional cutting capacity with features designed for home workshops. Powered by a quiet 1.5kW induction motor, it provides reliability and reduced noise levels, making it suitable for residential settings. The cast iron table features 19mm (3/4″) T-slots on both sides of the blade, ensuring smooth workpiece movement. A 254mm Axcaliber Premium 40-tooth blade achieves a maximum cutting depth of 80mm at 90° for accurate results.

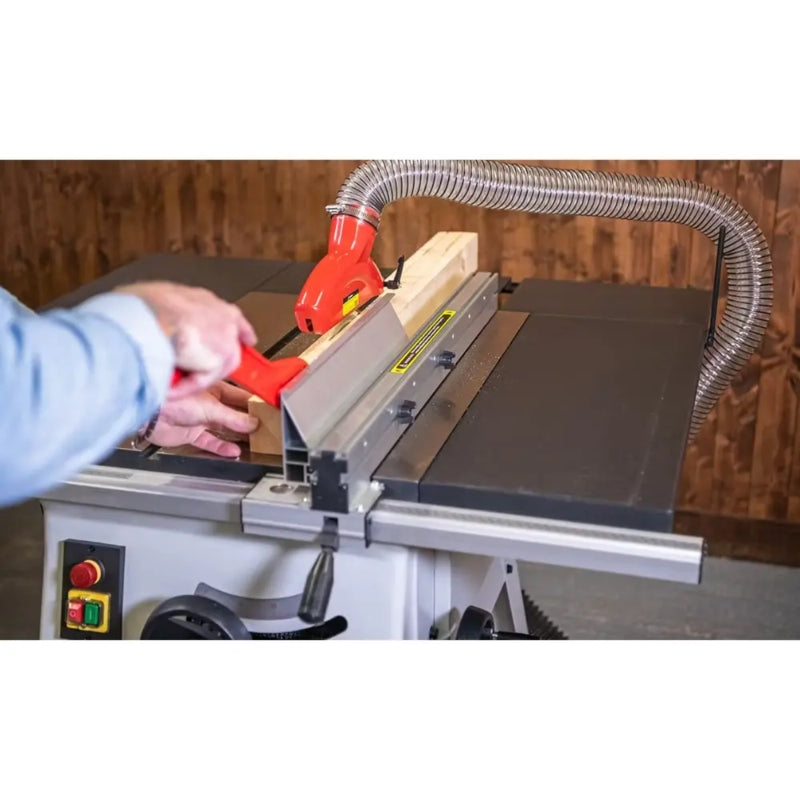

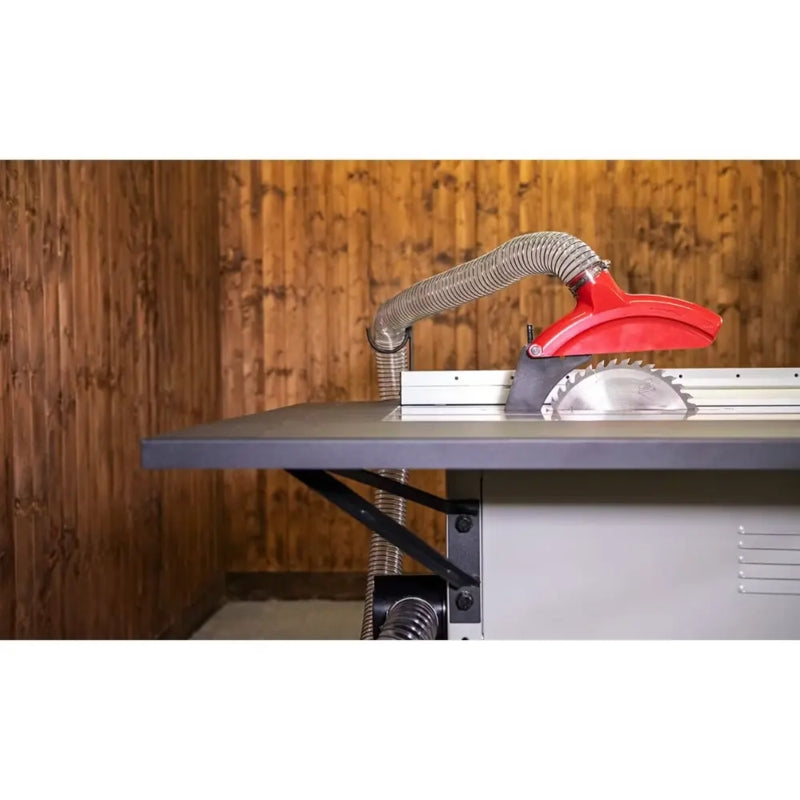

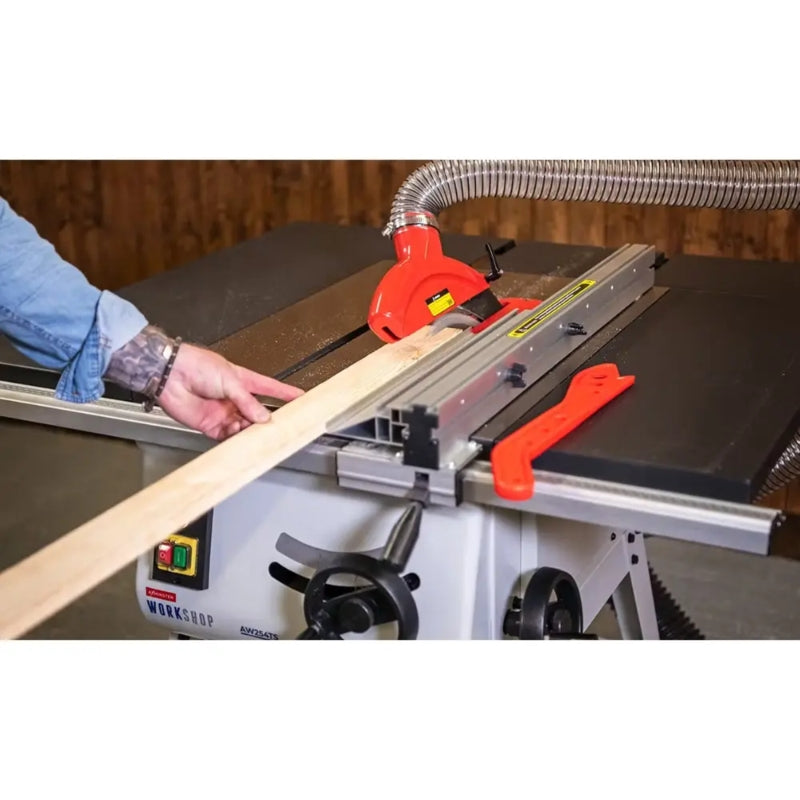

The full-length rip fence includes a sliding sub fence with high/low functions, while the tilt and height adjustment mechanism is bolted to the chassis, offering smooth operation and avoiding stress on the table. The adjustments enable a wide range of cuts for different applications. Efficient dust collection from both above the blade and below the table is channelled to a single 100mm port for easy connection to an extractor.

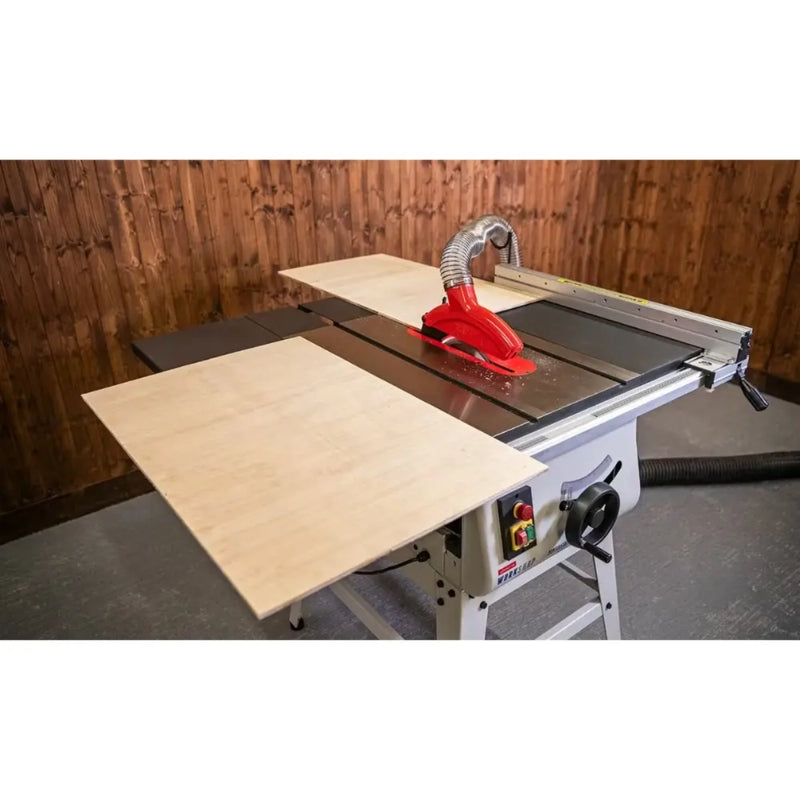

Supplied with left, right, and rear extension tables, the AW254TS extends total working width to 1,060mm, making it ideal for larger sheet materials. The stand features a splayed leg design with powder-coated steel legs and braces for stability, while rubber feet prevent movement. An NVR switch with a locking Emergency Stop provides added safety, and removable side panels allow for straightforward maintenance.

Features & Benefits:

• Large Cutting Capacity: 80mm at 90° and 56mm at 45°, suitable for a wide range of tasks.
• Powerful Induction Motor: Quiet 1.5kW motor ensures efficient performance in home workshops.
• Stable Design: Splayed leg stand with powder-coated steel for durability and vibration reduction.

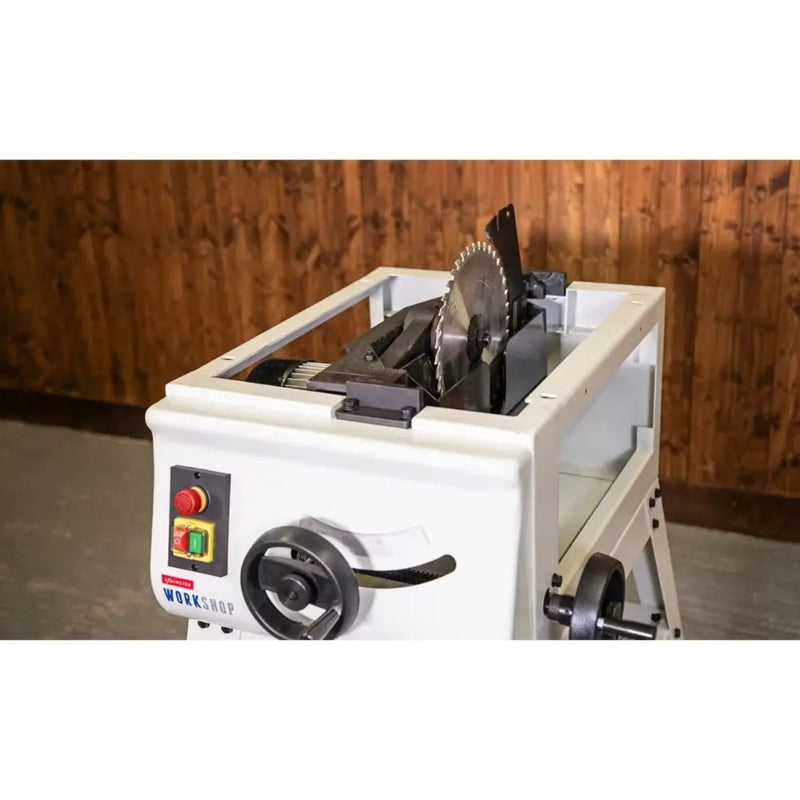

• Smooth Adjustments: Tilt and height mechanism bolted to chassis for precise operation.
• Dust Extraction: Combined 100mm outlet for efficient removal of dust and debris.
• Extension Tables: Left, right, and rear extensions increase table width to 1,060mm for larger projects.
• Axminster 3 Year Guarantee: Comprehensive free parts and labour cover, provided correct use and maintenance.

Specifications:

Model: AW254TS
Code: 026111810
EAN Barcode: 5052511135820
Blade Diameter: 254 mm
Blade Bore Size: 30 mm
Blade RPM: 3,000 rpm
Blade Tilt: 0° to 45°
Max Depth of Cut @ 90°: 80 mm
Max Depth of Cut @ 45°: 56 mm
Max Width of Cut with Fence: 430 mm with R/H Extension
T-Slot Size: 19 mm x 9.5 mm (3/4″ x 3/8″)
Table Size: 485 mm x 680 mm
Table Size with Extensions: 1,060 mm x 900 mm
Table Height: 900 mm
Overall Dimensions (L x W x H): 1,070 mm x 1,230 mm x 1,200 mm
Dust Extraction Outlet: 100 mm & 63 mm
Minimum Extraction Airflow Required: 1,000 m³/hr
Power: 1.5 kW
Voltage: 230 V
Nett Weight: 109 kg
Sound Power Level LwA [K]: 94 dB(A) [3.0 dB]
Sound Pressure Level LpA [K]: 78 dB(A) [3.0 dB]
Rating: Home Workshop
Warranty: Axminster 3 Year Guarantee

Scope of Delivery:

• 1 x Axminster Workshop Table Saw 254mm, 1.5kW (AW254TS) | 026111810
• 1 x Axcaliber Premium 254mm 40T Blade
• 1 x Full-Length Rip Fence with Sliding Sub Fence
• 1 x Left Extension Table
• 1 x Right Extension Table
• 1 x Rear Extension Table
• 1 x Splayed Leg Stand with Rubber Feet

Axminster 3 Year Guarantee:

Look for the icon: It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine: Covered by the Axminster 3 Year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. It must be regularly maintained and serviced annually. The guarantee is void when used for industrial use or as part of a production line.

Keep your receipt: You don’t need to register your new machine to benefit – just keep your proof of purchase.

Free parts & labour: We are so confident in the quality that we cover all parts and labour free of charge for three years.

The 3 Year Guarantee covers parts and labour provided:

• You have purchased the correct product for your intended purpose in accordance with our classification.
• The product is operated correctly.
• You have maintained and serviced the product in accordance with the instructions (proof may be required).

The Guarantee does NOT cover:

• Products purchased for use outside our classification advice e.g. Workshop product used for business purposes.
• Consumable items e.g., original blades, knives, drive belts, or abrasives.
• Issues identified due to normal wear and tear, misuse, and neglect.
• The product has been operated with blunt/incorrect tooling.
• The product has been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
