CNC BASIX - Ball Screw CNC Machines with Arduino Controllers.

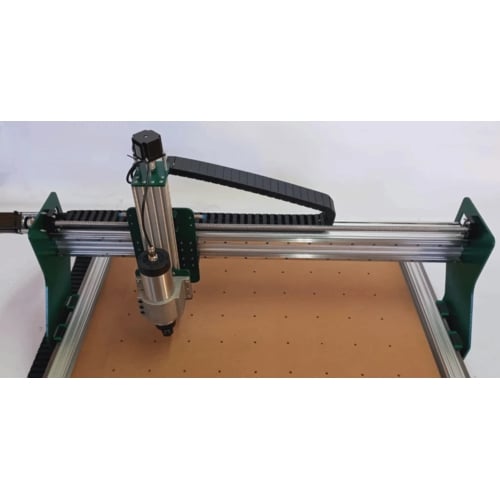

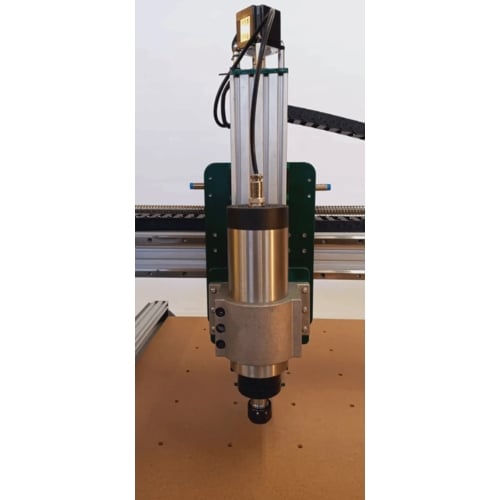

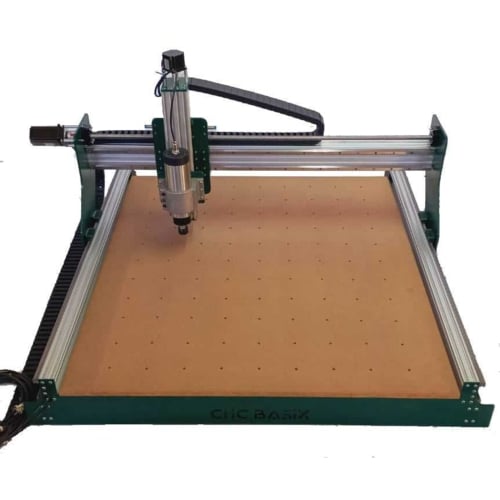

The CNC BASIX - Ball Screw CNC Machine with Arduino Controller is part of our production range, designed to handle high workloads with precision and efficiency. Whether cutting aluminium, perspex, or wood, this machine is built for long operational hours without compromising on accuracy.

Equipped with HGR15 linear rails and SFU2010 ball screws on the X and Y axes, the machine ensures smooth, stable, and precise movement. The Z-axis operates with a T8 lead screw and HGR15 linear rails, further enhancing cutting accuracy.

Driven by an Arduino-controlled closed-loop stepper motor system, this CNC machine delivers consistent performance. It also includes a Makita RT0700C 700W Router with a 12,000 to 30,000 RPM manual speed control, providing flexibility for different materials and applications. The maximum feed rate reaches 1,000 mm/min, while the maximum jog rate is 2,000 mm/min, ensuring efficient operation.

Users can further customise their machine with a range of optional upgrades, such as 1.5kW, 2.2kW, or 3kW spindle kits, including water-cooled and air-cooled options, as well as a 3kW automatic tool changer.

Features & Benefits:

• High-Workload Capability: Designed for extended cutting hours with high accuracy.
• Rigid Construction: Aluminium frame with 3mm steel front and back panels for durability.
• Precision Ball Screw Drive: HGR15 linear rails and SFU2010 ball screws on X & Y axes.
• Pass-Through Cutting: Open-ended design allows processing of longer materials.
• Makita RT0700C Router: 700W power, 12,000 - 30,000 RPM manual speed control.
• Maximum Cutting Depth: 50mm (depending on cutting bit used).
• Customisation Options: Upgradeable spindle kits (1.5kW - 3kW) and automatic tool changer.
• Complete Cable Management: Cable drag chains for clean and organised operation.
• Includes Accessories: 5 cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm) and collets (3mm, 6mm).
• MDF Wasteboard & Fastening Clamps: Provides a stable work surface for secure cutting.

Machine Footprint & Work Area:

1.0M x 1.0M *Footprint | *Work Area: 985mm x 1020mm | 740mm x 740mm x 100mm
1.5M x 1.5M *Footprint | *Work Area: 1520mm x 1480mm | 1240mm x 1240mm x 100mm
1.5M x 2.0M *Footprint | *Work Area: 1520mm x 1985mm | 1240mm x 1740mm x 100mm
1.5M x 3.0M *Footprint | *Work Area: 1520mm x 2985mm | 1240mm x 2740mm x 100mm
2.0M x 3.0M *Footprint | *Work Area: 2020mm x 2985mm | 1740mm x 2740mm x 100mm

*Footprint: At the base, stock size measured from the base.
*Work Area: Stock size.

Requirements:

• Personal computer or laptop running Windows 7, 8, or 10.
• USB port on computer.
• Open Builds Operating Software (included).
• Easel 30-Day Free Trial - Online Cloud-Based App used for designing and cutting process.

Alternative Designing Software:

• Vectric: Basic training available at additional cost.
• Fusion 360: Basic training available at additional cost.

Mechanical Specifications:

Cutting Depth: Up to 50mm (depending on the bit used)
Drive System: HGR15 linear rails with SFU2010 ball screws (X & Y axes), T8 8mm lead screw on Z axis
Motors: 1x Nema 23 closed-loop stepper motor (2.2Nm), 3x Nema 34 closed-loop stepper motors (8.5Nm)
Resolution: Configured to less than 0.1mm
Maximum Jog Rate: 2,000 mm/min
Maximum Feed Rate: 1,000 mm/min
Router Compatibility: Makita RT0700C (65mm spindle mount)
Frame: Aluminium frame with 3mm steel front and back panels

Electronics Specifications:

Controller Board: 4-axis stepper motor driver
Power Supply: 24V 10A 250W
Power Input: 230V AC (power cable provided)
Emergency Stop: Included
USB Connection: USB cable provided
Accessories: All necessary fittings and cables

Delivery, Setup & Training:

• Compulsory delivery, setup, and minimal training of the machine available at additional cost.
• Delivery available within South Africa only.
• Delivery Time for Gauteng & Surrounding Provinces: 3-5 Weeks.
• Delivery Time for Northern, Eastern & Western Cape: 5-8 Weeks.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
