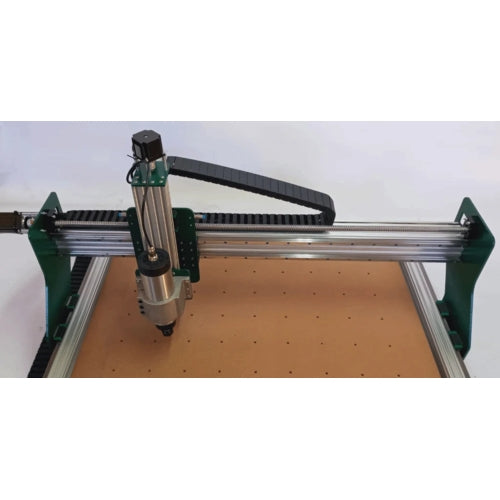

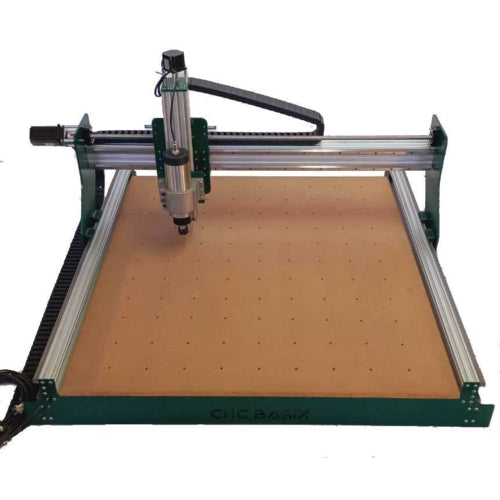

CNC BASIX - Ball Screw CNC Machines with DDCS Controllers.

The CNC BASIX - Ball Screw CNC Machine with DDCS Controller is designed for high workloads, delivering accuracy and reliability during extended cutting sessions. This machine is ideal for cutting a variety of materials, including aluminium, perspex, and wood, and is equipped with a powerful DDCS stand-alone controller that operates without the need for a computer connection. G-code files are run directly from a USB memory stick (included).

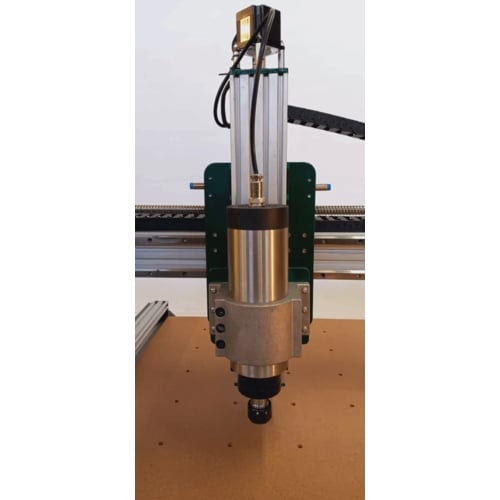

Built with a robust aluminium frame and steel front and back panels, this machine is highly durable. The X and Y axes feature HGR15 linear rails and SFU1605 ball screws for precise movement, while the Z-axis is managed by a T8 lead screw and HGR15 linear rails. The Makita RT0700C 700W router provides manual speed control from 12,000 RPM to 30,000 RPM, making it adaptable for different cutting needs. The machine offers a maximum feed rate of 1,000 mm/min and a maximum jog rate of 2,000 mm/min for efficient operation.

Additionally, the machine can be customized with various upgrades, including servo motors, spindle kits (1.5kW to 2.2kW, air-cooled or water-cooled), and lasers, enabling you to tailor the machine to your specific requirements.

Features & Benefits:

• High-Workload Capability: Ideal for extended cutting hours with consistent accuracy.
• Durable Construction: Aluminium frame and steel front and back panels ensure long-lasting performance.
• Precision Ball Screw Drive: HGR15 linear rails and SFU1605 ball screws on X & Y axes for smooth and precise movement.
• Stand-Alone Controller: DDCS 3.1 controller runs G-code directly from USB memory stick without a computer connection.
• Customisation Options: Offers upgradable servo motors, spindle kits (1.5kW to 2.2kW), and laser options.
• Maximum Cutting Depth: 50mm (depending on cutting bit used).
• Makita RT0700C Router: 700W power with adjustable manual speed control (12,000 RPM to 30,000 RPM).
• Auto-Homing Feature: Simplifies setup and ensures machine accuracy.
• MDF Wasteboard & Fastening Clamps: Provides a stable work surface for secure cutting.

Machine Footprint & Work Area:

1.0M x 1.0M *Footprint | *Work Area: 1000mm x 1000mm | 800mm x 800mm x 100mm
1.5M x 1.5M *Footprint | *Work Area: 1520mm x 1480mm | 1240mm x 1240mm x 100mm
1.5M x 2.0M *Footprint | *Work Area: 1520mm x 1985mm | 1240mm x 1740mm x 100mm
1.5M x 3.0M *Footprint | *Work Area: 1520mm x 2985mm | 1240mm x 2740mm x 100mm
2.0M x 3.0M *Footprint | *Work Area: 2020mm x 2985mm | 1740mm x 2740mm x 100mm

*Footprint: At the base, stock size measured from the base.
*Work Area: Stock size.

Requirements:

• Personal computer or laptop running Windows 7, 8, or 10.
• USB port on computer to save G-code to USB memory stick.
• Open Builds Operating Software (included).
• Easel 30-Day Free Trial - Online Cloud-Based App used for designing and cutting process.

Alternative Designing Software:

• Vectric: Basic training available at additional cost.
• Fusion 360: Basic training available at additional cost.

Mechanical Specifications:

Cutting Depth: Up to 50mm (depending on the bit used)
Drive System: HGR15 linear rails with SFU1605 ball screws (X & Y axes), T8 8mm lead screw on Z axis
Motors: 4x Nema 23 stepper motors (30kg.cm)
Resolution: Configured to less than 0.1mm
Maximum Jog Rate: 2,000 mm/min
Maximum Feed Rate: 1,000 mm/min
Router Compatibility: Makita RT0700C (65mm spindle mount)
Frame: Aluminium frame with steel front and back panels

Electronics Specifications:

Controller Board: 4-axis stepper motor driver (DDCS 3.1 stand-alone controller)
Power Supply: 24V 4.5A 250W
Power Input: 230V AC (power cable provided)
Emergency Stop: Included
USB Connection: USB cable provided
Accessories: All necessary fittings and cables

Delivery, Setup & Training:

• Compulsory delivery, setup, and minimal training of the machine available at additional cost.
• Delivery available within South Africa only.
• Delivery Time for Gauteng & Surrounding Provinces: 3-5 Weeks.
• Delivery Time for Northern, Eastern & Western Cape: 5-8 Weeks.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.

Upgrades:

We also have upgrade options available, simply complete the form below with your details, and we will send you a quote or proforma by email! Don’t worry; your information is safe with us! We promise not to share your details with any third parties—your secrets are safe! Plus, we strictly follow our privacy policy to keep everything under wraps.[/vc_column_text]
