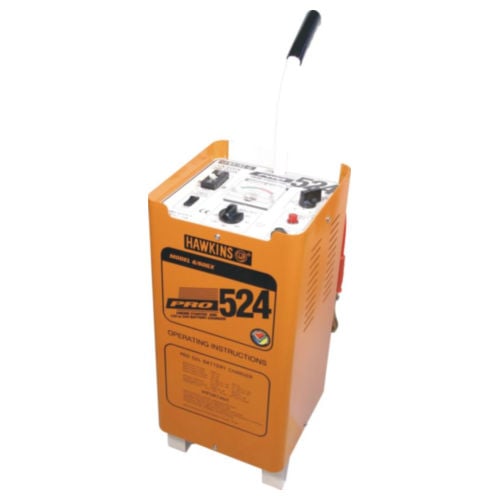

BATTERY CHARGER - pro 524
Is a trolley, type 60A 12V / 24V manual battery charger
or 500A engine starter
Voltage selection is made by connecting the charging
cable to either the 12V or 24V stud
Current can be varied by a rotary switch on the front panel
Unit incorporates a reverse polarity light to indicate incorrect
connection to the battery
Has an engine start button that has to be pressed when the
unit is used as a jump starter
Built in timer is handy for charging at high currents for short periods.
Transformer is protected by an automatic reset thermal circuit breaker
The Pro Series of chargers were designed in compliance with IEC 335-2-2
has a two year limited warranty against defects in materials and workmanship
NOT RECOMMENDED FOR SEALED BATTERIES
Code Rating
HAW6-60GX Input Voltage: 230Vac Output Voltage:12V 68A or 24V 91A
