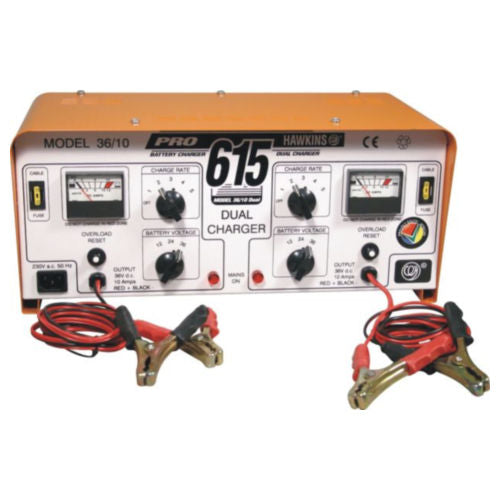

BATTERY CHARGER - pro615
Is a dual multi battery charger capable of charging 12V, 24V or 36V batteries
Charger can charge up to 6 x 12V batteries at a time
Charger has 2 identical banks that can each charge 3 x 12V batteries
Voltage selection switch allows the user to set the appropriate voltage per bank
Current selection switch varies the charge current up to 10A per bank
Fuse on the front panel will blow if the PRO 615 is connected incorrectly to the battery
Resettable circuit breaker will trip if a charge current higher than 10A is selected
Input to the charger is protected by an internal mains fuse
NOT RECOMMENDED FOR SEALED BATTERIES
Code Rating
HAW36-10G Input Voltage: 230Vac Output Voltage: 12V / 24V / 36V at 10A
