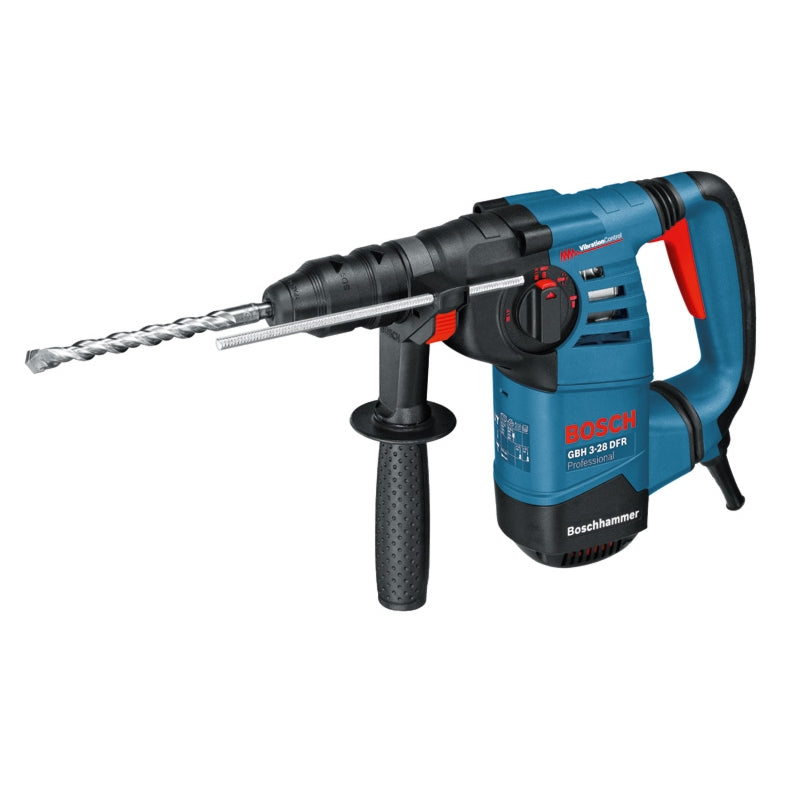

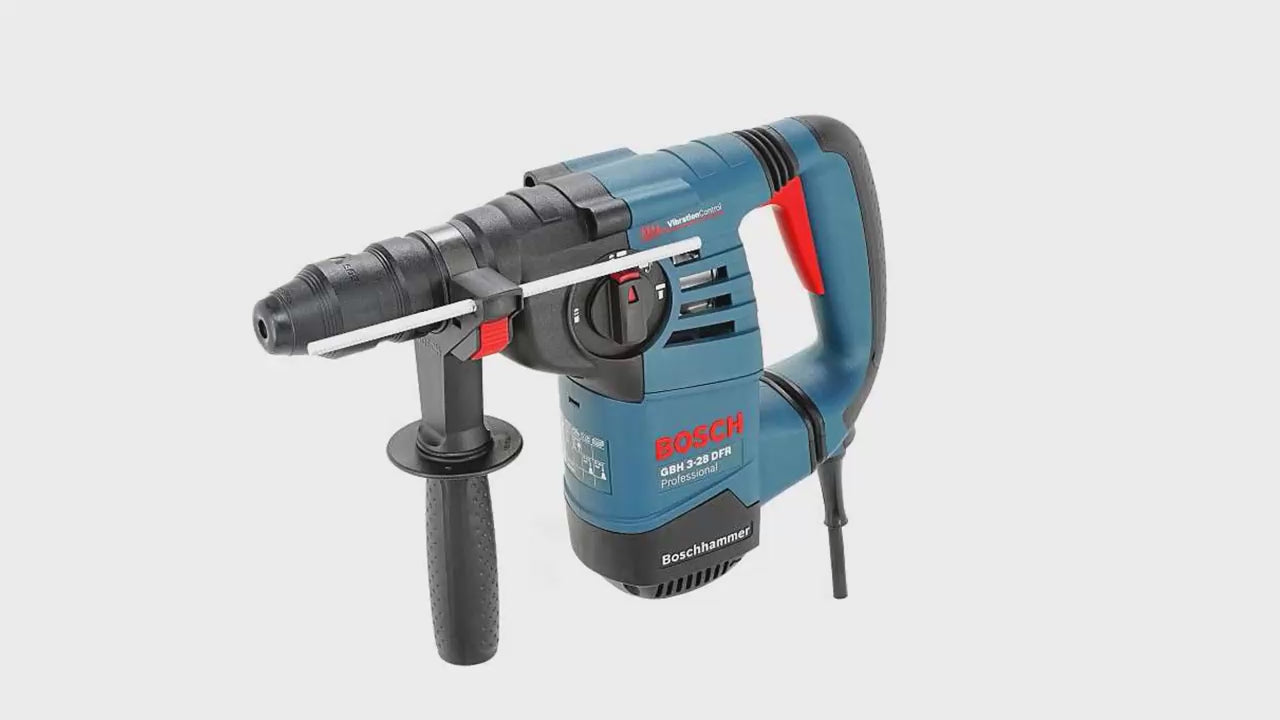

Bosch GBH 3-28 DFR SDS-Plus Rotary Hammer Drill 3.1J, 800W | 061124A000

Bosch GBH 3-28 DFR SDS-Plus Rotary Hammer Drill 3.1J, 800W | 061124A000.

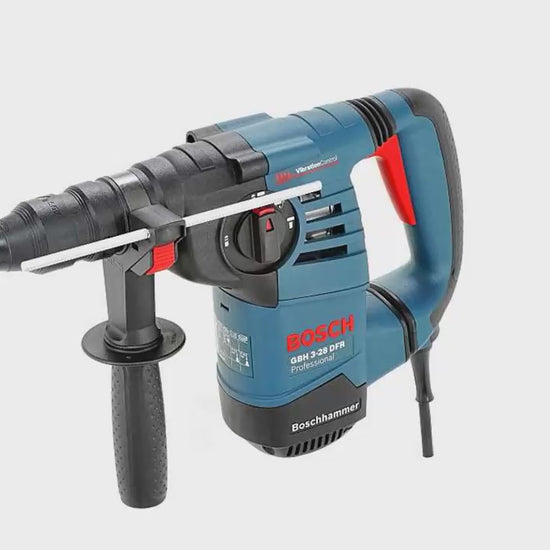

The Bosch GBH 3-28 DFR Professional SDS-plus rotary hammer drill combines power, precision, and comfort, making it ideal for a wide range of drilling and light chiselling tasks. Its compact housing allows operation in narrow and tight spaces, while the L-shaped design ensures balanced weight distribution for better control. Equipped with an 800 W motor, the tool delivers an impact energy of 3.1 J and weighs only 3.6 kg, providing a high power-to-weight ratio that supports continuous work with minimal fatigue. Vibration Control technology further enhances user comfort by reducing vibrations during extended use. The GBH 3-28 DFR also features a keyless chuck for round shaft drill bits, a quick-change SDS-plus chuck, Reverse Mode, Rotation Control Clutch, Variable Speed, and Vario-Lock, ensuring versatile and efficient operation. It is suitable for drilling and chiselling in concrete, masonry, wood, and metal and is compatible with various dust extraction attachments.

Features & Benefits:

• Compact & Versatile: Enables drilling and chiselling in narrow and tight spaces without compromising performance.
• High Power-to-Weight Ratio: 800 W motor with only 3.6 kg tool weight for effortless continuous operation.
• L-Shaped Balanced Design: Provides better weight distribution for precise control and reduced fatigue.
• Vibration Control: Minimises vibrations during extended use for comfortable handling.
• Quick-Change SDS-Plus Chuck: Allows fast and tool-free bit changes for increased efficiency.
• Multiple Operating Features: Includes keyless chuck, Reverse Mode, Rotation Control Clutch, Variable Speed, and Vario-Lock for versatile applications.

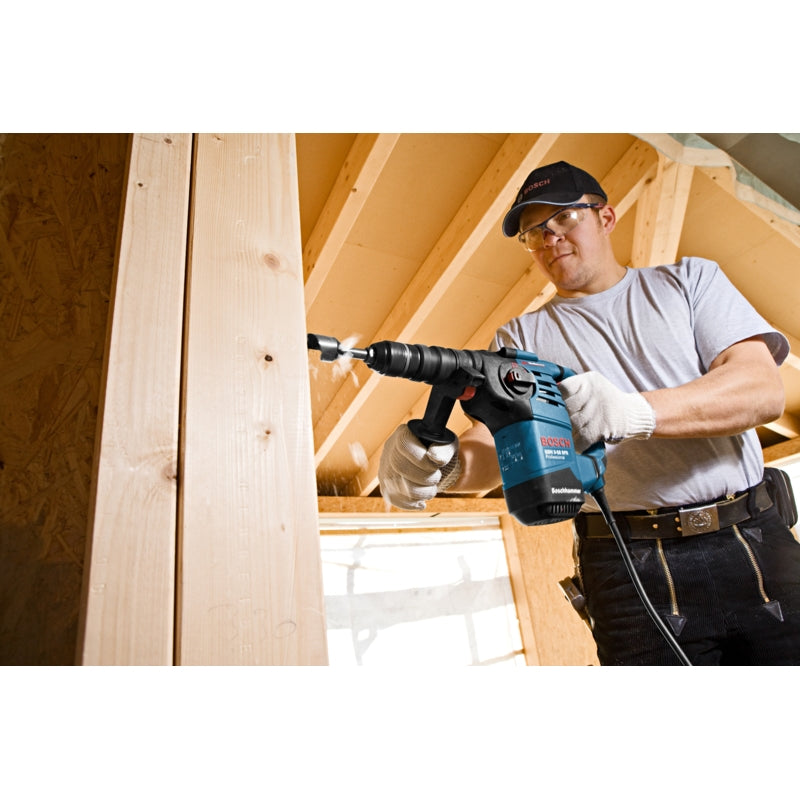

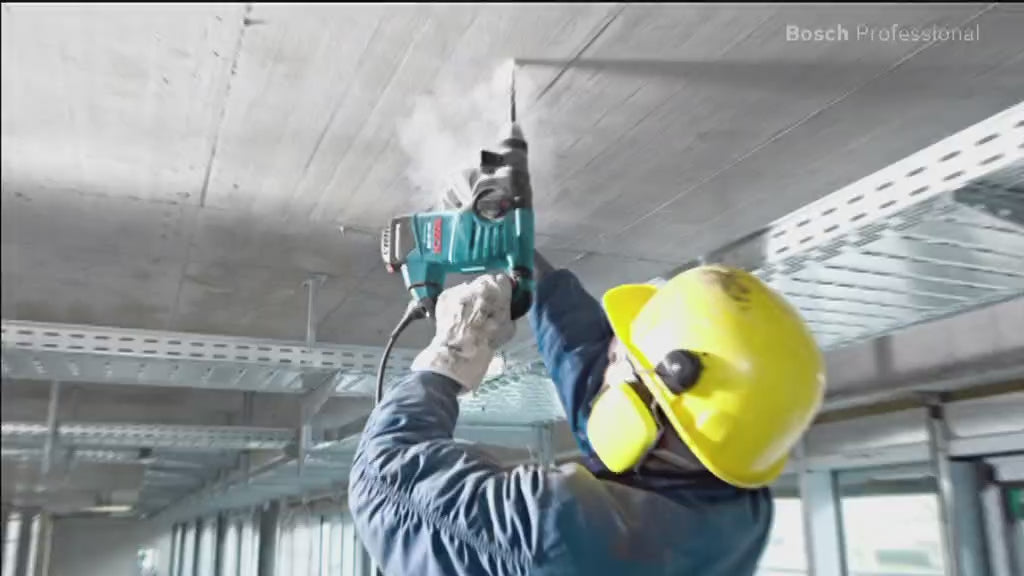

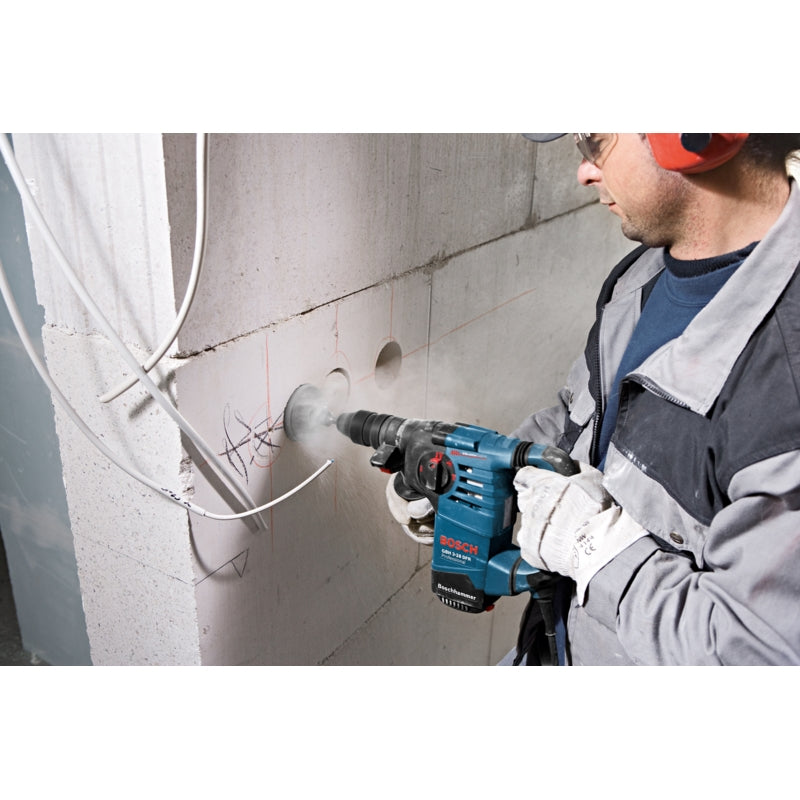

• Wide Application Range: Suitable for drilling and light chiselling in concrete, masonry, wood, and metal.

Specifications:

• Code: 0 611 24A 000
• Barcode: 3165140471176
• Rated Input Power: 800 W
• Impact Energy: 3.1 J
• Impact Rate at Rated Speed: 0 – 4,000 bpm
• Rated Speed: 0 – 900 rpm
• Weight: 3.6 kg

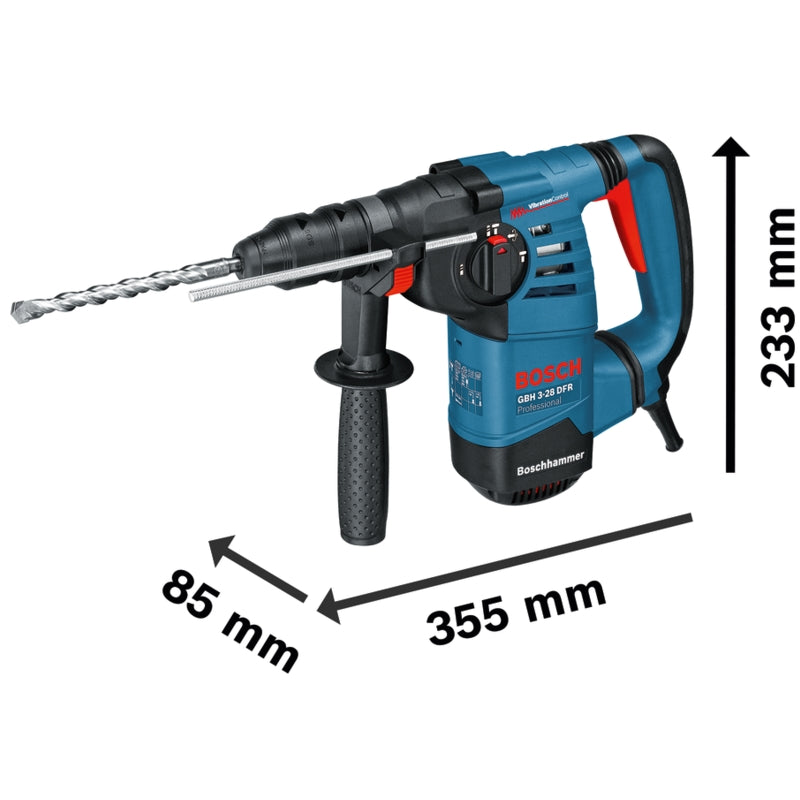

• Tool Width: 354 mm
• Tool Length: 233 mm
• Tool Height: 233 mm
• Tool Holder: SDS-plus
• Voltage, Electrical: 230 V
• Hammer Drilling Diameter Range in Concrete: 4 – 28 mm
• Recommended Drilling Diameter Range in Concrete: 12 – 18 mm
• Max Drilling Diameter in Metal: 13 mm
• Max Drilling Diameter in Wood: 30 mm
• Noise Level: Sound pressure level 94 dB(A); Sound power level 102 dB(A), Uncertainty K = 3 dB

Scope of Delivery:

• 1 x GBH 3-28 DFR SDS-Plus Rotary Hammer Drill 3.1J, 800W | 061124A000
• 1 x Auxiliary Handle | 2 602 025 191

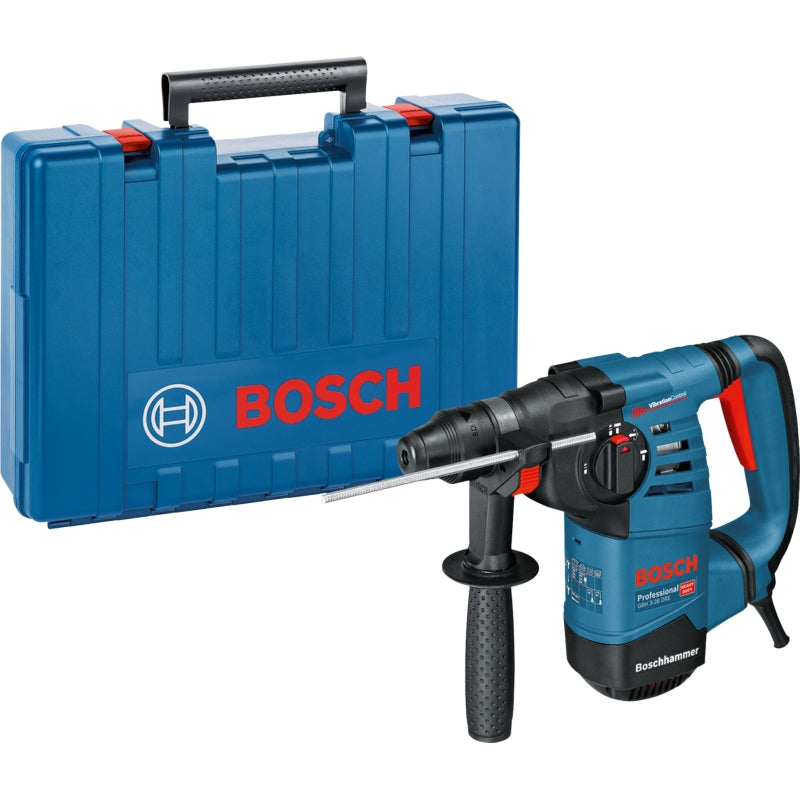

• 1 x Carrying Case | 2 605 438 651
• 1 x Depth Stop 210 mm | 1 613 001 010
• 1 x Grease Tube | Spare Part Number 1 615 430 010
• 1 x Machine Cloth
• 1 x Quick Change Chuck 13 mm | 2 608 572 212
• 1 x SDS-Plus Quick-Change Chuck | 2 608 572 213

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
