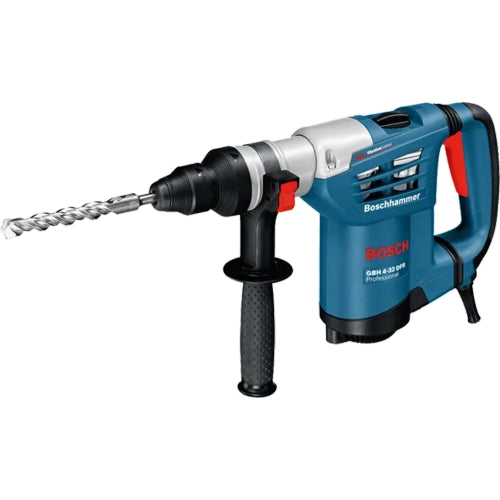

Bosch GBH 4-32 DFR SDS-Plus Rotary Hammer Drill 4.2J, 900W | 0611332101

Bosch GBH 4-32 DFR SDS-Plus Rotary Hammer Drill 4.2J, 900W | 0611332101.

The Bosch GBH 4-32 DFR SDS-Plus Rotary Hammer Drill is engineered for maximum performance and durability. Equipped with a powerful 900 W motor, it delivers an impressive 4.2 J of impact energy, making it the most powerful tool in Bosch’s SDS plus corded rotary hammer category. This hammer drill is designed for heavy-duty applications, including drilling and chiselling in concrete, masonry, wood, and metal. It offers up to 30% faster drilling speeds compared to other tools in its class, especially in the 25 mm diameter range, ensuring efficient and rapid work progress.

The GBH 4-32 DFR is also equipped with Bosch’s Vibration Control technology, which reduces vibration to only 12 m/s², allowing for less tiring work during extended periods. The robust metal gearbox housing ensures long-lasting durability, while the tool’s versatility is further enhanced by its compatibility with various dust attachments. Additionally, the quick-change chuck system allows for easy switching between SDS-Plus and standard chucks, offering flexibility for a wide range of drilling and chiselling tasks.

Features & Benefits:

• High Impact Energy: 4.2 J of impact energy for powerful chiselling and drilling in various materials.
• Fast Drilling Speeds: Up to 30% faster drilling compared to other tools in its class.
• Vibration Control: Reduces vibration to 12 m/s² for less tiring work during prolonged use.
• Durable Construction: Robust metal gearbox housing ensures long-lasting performance.
• Quick-Change Chuck System: Easily switch between SDS-Plus and standard chucks for different applications.
• Versatile Applications: Suitable for drilling and chiselling in concrete, masonry, wood, and metal.

Specifications:

Rated input power: 900 W
Impact energy (according to EPTA 05/2016): 4.2 J
Impact rate at rated speed: 0 – 3,600 bpm
Rated speed: 0 – 800 rpm
Weight: 4.7 kg (10.36 lbs)
Tool holder: SDS-Plus
Voltage, electrical: 230 V
Tool dimensions (width): 377 mm (14.84 inches)
Tool dimensions (length): 493 mm (19.41 inches)
Tool dimensions (height): 133 mm (5.24 inches)
Product category subdivision: Rotary Hammer with SDS-Plus
Hammer drilling diameter range in concrete: 6 – 32 mm (0.24 – 1.26 inches)
Recommended drilling diameter range in concrete: 14 – 25 mm (0.55 – 0.98 inches)
Max. drilling diameter in metal: 13 mm (0.51 inches)
Max. drilling diameter in wood: 32 mm (1.26 inches)

Total Vibration Values (Hammer drilling in concrete):

Vibration emission value ah: 12.7 m/s²
Uncertainty K: 1.5 m/s²

Total Vibration Values (Chiselling in concrete):

Vibration emission value ah: 11.4 m/s²
Uncertainty K: 1.5 m/s²

The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.

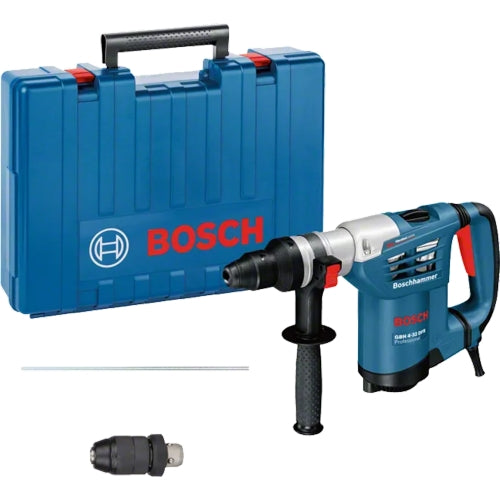

Scope of Delivery:

• Auxiliary handle | 2 602 025 176
• Carrying case
• Depth stop 310 mm (12.20 inches) | 1 613 001 003
• Grease tube | Spare part number 1 615 430 010
• Machine cloth
• Quick change chuck 13 mm (0.51 inches) | 2 608 572 212
• SDS-Plus quick-change chuck | 2 608 572 213

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated.
