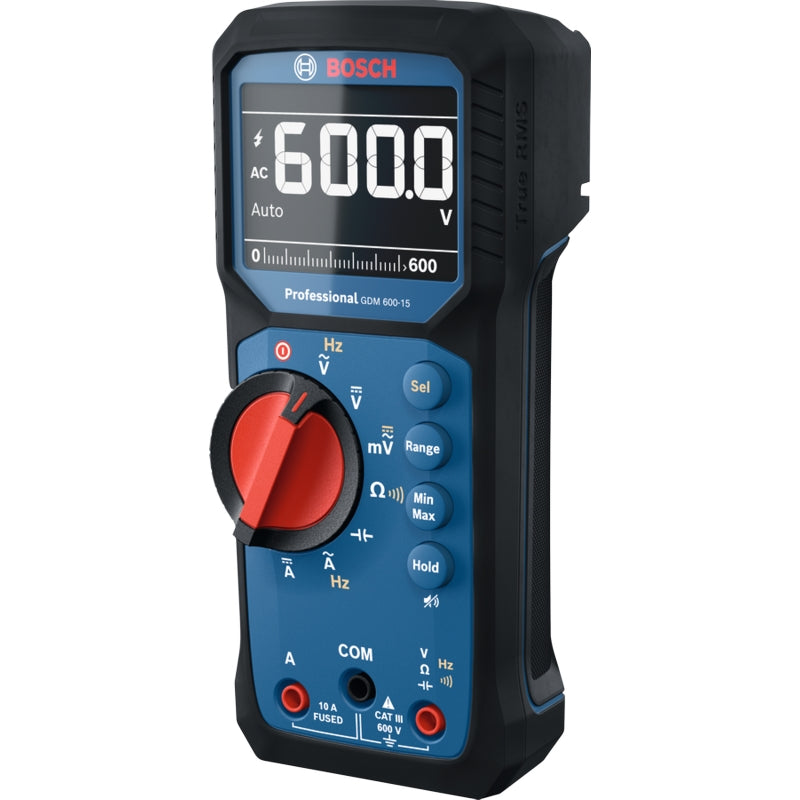

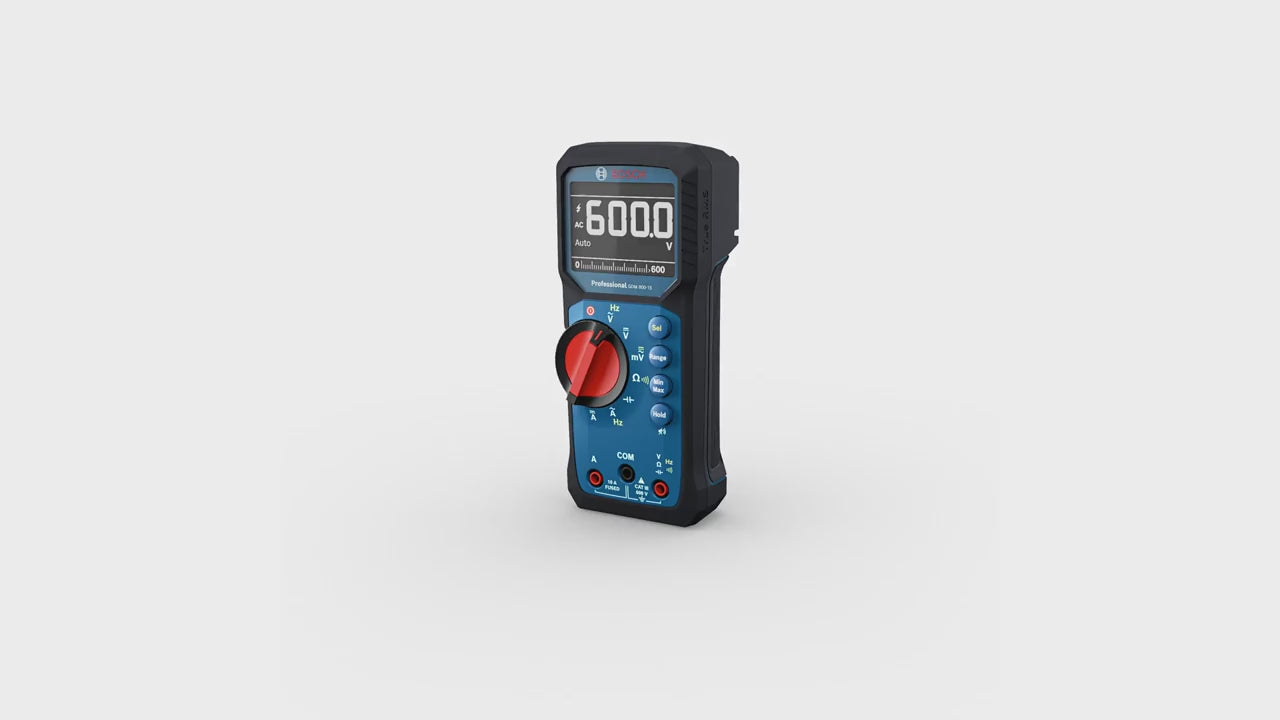

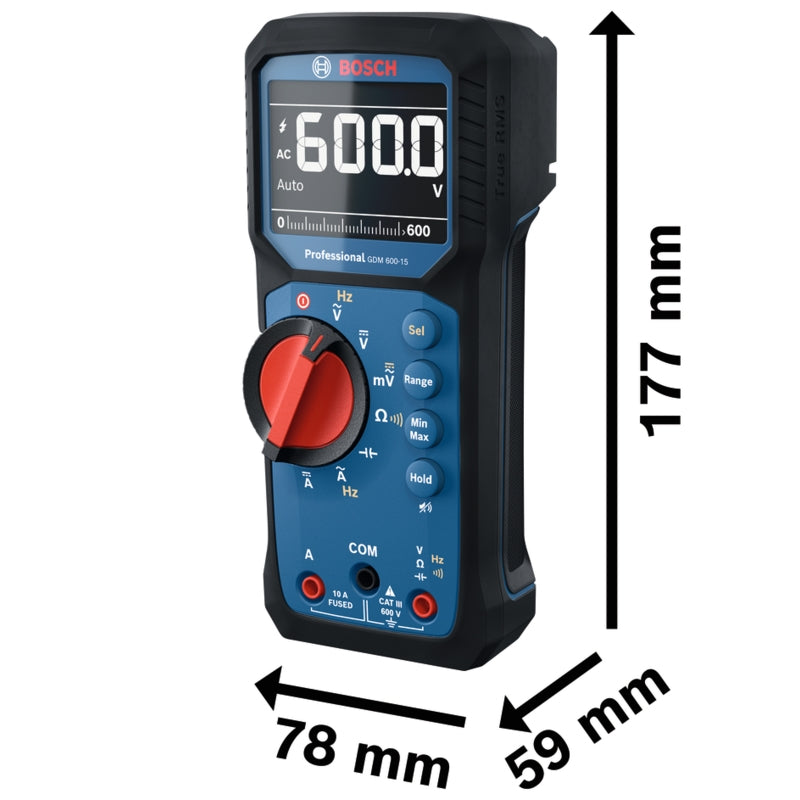

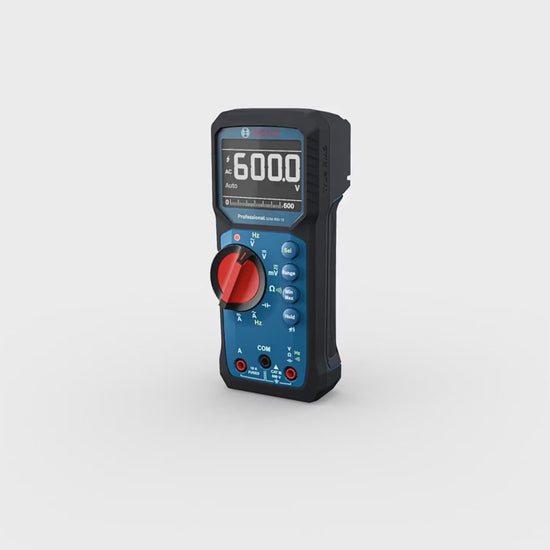

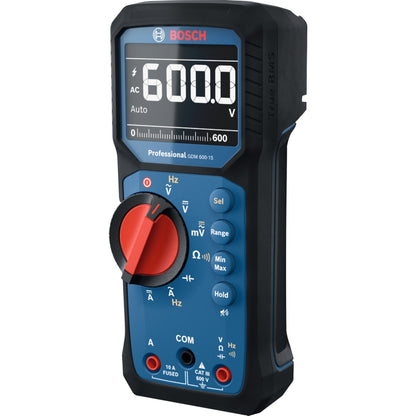

Bosch GDM 600-15 Digital Multimeter | 0601077300.

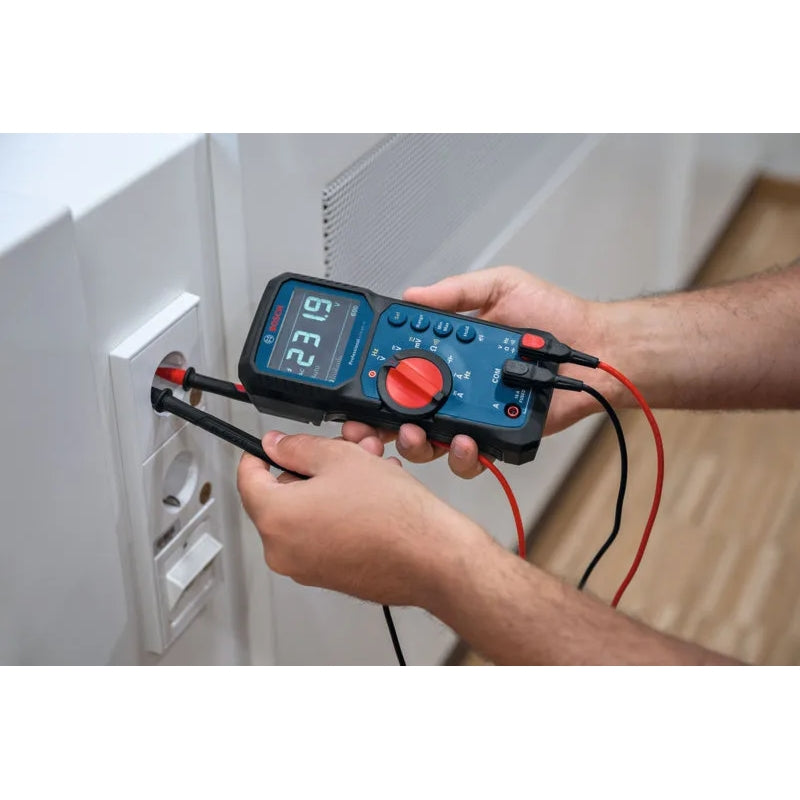

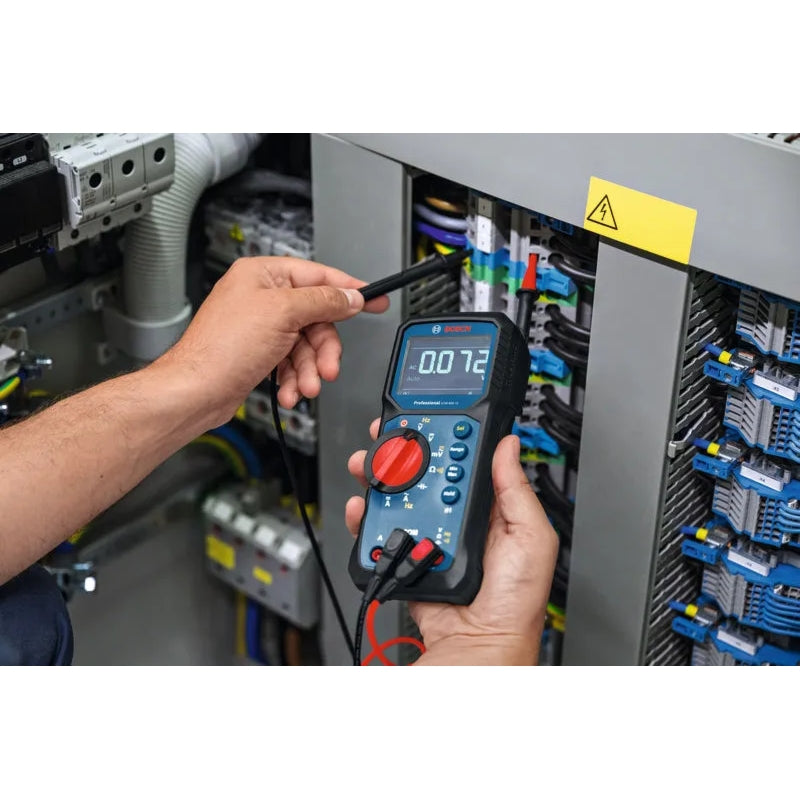

The Bosch GDM 600-15 Professional Digital Multimeter is engineered for reliable performance and precision across diverse electrical applications. With True RMS measurement capability, it provides accurate readings of AC and DC voltage, current, resistance, frequency, and capacitance. The large inverted LCD display ensures excellent visibility in all working conditions, while the compact, ergonomic design allows comfortable one-handed operation. Built to withstand tough jobsite environments, the GDM 600-15 features an IP65 rating for superior protection against dust, water, and impact. It also includes a durable rubber housing capable of withstanding drops from up to 2 m. For hands-free operation, the multimeter is equipped with a practical kickstand and a separate magnetic hanging solution. Ideal for electricians, HVAC technicians, facility managers, and electronics professionals, this tool simplifies electrical installations, maintenance, and troubleshooting. With Min/Max/Average recording, users can monitor signal fluctuations effectively, ensuring greater control and diagnostic accuracy. Additionally, the GDM 600-15 includes flexible silicone measuring leads and is tested to CAT III 600 V standards for safety and dependability in professional use.
Features & Benefits:
-
True RMS Measurement: Ensures precise and consistent readings across all AC and DC voltage and current measurements.
-
Durable Design: IP65 rating offers dust and water protection, with impact resistance for drops up to 2 m (78.7 in).
-
Versatile Measurement Functions: Measures frequency, continuity, resistance, and capacitance, including Min/Max/Average data recording.
-
Enhanced Usability: Large inverted LCD screen provides excellent visibility in bright and low-light environments.
-
Hands-Free Convenience: Kickstand and magnetic hanging option enable easy, stable positioning during use.
-
Safe Operation: CAT III 600 V rated for professional-grade protection in electrical systems.
-
Comfortable Handling: Compact, one-handed design with an ergonomic grip for improved control and reduced fatigue.
Specifications:
-
AC Voltage Measuring Range (max): 600 V
-
AC Resolution: 0.1 mV
-
AC Accuracy: ±1.0 % + 3
-
AC Current (max): 10 A
-
AC Current Resolution: 0.001 A
-
AC Current Accuracy: ±1.5 % + 3
-
DC Voltage (max): 600 V
-
DC Voltage Resolution: 0.1 mV
-
DC Voltage Accuracy: ±0.5 % + 2
-
DC Current (max): 10 A
-
DC Current Resolution: 0.001 A
-
DC Current Accuracy: ±1.0 % + 3
-
Resistance Measuring Range (max): 40 MΩ
-
Resistance Resolution: 0.01 MΩ
-
Resistance Accuracy: ±2.0 % + 5
-
Capacitance Measuring Range (max): 1000 µF
-
Capacitance Accuracy: ±1.9 % + 2
-
Continuity Function: Yes
-
Continuity Resolution: 0.1 Ω
-
Continuity Accuracy: ±1.0 % + 5
-
Frequency Range (ACV): 50 kHz
-
Frequency Range (ACA): 2 kHz
-
Frequency Resolution: 0.01 Hz
-
Frequency Accuracy: ±0.1 % + 2
-
IP Protection Rating: IP65
-
True RMS: Yes
-
Safety Class: CAT III 600 V
-
Display Type: Inverted LCD
-
Acoustic Feedback: Yes
-
Cable Break Detection: No

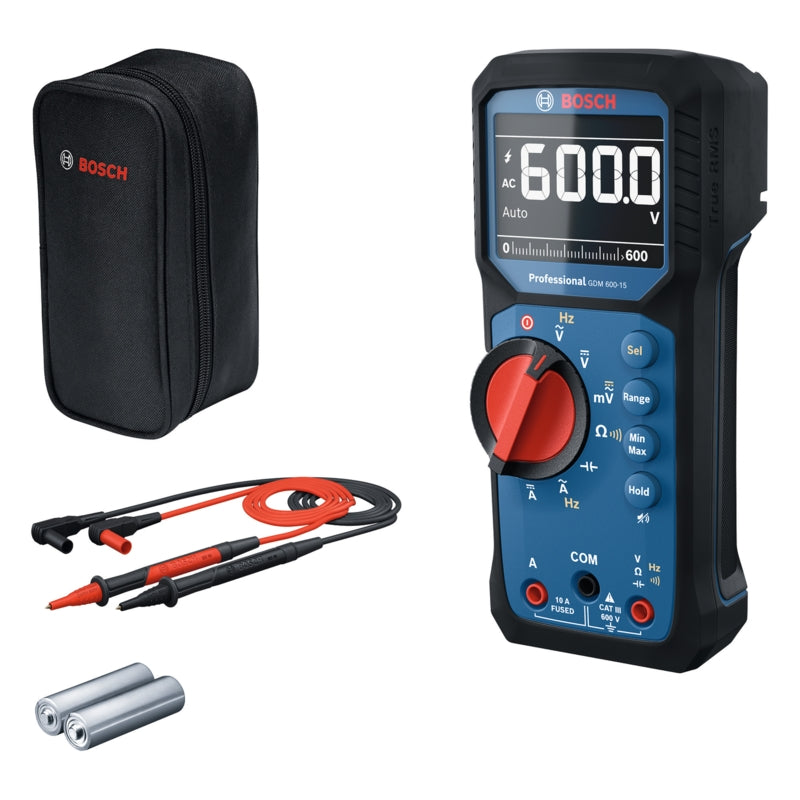

Scope of Delivery:
- 1 x GDM 600-15 Digital Multimeter
- 2 x 1.5 V LR6 Batteries (AA)
- 1 x MS 90 Professional (1 600 A03 8D2)
- 1 x Pouch
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
