Bosch GLL 3-80 G Cross-Line Laser | 0601063Y00

Bosch GLL 3-80 G Line Laser | 0601063Y00.

Advantages:

• 3 x 360° bold green lines for optimal visibility
• Bright green lines provide up to four times better visibility than red lines

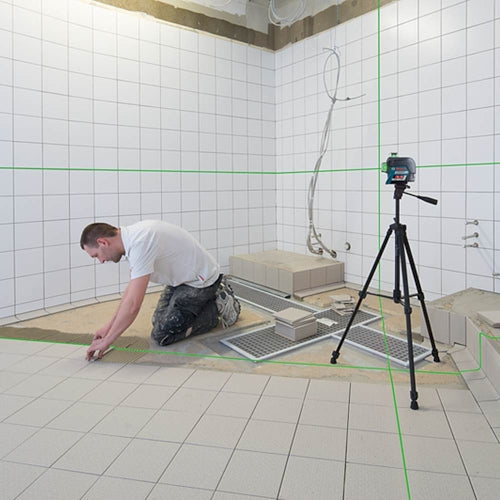

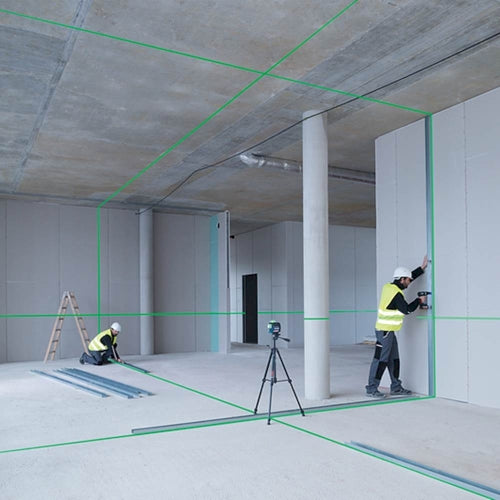

• Perfect for simultaneous horizontal and vertical levelling applications thanks to three lines, for highly efficient work
• Intuitive user interface makes it easy to operate

---

Functions:

---

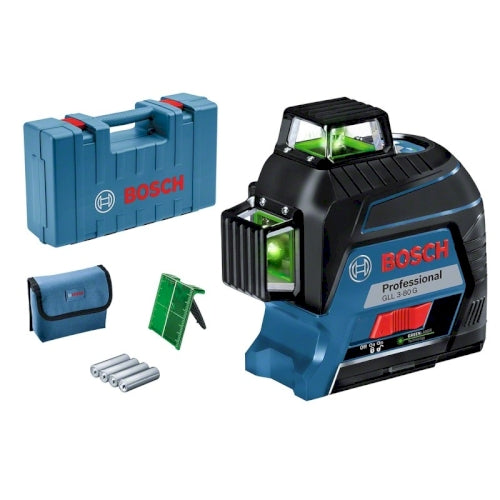

What’s Included in this Package:

• in carrying case with 4 x battery (AA), laser target plate
• 4 x 1.5 V LR6 battery (AA)
• Laser target plate
• Pouch
• Carrying case

---

Technical data:

Working range*: up to 30 m
Working range with receiver*: up to 120 m
Accuracy*: +/- 0.3 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Operating temperature: -10 – 40 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Self-levelling range: ± 4°
Levelling time: 4 s
Power supply: 4 x 1.5 V LR6 (AA)
Tripod thread: 1/4",5/8"
Weight, approx.: 0.82 kg
Colour of laser line: green
Projection: 3 x 360° line

---

Downloads:

User Manual - GLL 3-80 G (PDF 9.7 MB)

---
