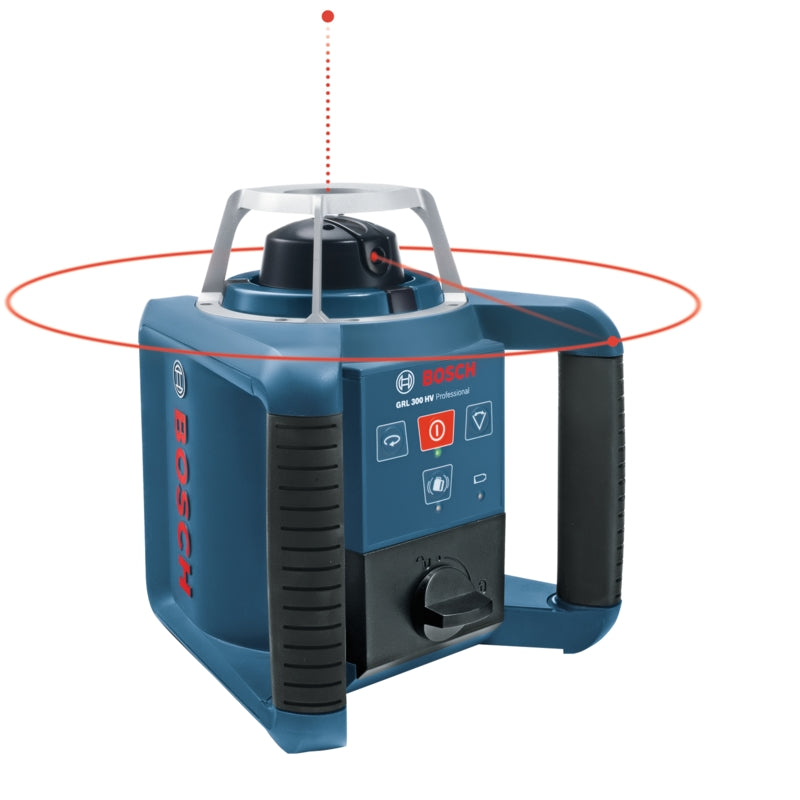

Easy handling with horizontal and vertical self-levelling.
Specification overview:
| Laser diode | 635 nm, < 5 mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 3R |
| Working range | 60 m |
| Working range with receiver | 300 m (Diameter) |
| Working range without receiver | 60 m (Diameter) |
| Accuracy | ± 0.1 mm/m |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Dust and splash protection | IP 54 |
| Rotation speed | 150, 300, 600 rpm |
| Power supply | 2 x 1.2 V HR20 (D) (9 Ah) , 2 x 1.5 V LR20 (D) |
| Operating time (max.) | Rechargeable batteries (NiMH) 30 h |
| Tripod thread | 5/8" |
| Weight, approx. | 1.8 kg |
| Colour of laser line | red |

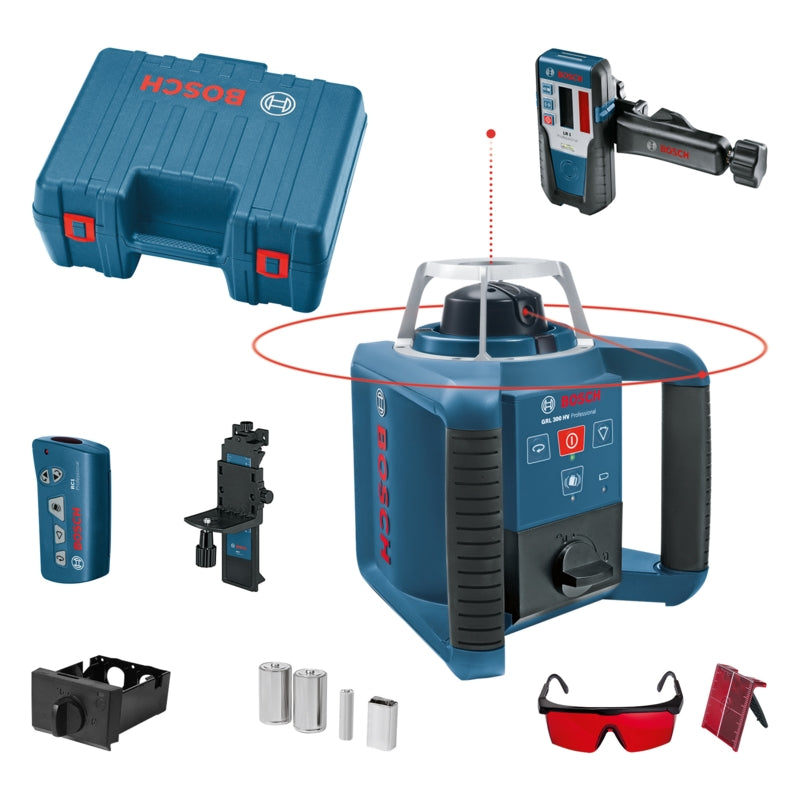

GRL 300 HV Professional comes complete with:
| Item | |
|---|---|
| Battery compartment (spare part number 1 608 M00 05D) | |
| Carrying case | |
| Charger set with adapter (spare part number 1 600 A00 1W3) | |
| Holder also available separately as an accessory (spare part number 1 608 M00 70F) | |
| Laser Receiver LR 1 Professional (0 601 015 400) | |
| Laser target (red) (red) (spare part number 1 608 M00 05C) | |
| Laser viewing glasses (red) (red) (spare part number 1 608 M00 05B) | |
| Remote control RC1 Professional (0 601 069 900) | |
| Universal mount WM 4 Professional (0 601 092 400) | |
| 1 x NiMH battery (spare part number 1 608 M00 05G) | |
| 1 x 9 V block battery (6LR61) | |
| 2 x 1.5 V LR20 battery | |
| 1 x 1.5 V LR6 battery (AA) |
