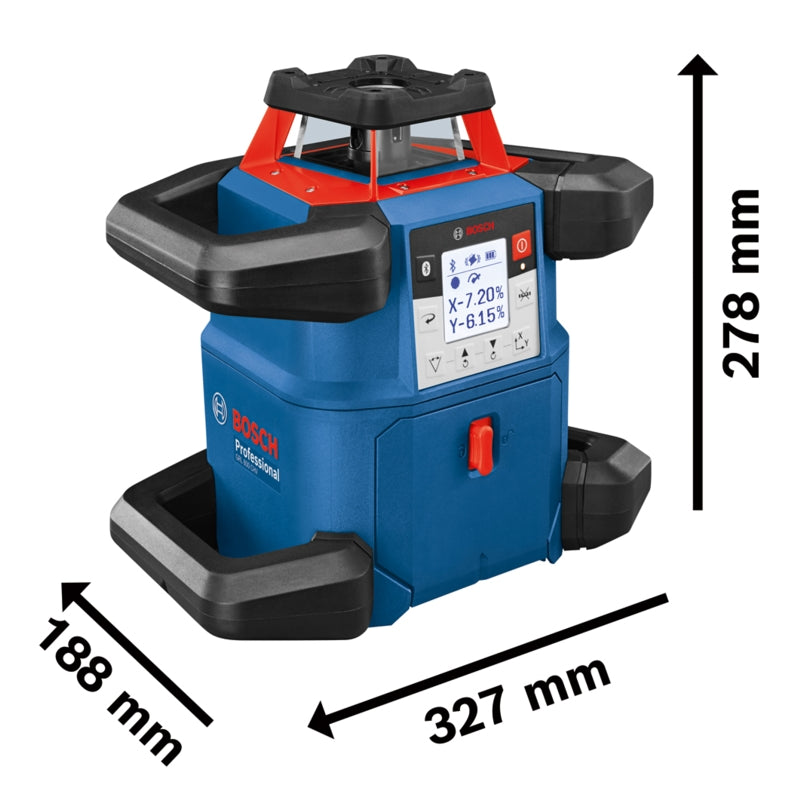

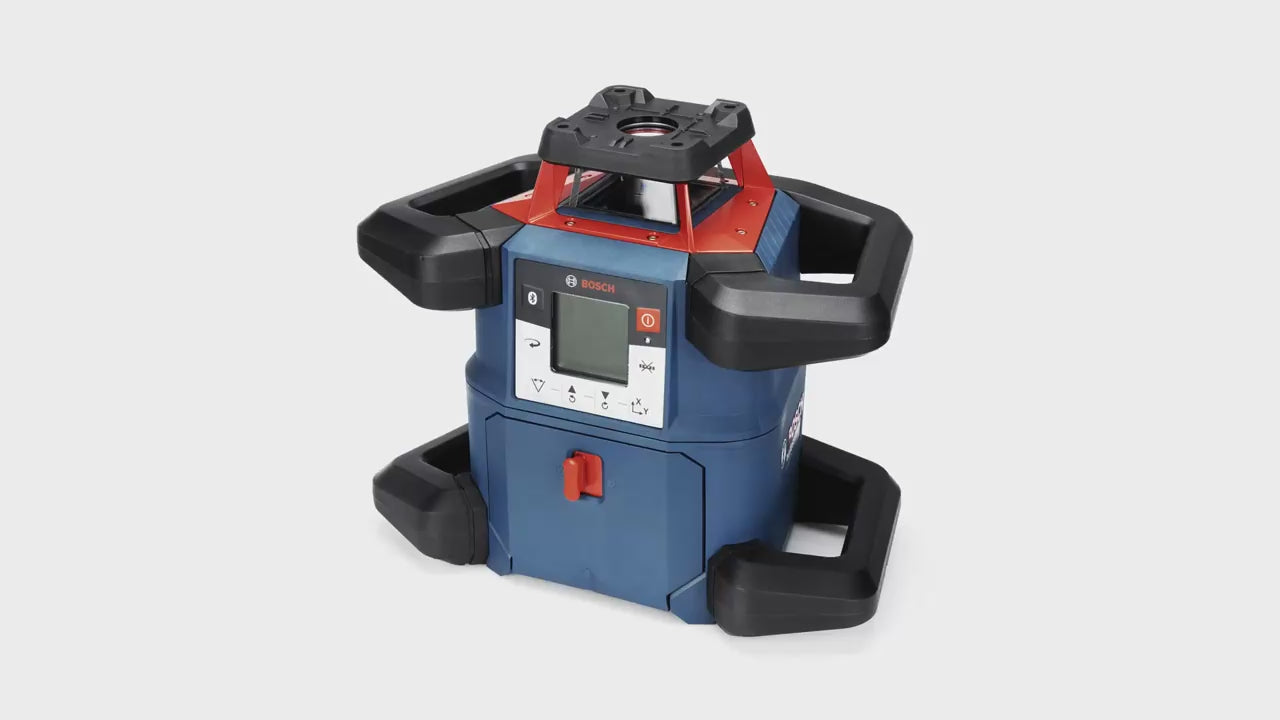

Bosch GRL 600 CHV Rotation Laser | 0601061F00

Bosch GRL 600 CHV Rotation Laser | 0601061F00.

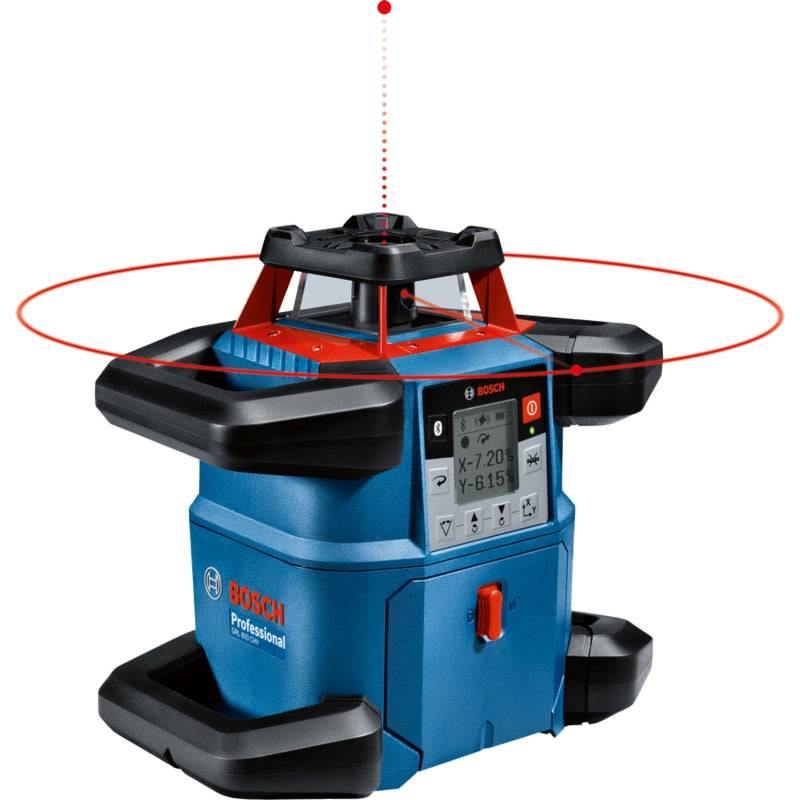

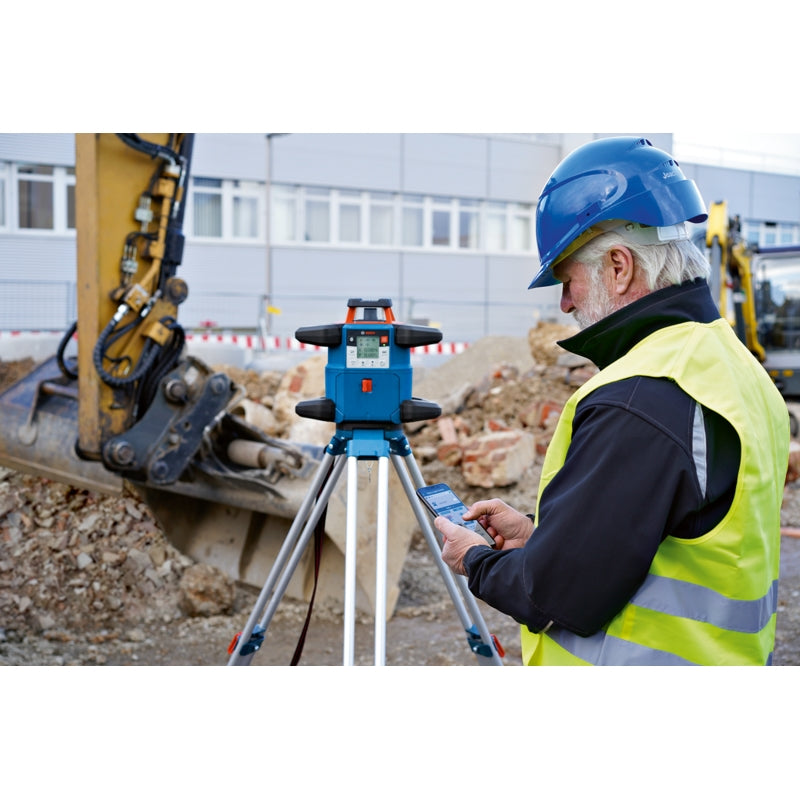

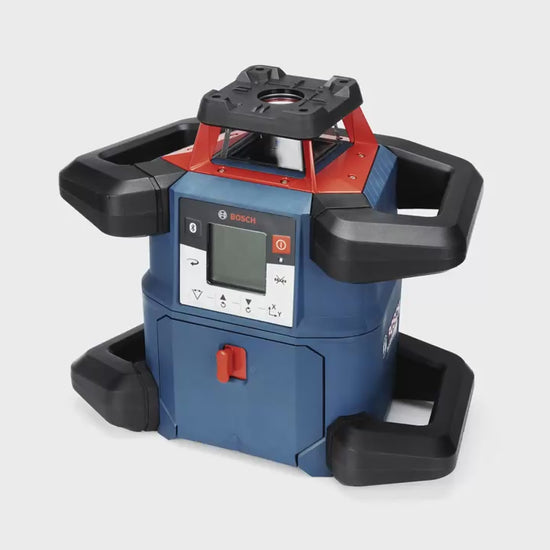

The Bosch GRL 600 CHV Professional Rotation Laser is engineered for heavy-duty levelling applications, delivering precise results and saving valuable working time. Built to endure demanding environments, this rotation laser features a robust design with superior impact protection and an IP68 rating against dust and water — including its battery compartment — ensuring reliable performance in harsh weather conditions. Its advanced connectivity allows access to the levelling remote app, where users can visualise all functions, including dual slope settings, for greater control and efficiency.

This model ensures maximum convenience through an extended runtime, powered either by Bosch’s 18V Li-ion battery system or with alkaline batteries via an included adapter. Its intuitive screen simplifies operation and reduces setup time. Moreover, the high-quality receiver with a 125 mm (4.9”) reception area and dual-sided display enhances precision and usability on-site. Calibration is quick and easy through the guided steps in the app, optimising accuracy and resource use. Additionally, the “mask mode” in the app prevents reflection and interference when operating near other lasers.

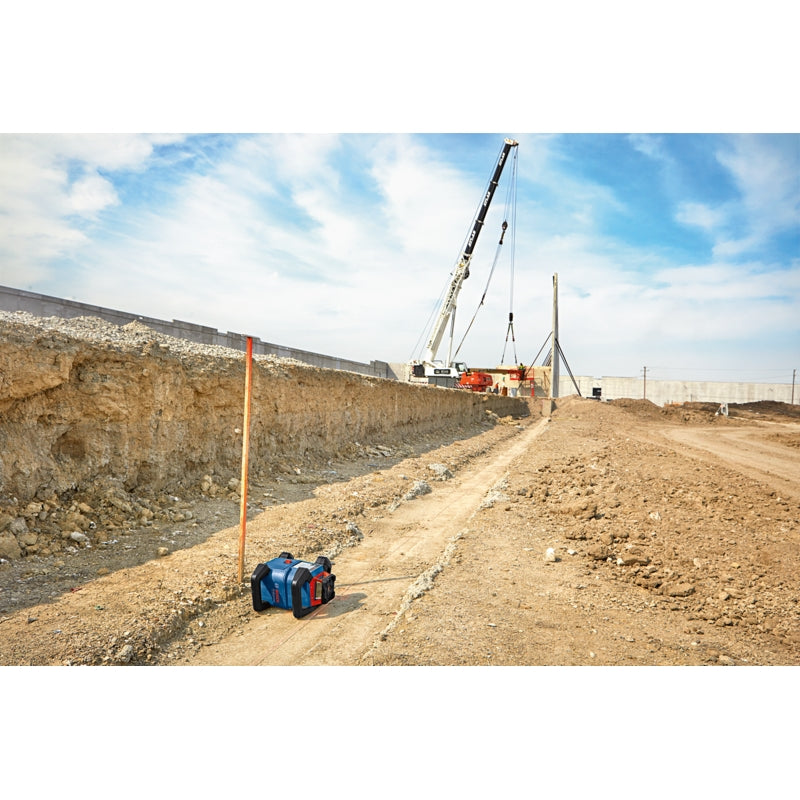

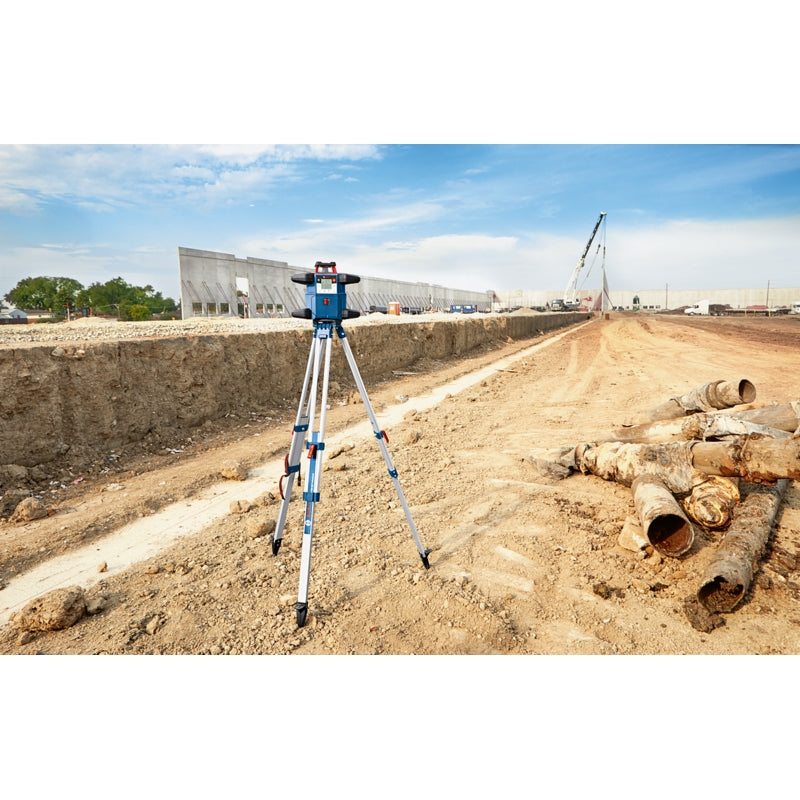

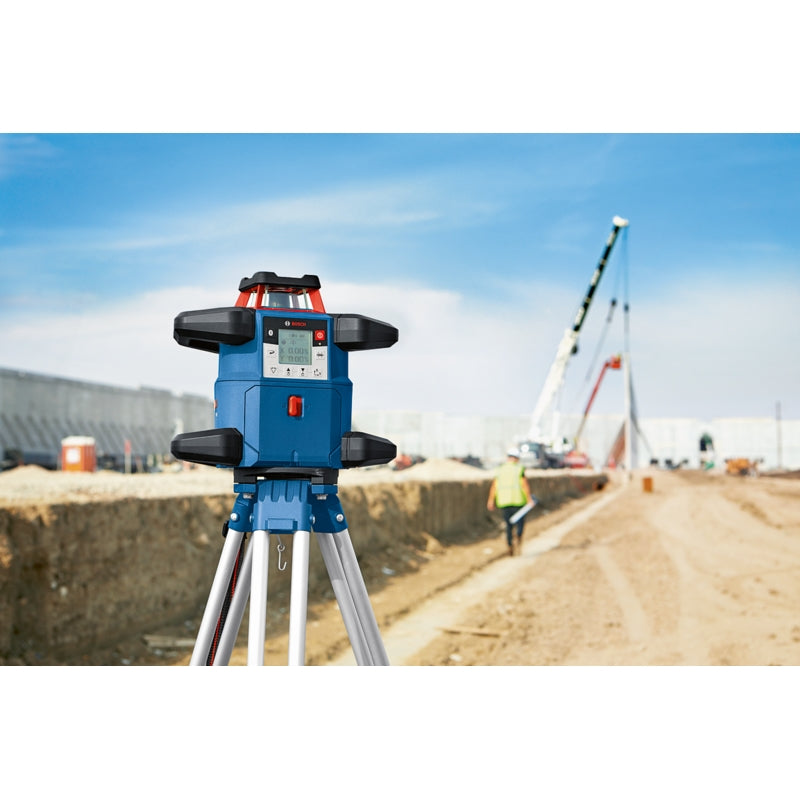

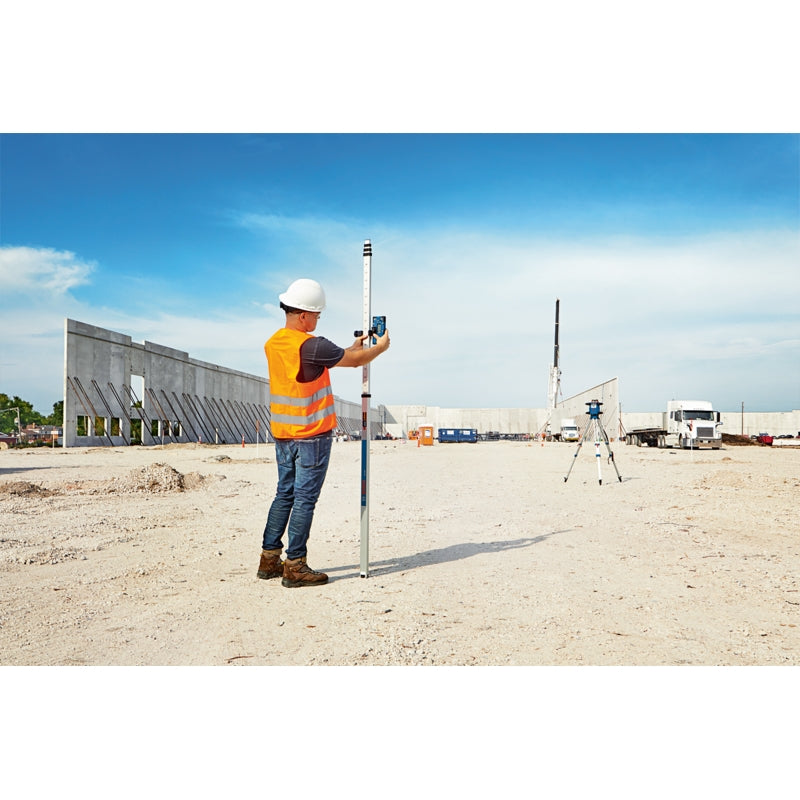

Perfectly suited for outdoor applications, the GRL 600 CHV Professional excels in cut-and-fill excavation, concrete form setting, landscaping, and façade work, ensuring accuracy and efficiency in every project.

Features & Benefits:

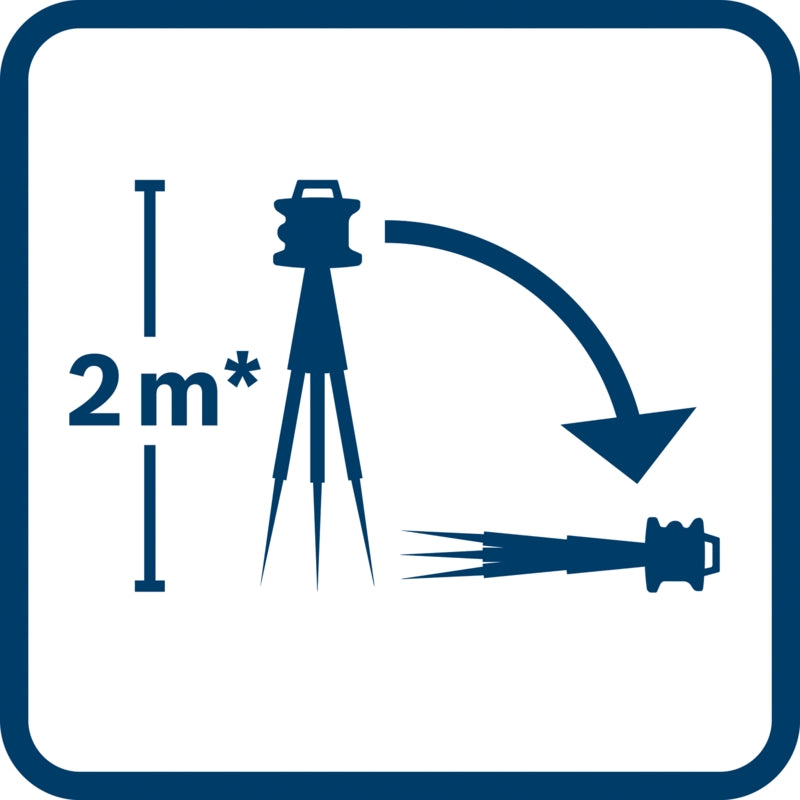

• Heavy-Duty Durability: Robust construction with impact protection and IP68 dust and water resistance, including the battery compartment, for maximum reliability in all conditions.

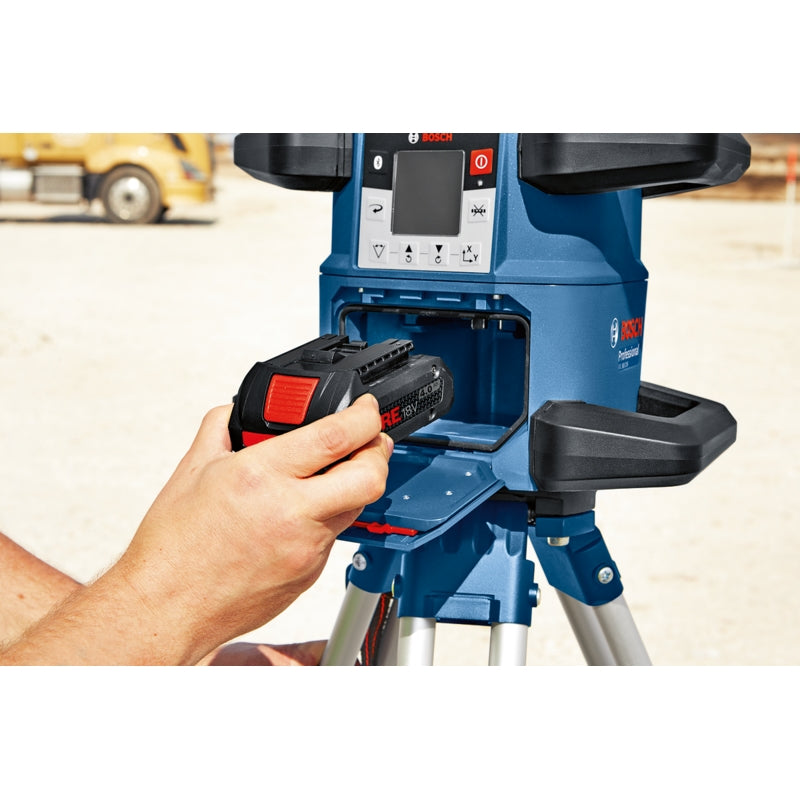

• Dual Power Options: Compatible with Bosch 18V Li-ion batteries and standard alkaline D-cell batteries (adapter included) for continuous operation.

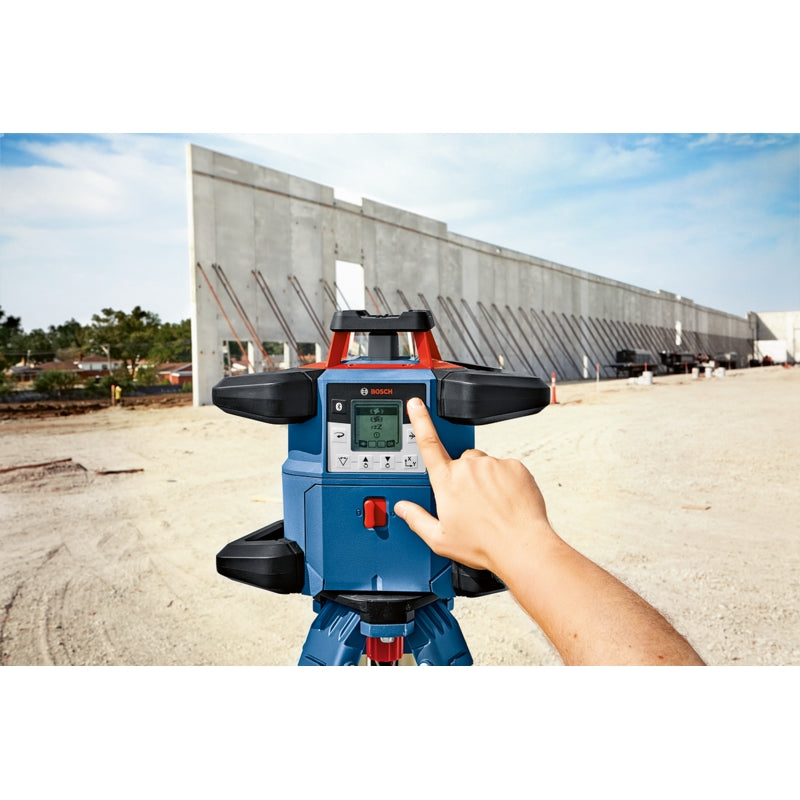

• Intuitive Operation: Easy-to-read screen and app-based visual interface streamline use and reduce setup time.
• Dual Slope Function: Allows precise adjustment for complex levelling applications via the app interface.
• High Accuracy: Provides ±1.5 mm at 30 m horizontally and ±3.0 mm at 30 m vertically for consistent precision.
• Extended Working Range: Covers up to 600 m (diameter) with a receiver, ideal for large outdoor projects.
• Smart Calibration: Guided calibration process via app saves time and ensures dependable results.
• Mask Mode: Prevents interference and reflection from nearby laser devices on site.

Specifications:

Code: 0 601 061 F00
Barcode (EAN): 3165140869096
Laser Diode: 630 – 650 nm, <1 mW
Laser Class: 2
Working Range with Receiver: 600 m (diameter)
Working Range without Receiver: 60 m (diameter)
Accuracy (Horizontal): ±1.5 mm at 30 m
Accuracy (Vertical): ±3.0 mm at 30 m
Self-Levelling Range: ±8.5% (±5°)
Rotation Speed: 150 / 300 / 600 min⁻¹
Operating Temperature: -10 – 50 °C
Storage Temperature: -20 – 50 °C
Projection: 1 x 360° line
Power Supply: 18 V Li-ion battery or 4 x D-cell alkaline batteries
Operating Time (max.): 60 h (Li-ion) / 70 h (alkaline)
Dust and Splash Protection: IP68
Tripod Thread: 2 x 5/8” (15.88 mm)
Compatible Laser Receivers: LR 60 Professional
Weight with 4.0Ah Battery: 4.3 kg
Weight with Alkaline Batteries: 4.6 kg
Slope Function: Yes

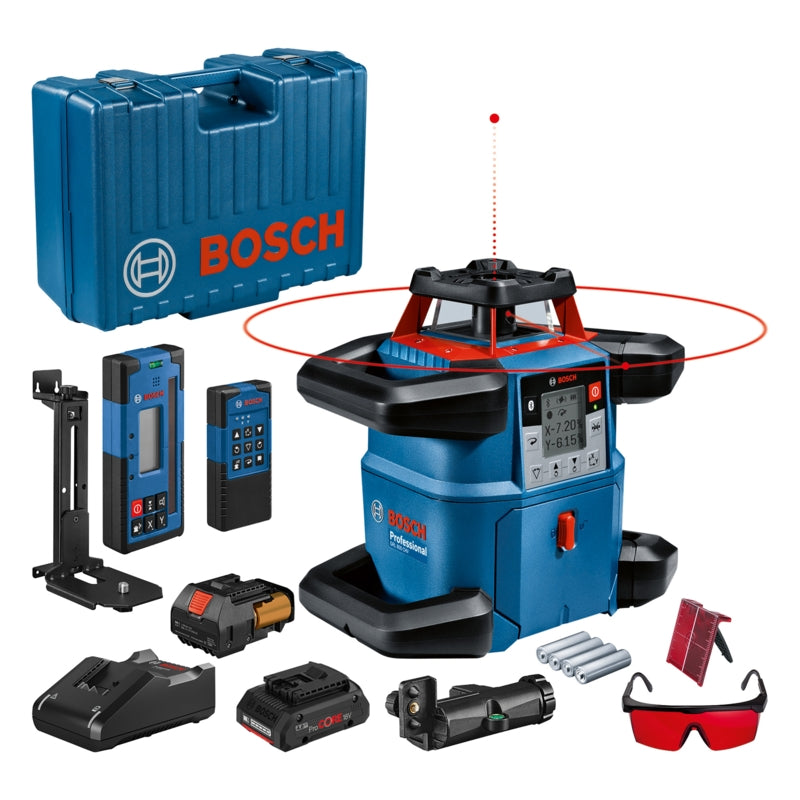

Scope of Delivery:

• 1 x GRL 600 CHV Rotation Laser | 0 601 061 F00
• 1 x Battery ProCORE18V 4.0Ah | 1 600 A01 6GB
• 4 x 1.5 V LR20 batteries (D)
• 4 x 1.5 V LR6 batteries (AA)
• 1 x Battery Adapter BA 1 Professional

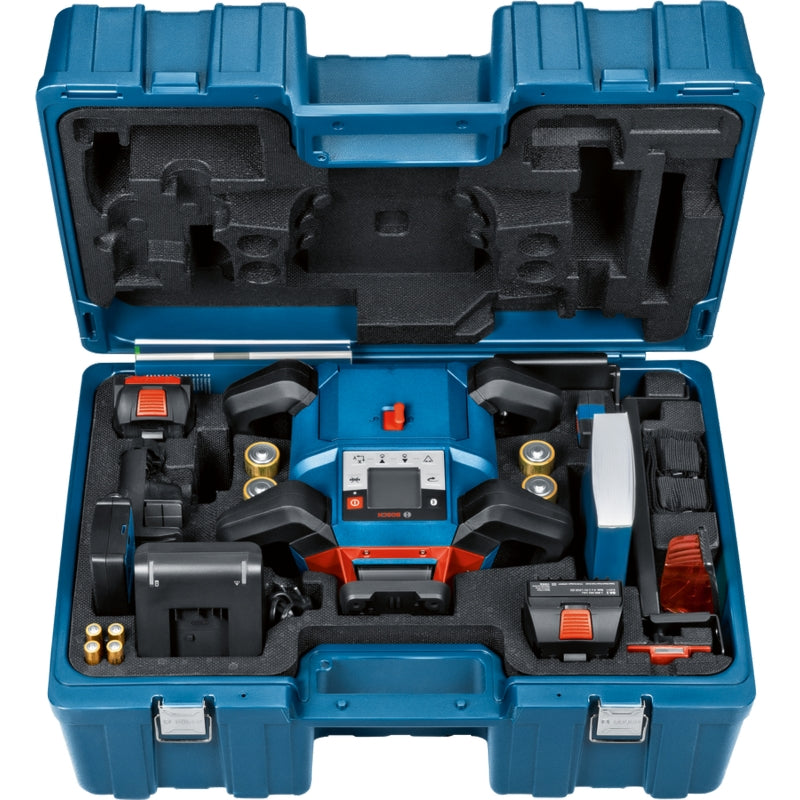

• 1 x Carrying Case
• 1 x Laser Receiver LR 60 Professional | 0 601 069 P00
• 1 x Laser Target Plate
• 1 x Laser Viewing Glasses, Red, BL-GLASS | 1 608 M00 05B
• 1 x Quick Charger GAL 18V-40 Professional | 1 600 A01 9RJ
• 1 x Receiver Bracket RB 60 Professional
• 1 x Remote Control RC 6 Professional

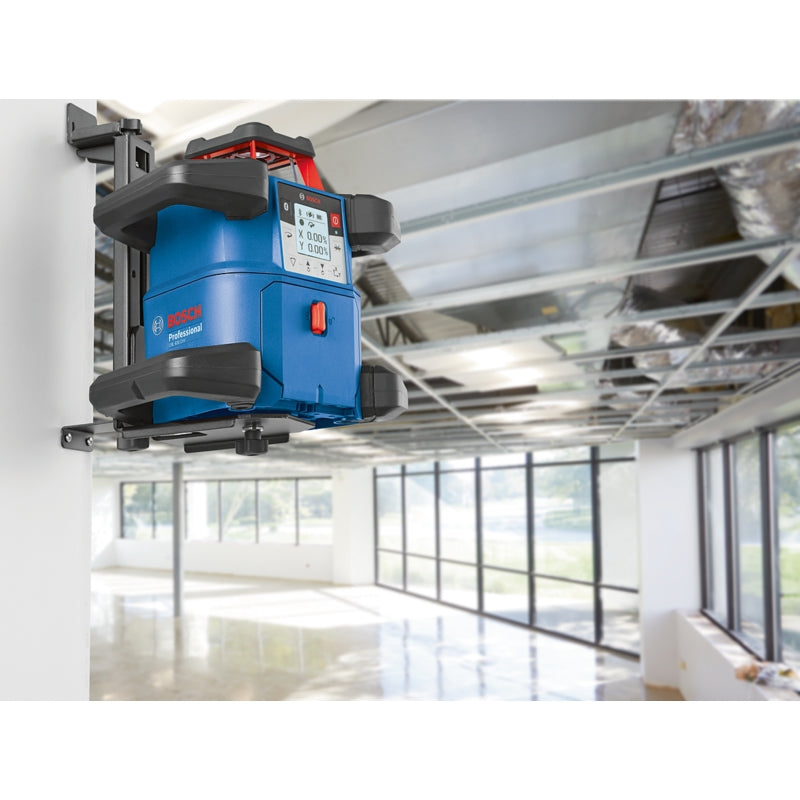

• 1 x Wall Mount WM 6 Professional

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
