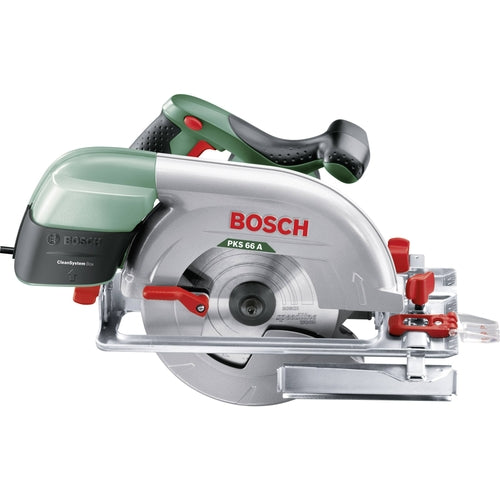

Bosch PKS 66 AF Hand-Held Circular Saw 190mm - 1600W | 0603502002

Bosch PKS 66 AF Hand-Held Circular Saw 190mm - 1600W | 0603502002 (Excludes Guide Rail - View Scope of Delivery).

Gain the power to tackle straight cuts on tough materials.

User benefit:

• 1,600 W motor offers the power necessary to tackle tough jobs
• Compact parallel guide provides extra accuracy for straight cuts

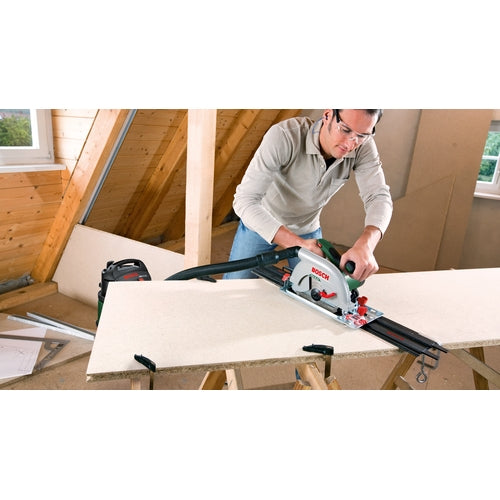

• Groove in footplate fits into guide rail system
• CutControl offers added accuracy while following drawn line

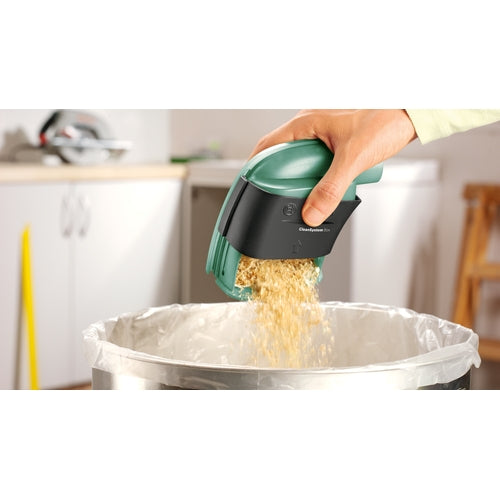

• CleanSystem Box limits particles in the work area

Functions:

• Spindle lock
• Speedline saw blade
• Dust/chip box
• Bosch CutControl
• Softgrip
• Groove in sole plate for guide rail system

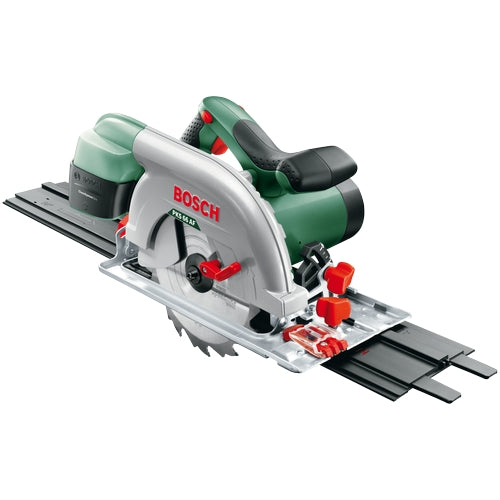

• Guide rail system

Technical data:

Power input: 1.600 W
Circular saw blade rated diameter: 190 mm
Circular saw blade bore size: 30 mm
No-load speed: 5,000 rpm
Baseplate: 160 x 327 mm
Protective guard: Aluminium
Cutting depth range at 90°: 0 – 66 mm
Cutting depth range at 45°: 0 – 48 mm
Weight: 5,4 kg
Voltage: 240 V
Tool dimensions (L x W x H): 454 x 336 x 275 mm
Weight including packaging: 7,24 kg
Packaging dimensions (length): 454 mm
Packaging dimensions (width): 336 mm
Packaging dimensions (height): 275 mm
Packaging dimensions (L x W x H): 454 x 336 x 275 mm

Noise/vibration information:

Sound pressure level: 92 dB(A)
Sound power level: 103 dB(A)
Uncertainty K: 3 dB

Scope of Delivery:

• Carton

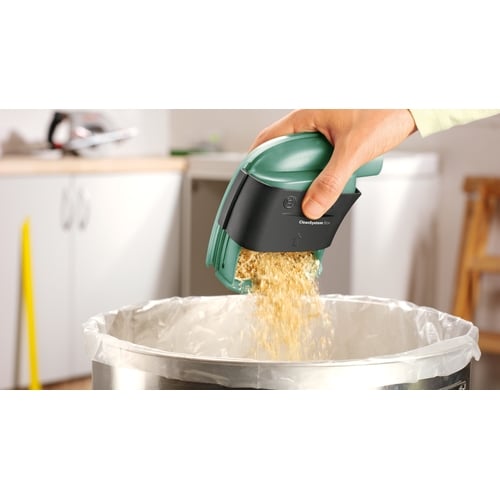

• CleanSystem Box 2 609 255 731

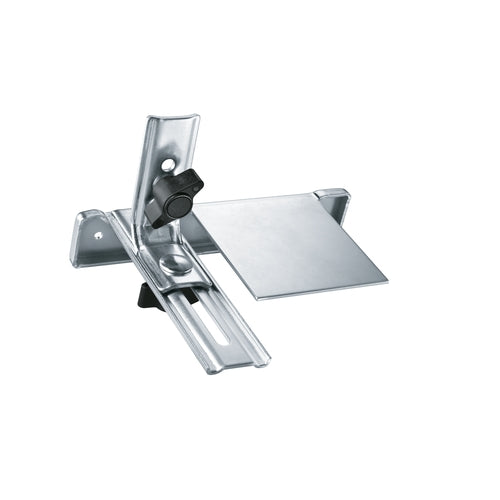

• Parallel guide 2 608 005 018
• Tungsten carbide saw blade Speedline Wood 2 608 640 800
• Excludes guide rail (sold seperately)
