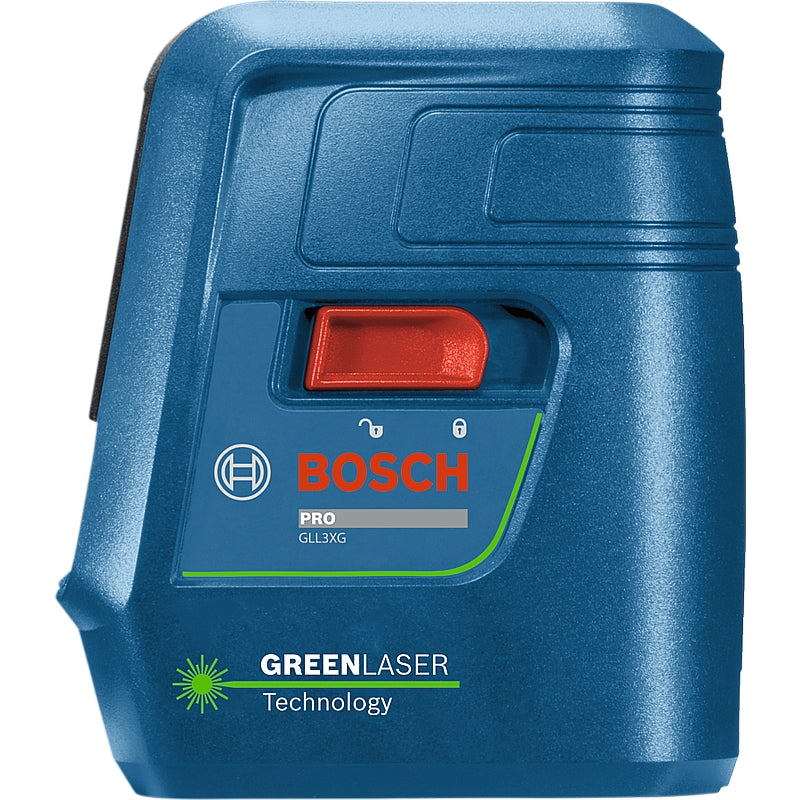

Bosch PRO GLL3XG Line Laser | 0601065FG0.
The Bosch PRO GLL3XG Line Laser is designed to provide fast, accurate, and highly visible alignment for professional tradespeople. Equipped with advanced green laser technology, it offers up to four times better visibility than comparable red laser lines, making it easier to work in bright indoor environments. Furthermore, its 20m working range allows efficient alignment across larger areas.

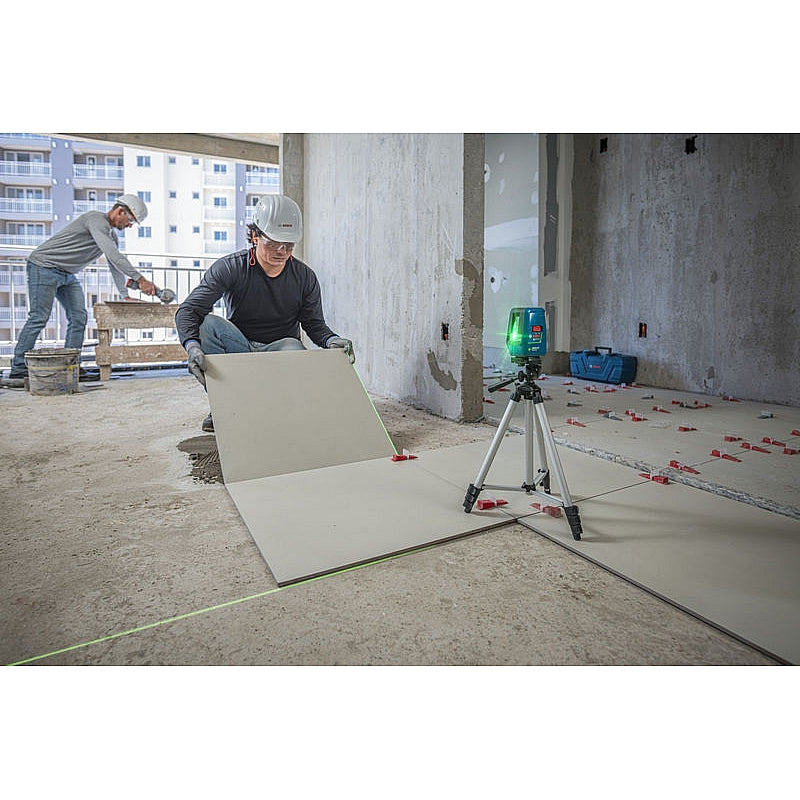

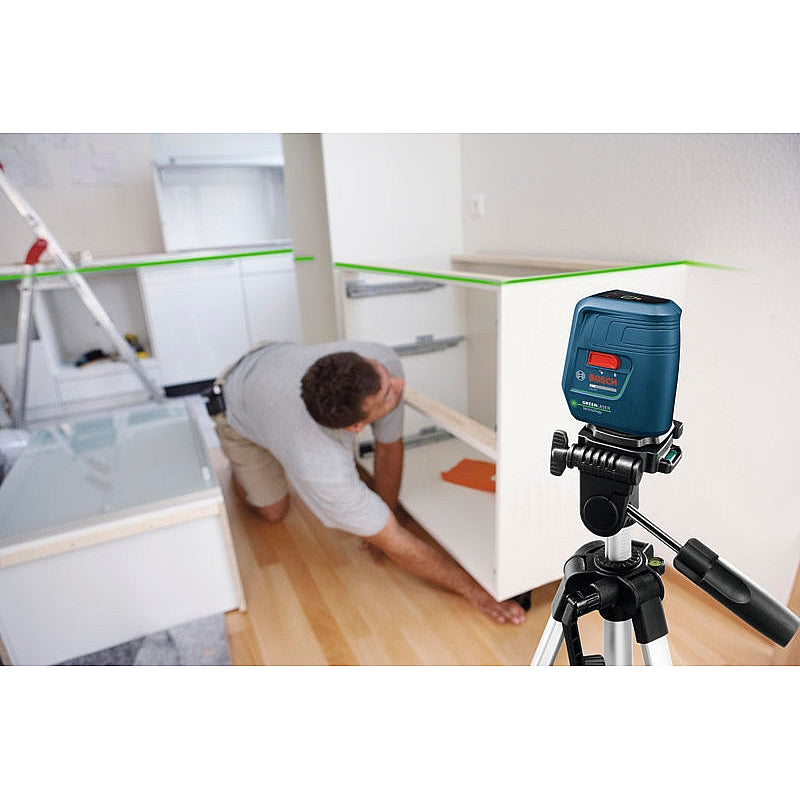

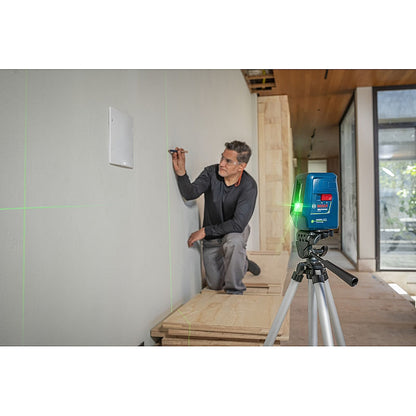

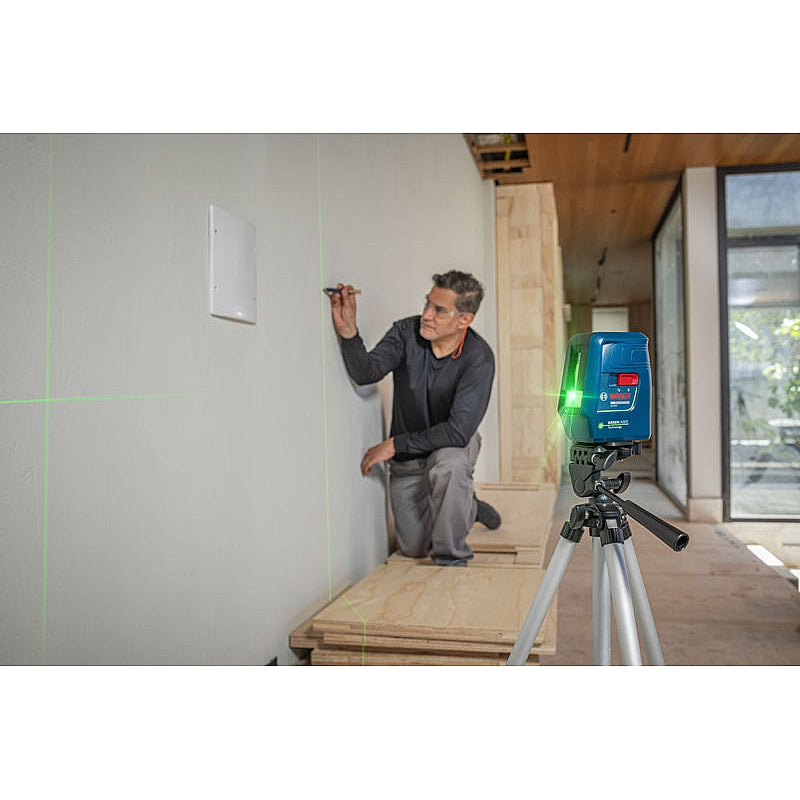

The laser projects three lines, including one horizontal line and two vertical lines, with a second vertical side line positioned at 90° for convenient layout work. As a result, tasks such as drywall installation, window fitting, socket positioning, tile laying, panel alignment, cabinet installation, framework construction, and room layout planning become faster and more precise.
In addition, the intuitive two-switch design simplifies operation and allows users to focus on the task at hand. The integrated smart pendulum system automatically self-levels the laser and alerts users to out-of-level conditions through flashing laser lines and audible beeping. When switched off, the pendulum lock protects the internal mechanism during transport, enhancing reliability and durability on site.
Features & Benefits:
-
Green Laser Technology: Delivers up to four times better visibility than red laser lines for improved viewing in bright indoor conditions.
-
20m Working Range: Supports alignment tasks across larger working areas.
-
Three Laser Lines: Projects one horizontal and two vertical lines for versatile alignment and layout applications.
-

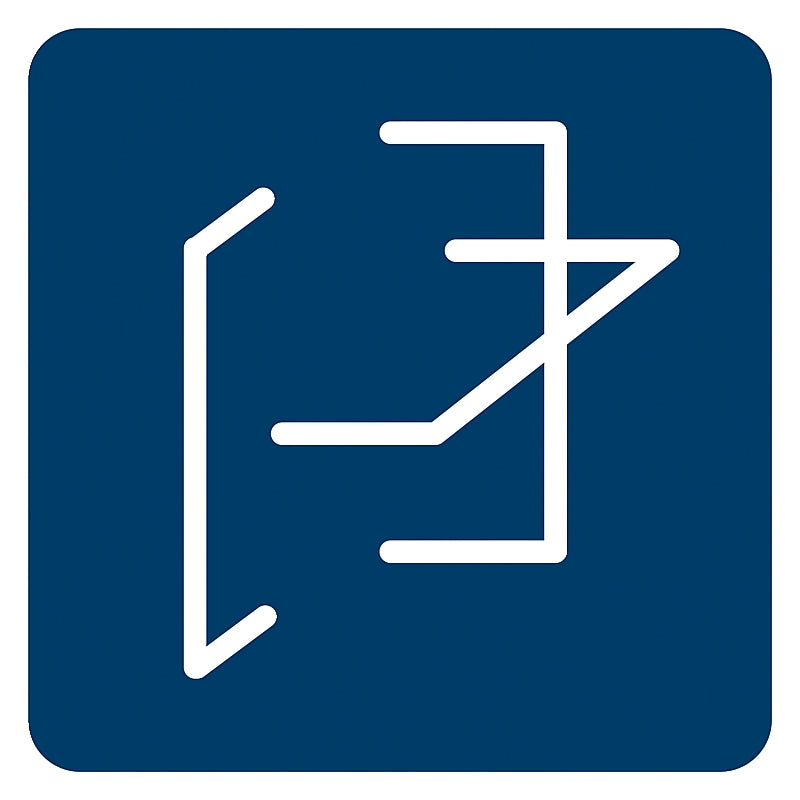

90° Vertical Side Line: Simplifies room layout planning, framework installation, and positioning tasks.
-
Self-Levelling System: Automatically levels the laser for greater accuracy and efficiency.
-
Out-of-Level Warning: Flashing laser lines and audible alerts notify users when the tool is outside its self-levelling range.
-
Intuitive Two-Switch Operation: Provides straightforward and user-friendly control.
-
Pendulum Lock: Protects the internal levelling mechanism during transportation and storage.
-

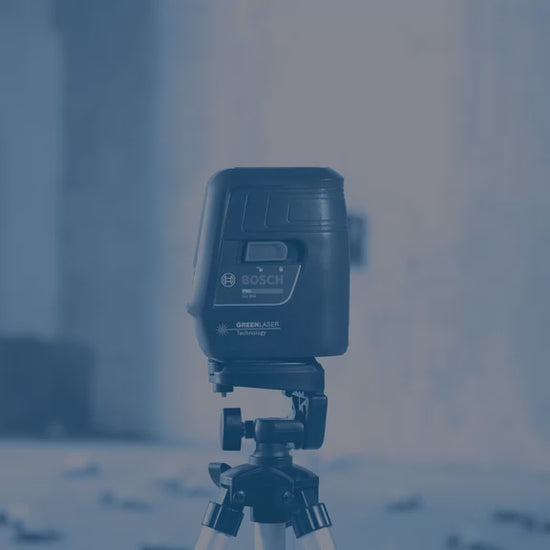

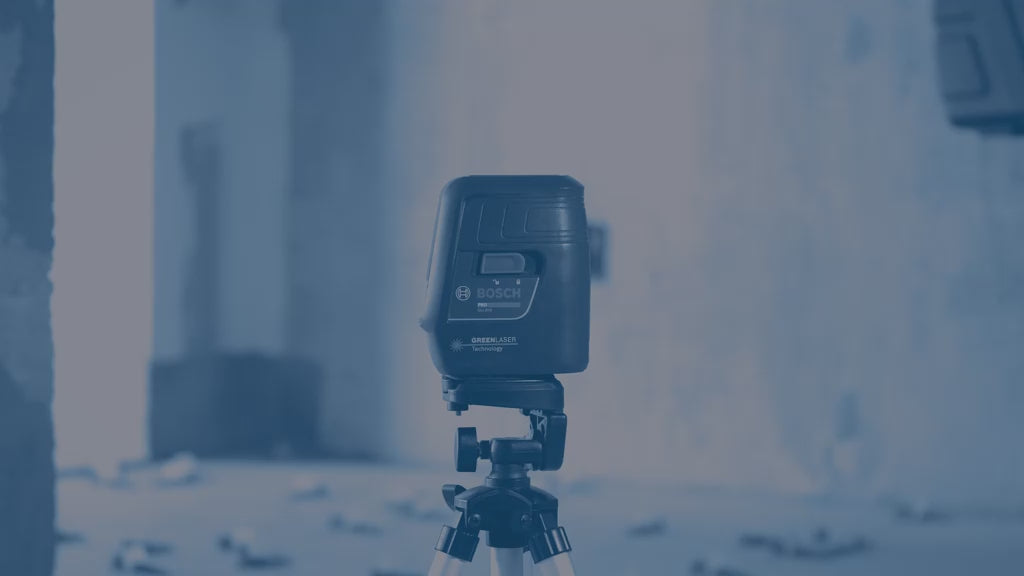

Tripod Compatible: Features a 1/4" (6.35mm) tripod thread for compatibility with standard tripods.
-
Professional Versatility: Suitable for drywalling, tiling, window installation, socket mounting, panel alignment, cabinet installation, and framework construction.
Specifications:
-
Code: 0601065FG0
-
Order Number: 0.601.065.FG0
-
Product Type: Line Laser
-
Battery Voltage: 4 x 1.5V LR6 (AA)
-
Power Supply: 4 x 1.5V LR6 (AA)
-
Laser Diode: 635nm, <1mW
-
Laser Class: 2
-
Laser Line Colour: Green
-
Projection: 3 Lines
-
Working Range: 20m
-
Working Range Without Receiver: 20m
-
Accuracy: ±0.5mm/m
-
Self-Levelling Range: ±4°
-
Levelling Time: 6 Seconds
-
Operating Temperature: -10°C to 40°C
-
Storage Temperature: -20°C to 70°C
-
Tripod Thread: 1/4" (6.35mm)
-
Weight: Approximately 0.485kg
Scope of Delivery:

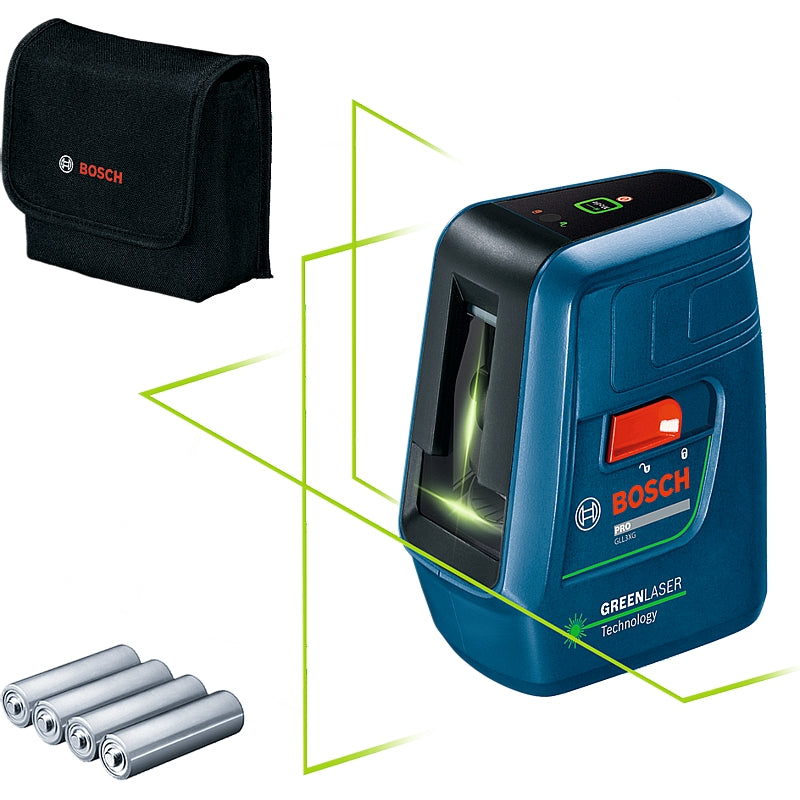

- 1 x Bosch PRO GLL3XG Line Laser
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
