Bosch D-Tect 200 C Wall Scanner Detector | 0601081600

Bosch D-Tect 200 C Wall Scanner Detector | 0601081600.

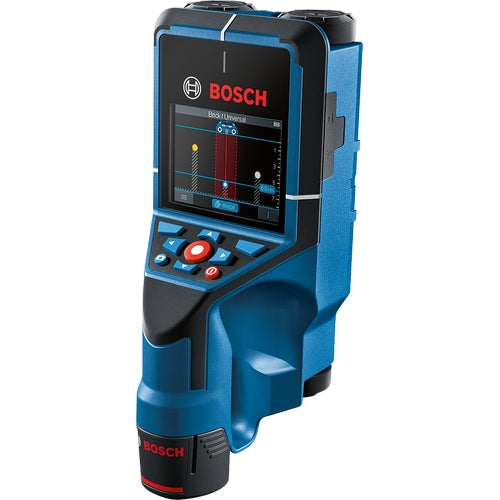

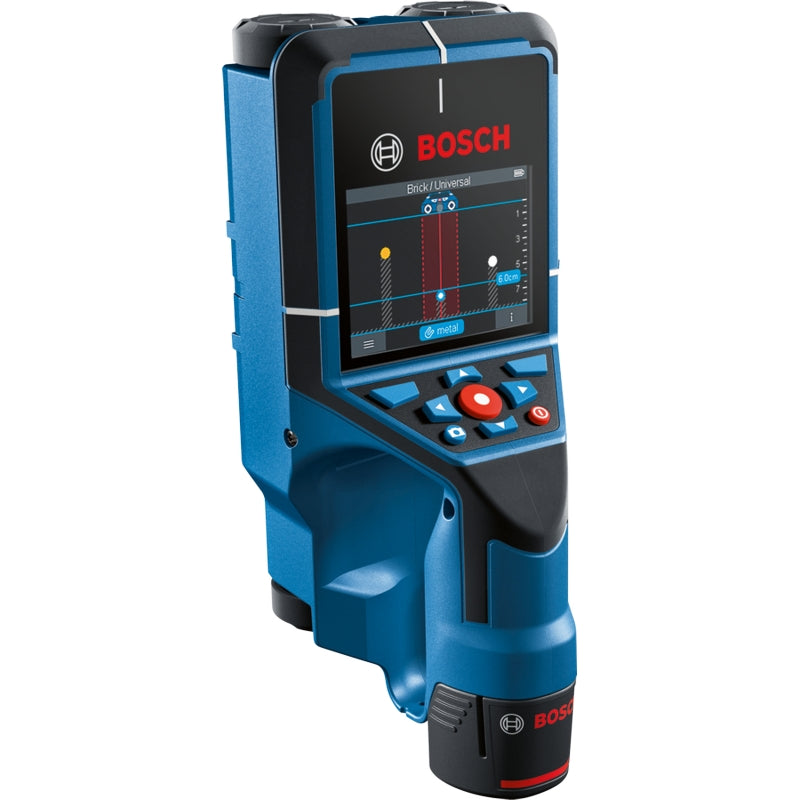

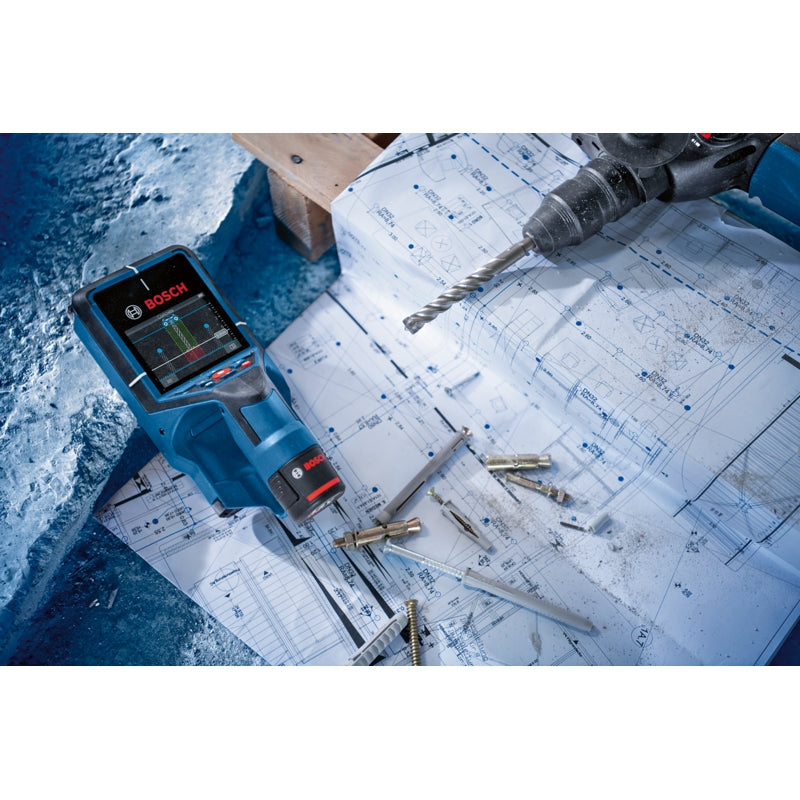

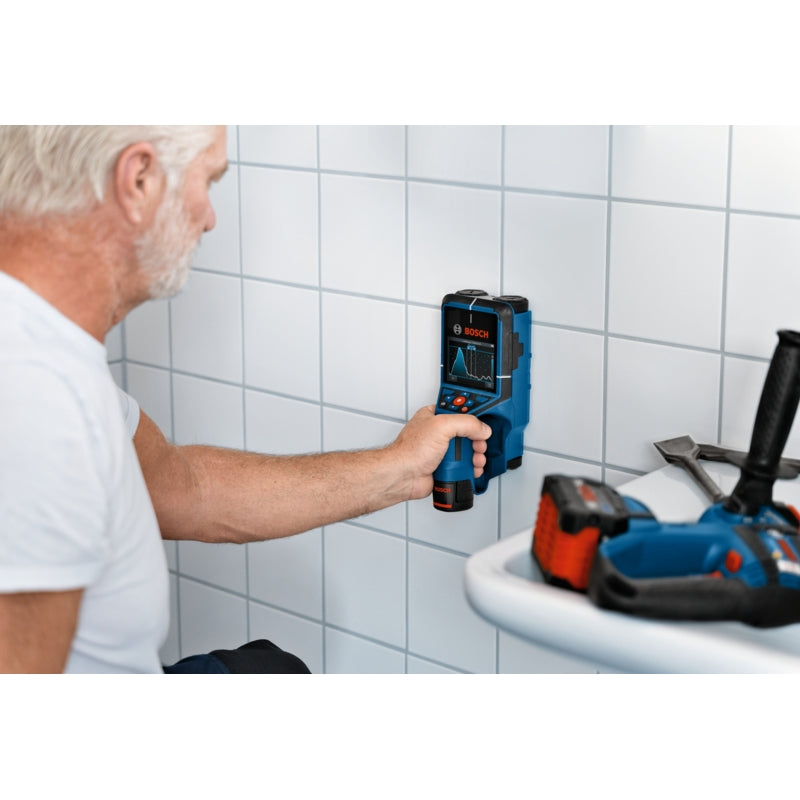

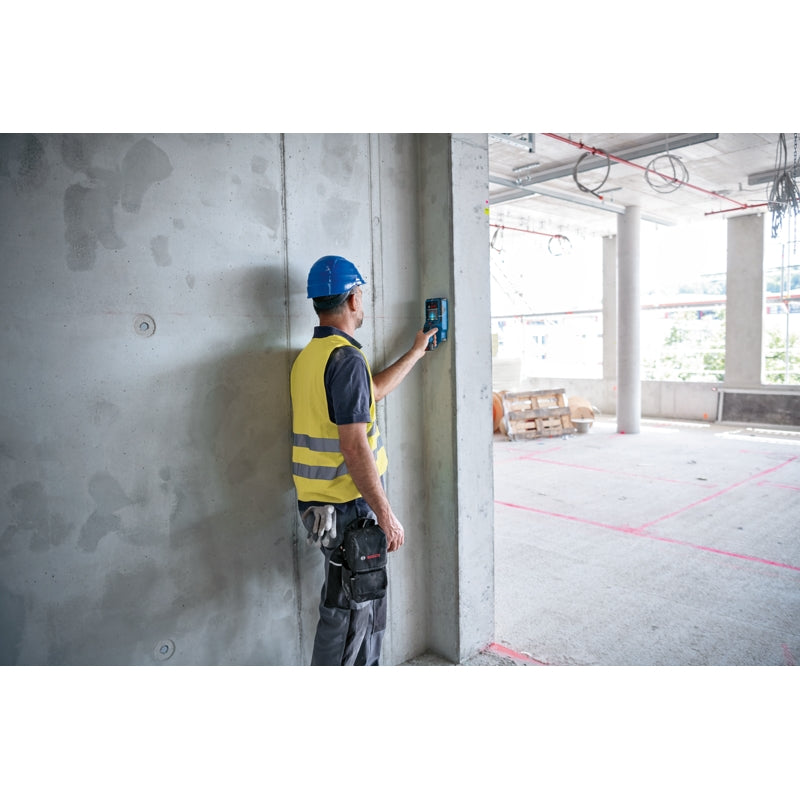

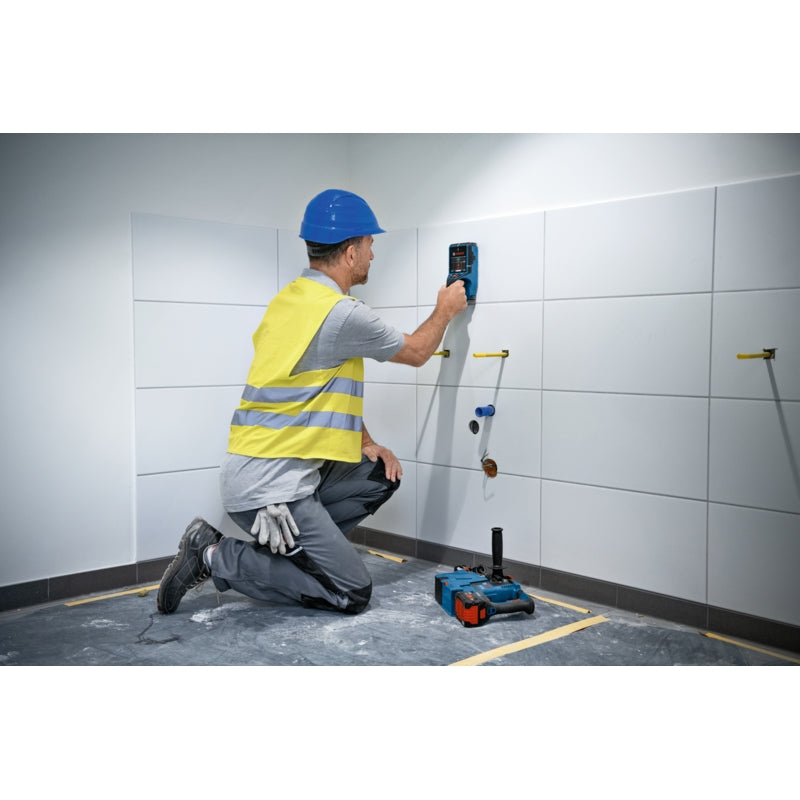

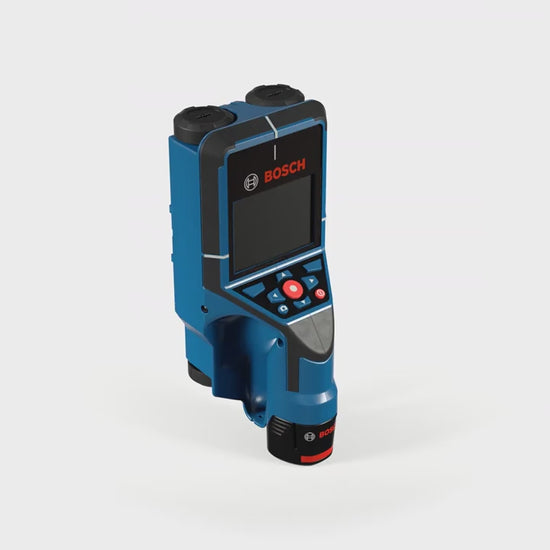

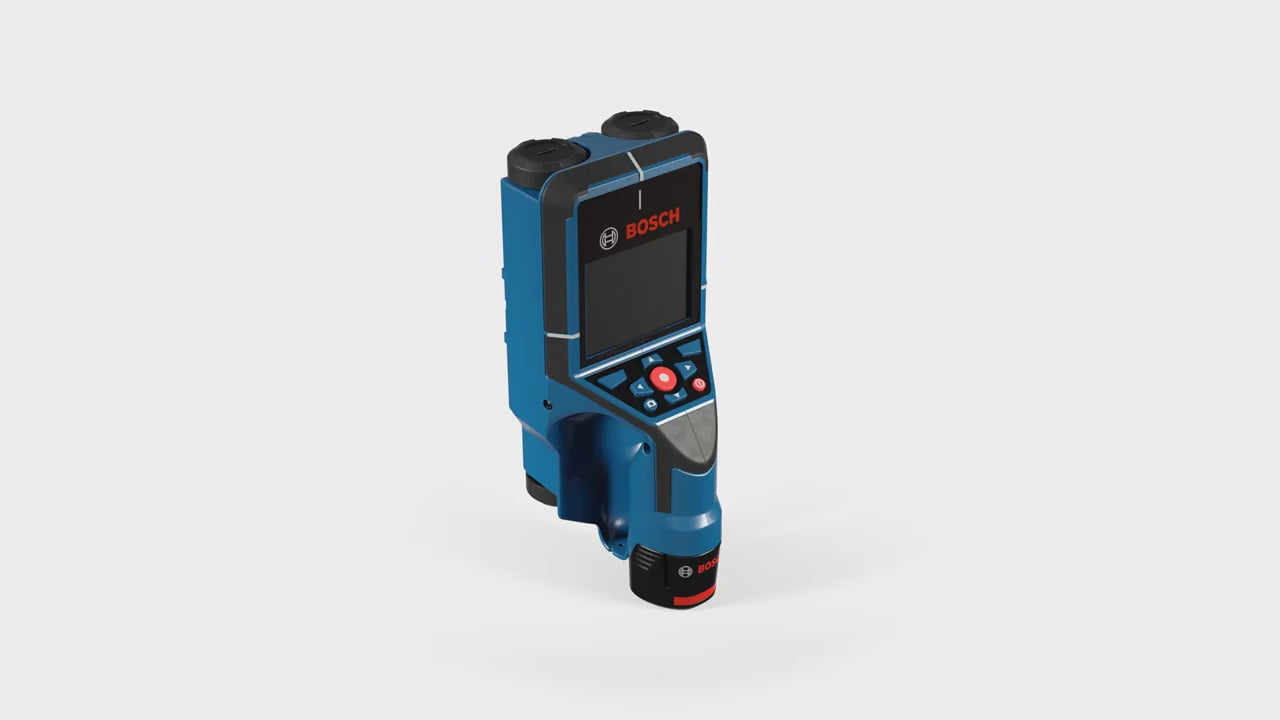

The Bosch D-Tect 200 C Professional Wall Scanner Detector is designed for exceptional results in both indoor and outdoor applications. Equipped with Bosch Radar Technology and a modern user interface, it provides precise detection of magnetic and non-magnetic metals, live and non-live cables, empty and water-filled plastic pipes, and wooden substructures. The device supports multiple views, including Spot View for hard-to-reach areas, ensuring optimal detection flexibility.

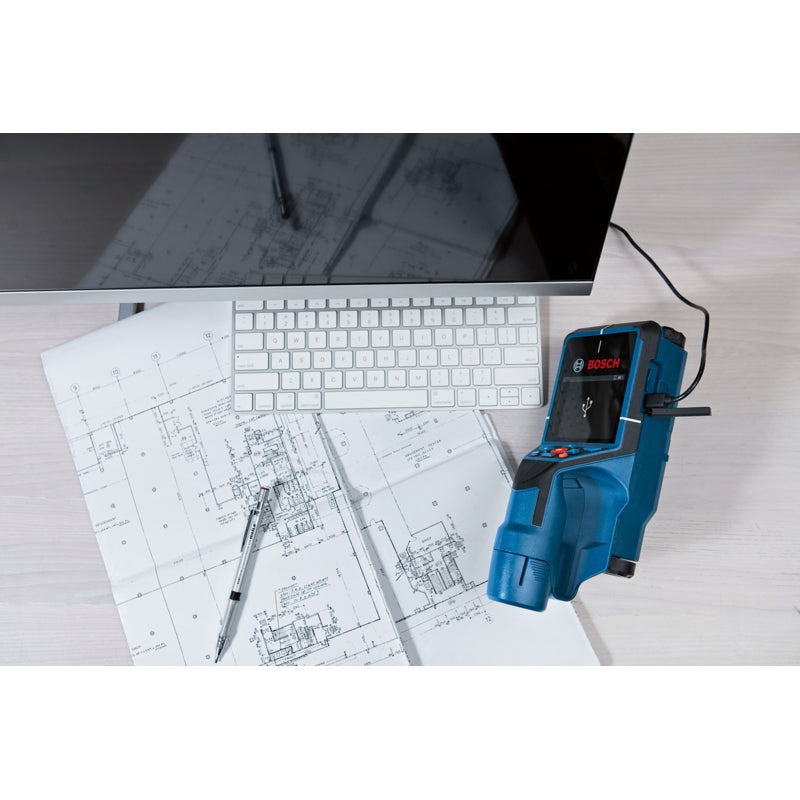

For documentation purposes, the D-Tect 200 C features a screenshot function that allows users to capture and download images via USB-C® or SD card. This ensures accurate records of detected objects and their positions. With a maximum detection depth of 200 mm, the scanner indicates the depth of detected objects, helping to avoid drilling damage and facilitating reliable construction work.

Features & Benefits:

• Bosch Radar Technology: Provides precise and reliable detection for a variety of materials.
• Multiple Views: Flexible detection options including Object, Spot, Signal 2D, and Signal View for different applications.
• Screenshot Function: Enables quick documentation, downloadable via USB-C® or SD card.
• Wide Detection Range: Detects objects up to 200 mm deep for enhanced safety and planning.
• Dual Power Source: Compatible with 12 V Li-Ion, 4 x 1.5 V LR6, or 4 x 1.2 V HR06 (AA) batteries for versatile use.
• Robust and Portable: Compact, lightweight design with IP 5X dust and splash protection ensures durability on-site.
• Additional Functions: Includes leakage detection and distance measurement for versatile applications.

Specifications:

• Code: 0601081600
• Battery Voltage: 12.0 V
• Bosch Radar Technology: Yes
• Detectable Objects: Magnetic metals (e.g., iron), Non-magnetic metals (e.g., copper), Live cables, Non-live cables, Empty plastic pipes, Water-filled plastic pipes, Wooden substructures
• Max. Detection Depth: 200 mm
• Detection Depth, Dry Concrete: 200 mm
• Detection Depth, Early Age Concrete: 60 mm
• Detection Depth, Other Wall Types: 80 mm
• Detection Depth, Wooden Substructures: 38 mm
• Accuracy: ± 5 mm
• Views: Object View, Spot View, Signal View 2D, Signal View
• Wall Types: Brick/Universal, Concrete, Drywall, Panel Heating, Early Age Concrete, Horizontal Coring Brick, Vertical Coring Brick
• Dust and Splash Protection: IP 5X
• Documentation: USB-C, SD Card
• Updatable: Yes
• Material Identification: Live cable, Magnetic metal, Non-magnetic metal, Non-metal material
• Power Supply: 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA)
• Weight (approx.): 0.7 kg
• Additional Function: Leakage detection, Distance measurement

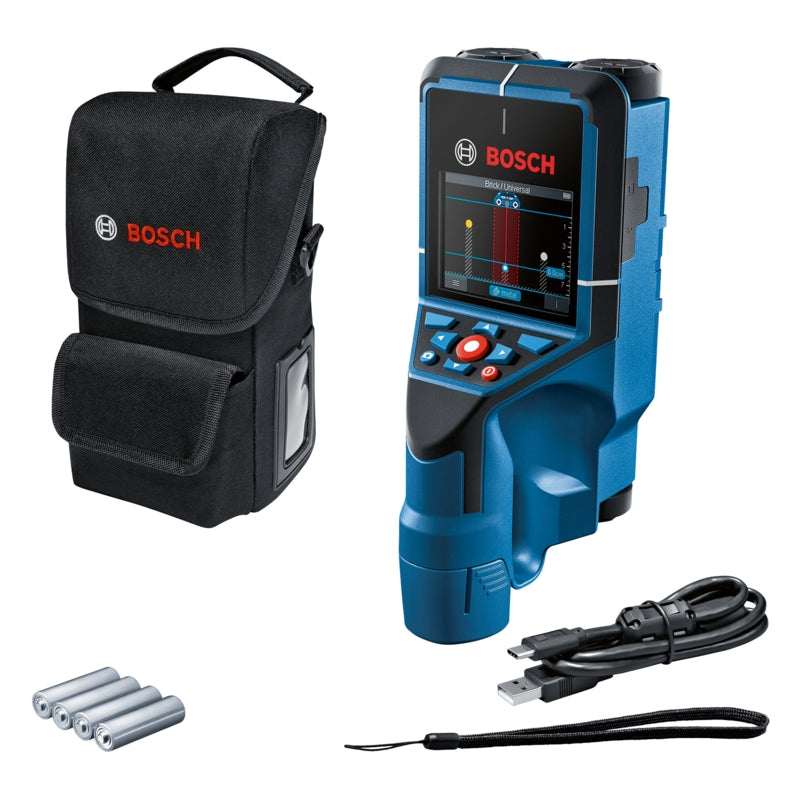

Scope of Delivery:

• 4 x 1.5 V LR6 battery (AA)
• 1 x Battery Adapter | 1600A017HF / 1600A017HH
• 1 x Hand Strap
• 1 x Pouch
• 1 x USB-C® Cable

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
