16mm

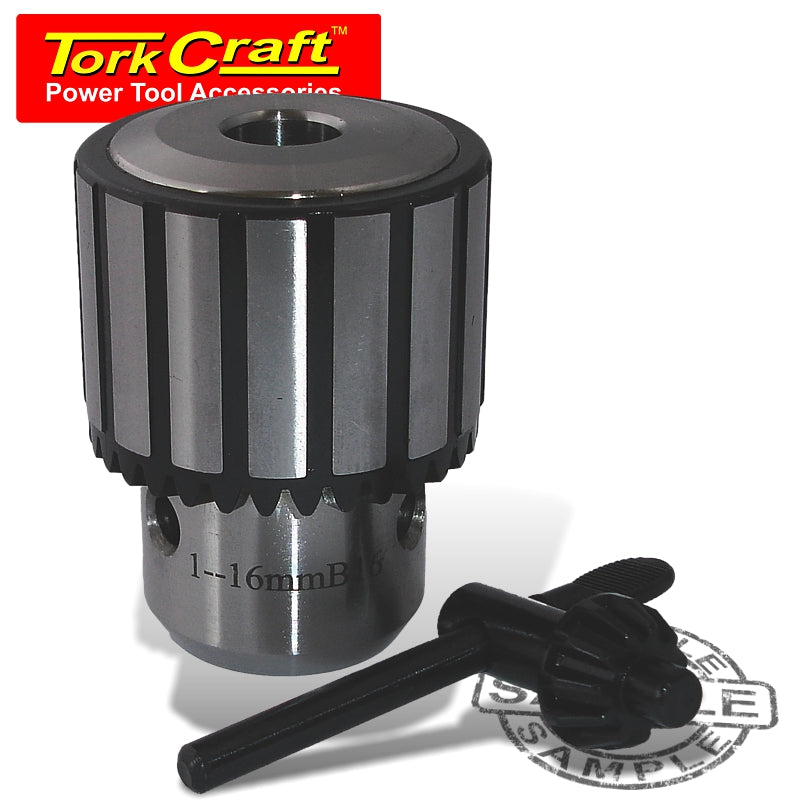

Keyed chuck with B16 taper. This chuck should fit most drill presses. A correct
taper adapte may be required to fit the chuck to your machine application.
Installation Info
Clean both tapers of all grease and grit. With the chuck jaws completely
retracted into the chuck and using a thin piece of wood to protect the chuck nose,
tap the chuck into place on the spindle/taper adaptor.
To remove chuck from arbor
Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right.
By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft.
