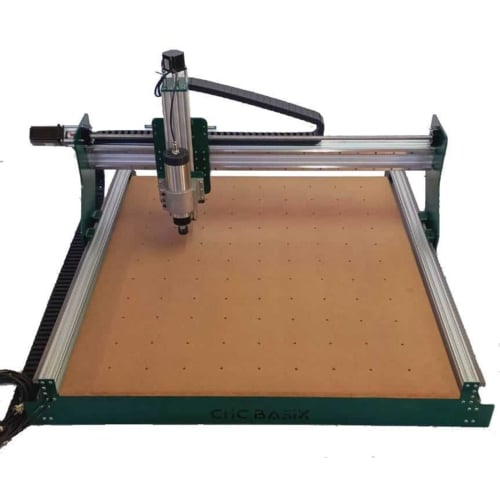

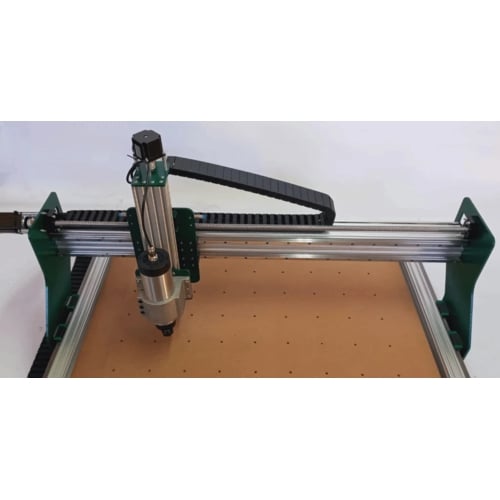

CNC BASIX - Ball Screw CNC Machines with MACH3 Controllers.

The CNC BASIX - Ball Screw CNC Machine with MACH3 Controller is built for demanding applications, delivering precise and efficient cutting performance. Designed to handle extended cutting hours, it offers superior accuracy when working with aluminium, perspex, and wood.

With HGR15 linear rails and SFU2010 ball screws on the X and Y axes, the machine ensures smooth, stable motion. The Z-axis operates with a T8 lead screw and HGR15 linear rails, further enhancing precision. A Makita RT0700C 700W Router powers the cutting process, featuring a manual speed control ranging from 12,000 to 30,000 RPM.

The maximum feed rate reaches 1,000 mm/min, while the maximum jog rate is 2,000 mm/min. For added customisation, users can upgrade to 1.5kW, 2.2kW, or 3kW spindle kits, with options for air-cooled and water-cooled models, as well as a 3kW automatic tool changer.

Features & Benefits:

  • High-Workload Capability: Designed for long hours of cutting without compromising accuracy.
  • Rigid Construction: Aluminium frame with 3mm steel front and back panels.
  • Precision Ball Screw Drive: HGR15 linear rails and SFU2010 ball screws on the X & Y axes.
  • Pass-Through Cutting: Open-ended design allows processing of longer materials.
  • Makita RT0700C Router: 700W power with manual speed control (12,000 - 30,000 RPM).
  • Maximum Cutting Depth: 50mm (depending on cutting bit used).
  • Customisation Options: Upgradeable spindle kits (1.5kW - 3kW) and an automatic tool changer.
  • Complete Cable Management: Cable drag chains ensure clean and organised operation.
  • Includes Accessories: Five cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm) and collets (3mm, 6mm).
  • MDF Wasteboard & Clamps: Includes an MDF wasteboard with fastening clamps for securing materials.

Machine Footprint & Work Area:

1.0M x 1.0M *Footprint | *Work Area: 985mm x 1020mm | 740mm x 740mm x 100mm
1.5M x 1.5M *Footprint | *Work Area: 1520mm x 1480mm | 1240mm x 1240mm x 100mm
1.5M x 2.0M *Footprint | *Work Area: 1520mm x 1985mm | 1240mm x 1740mm x 100mm
1.5M x 3.0M *Footprint | *Work Area: 1520mm x 2985mm | 1240mm x 2740mm x 100mm
2.0M x 3.0M *Footprint | *Work Area: 2020mm x 2985mm | 1740mm x 2740mm x 100mm

*Footprint: At the base, stock size measured from the base.
*Work Area: Stock size.

Requirements:

  • Personal computer or Laptop running Windows 7, 8 or 10.
  • USB port on computer
  • Mach3 Operating Software & License Included
  • Easel 30 Days Free Trial - Online Cloud Based App used for designing and cutting process. R450 per month or R4000 for 12 months - depending on rand/USD exchange rate

Alternative Designing Software:

  • Vectric - Basic training available at additional costs
  • Fusion 360 - Basic training available at additional costs

Mechanical Specifications:

  • 1x Nema 23 closed loop stepper motors 2.2Nm
  • 3x Nema 34 closed loop stepper motors 8.5Nm
  • 4x Closed Loop Motion Controllers
  • HGR15 linear rails and SFU2010 ball screws on X & Y axis.
  • Dual motors on Y axis.

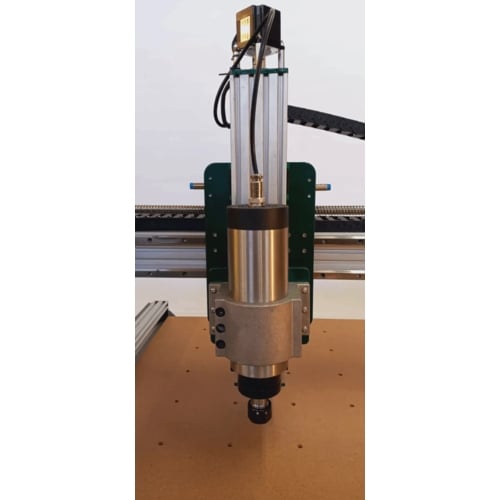

  • T8 8mm lead screw and HGR15 linear rails on Z axis
  • 7x Proximity Sensors - 2 on each axis (A+, A-, Y+, Y-, X+, X-, Z+)
  • Configured resolution: less than 0.1mm
  • 65mm Router Spindle Mount (suitable for Makita RT0700C).

Electronics Specifications:

Controller Board: 4-axis stepper motor driver.
Power Supply: 24V 10A 250W.
Power Input: 230V AC (power cable provided).
Emergency Stop: Included.
USB Connection: USB cable provided.
Accessories: Includes all necessary fittings, cables, a Z-probe, five fishtail cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm), four fastening clamps with bolts, and a memory stick preloaded with software.

Delivery, Setup & Training:

  • Compulsory delivery, setup, and minimal training of the machine available at an additional cost.
  • Delivery available within South Africa only.
  • Delivery Time for Gauteng & Surrounding Provinces: 3-5 Weeks.
  • Delivery Time for Northern, Eastern & Western Cape: 5-8 Weeks.

Please Note: Images are for illustrative purposes only. The items included in the delivery are specified in the product content/description.

Upgrades:

We also have upgrade options available, simply complete the form below with your details, and we will send you a quote or proforma by email! Don’t worry; your information is safe with us! We promise not to share your details with any third parties—your secrets are safe! Plus, we strictly follow our privacy policy to keep everything under wraps.[/vc_column_text]
