CNC BASIX - Ball Screw CNC Machines with MASSO Controllers.

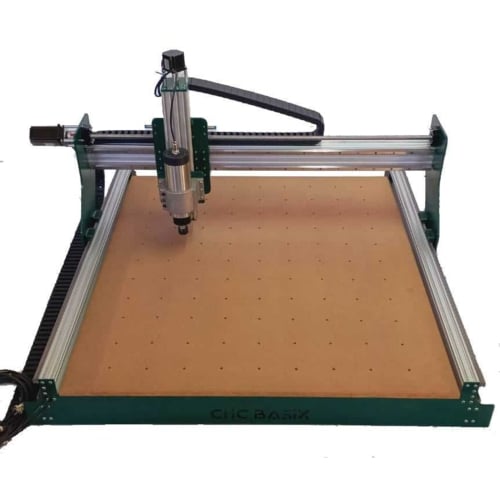

The CNC BASIX - Ball Screw CNC Machine with MASSO Controller is the ideal solution for high-workload cutting of aluminium, perspex, wood, and other materials. This machine offers excellent reliability and accuracy, even during extended operational hours. Equipped with the powerful MASSO Controller, it provides a seamless experience for users, enabling cutting tasks without the need for a computer connection.

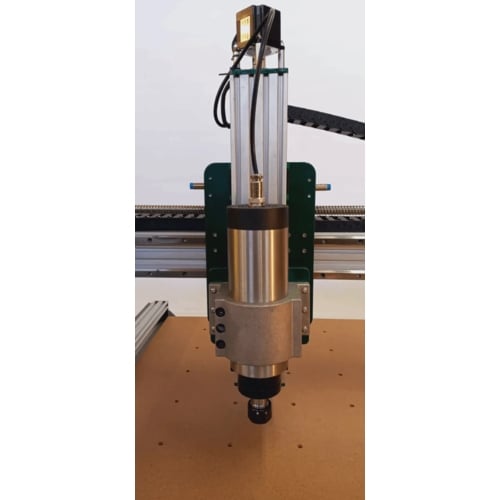

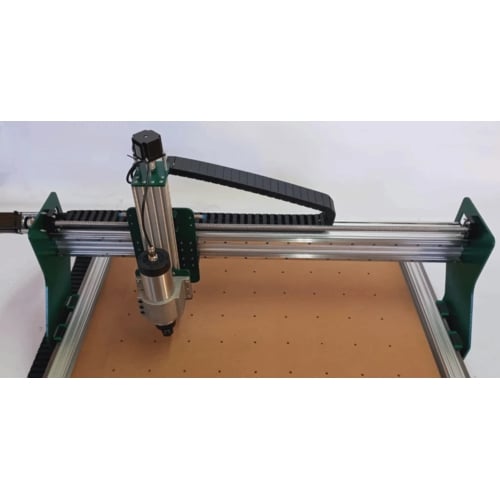

The machine features an all-aluminium frame and 3mm steel front and back panels for added durability. The X and Y axes are driven by HGR15 linear rails and SFU16 ball screws, ensuring precision, while the Z axis is controlled by a T8 8mm lead screw and HGR15 linear rails.

With a cutting depth of 50mm (depending on the type of cutting bit), this machine offers excellent versatility for various materials. The Makita RT0700C 700W router provides manual speed control ranging from 12,000 RPM to 30,000 RPM, and users can achieve maximum feed rates of 6,000 mm/min and a maximum jog rate of 6,000 mm/min for fast, precise movement.

Customization options include upgrades such as servo motors, spindle kits (1.5kW to 2.2kW), and laser attachments, making it adaptable to a wide range of needs.

Features & Benefits:

• High Workload Capacity: Reliable for extended use, cutting aluminium, perspex, and wood with precision.
• Precision Ball Screw Drive: HGR15 linear rails and SFU16 ball screws ensure smooth and accurate motion on X and Y axes.
• Stand-Alone Controller: MASSO controller operates without a computer connection, simplifying setup and operation.
• Customisation Options: Offers upgrades like servo motors, spindle kits (1.5kW-2.2kW), and laser attachments.
• Makita RT0700C Router: 700W power with speed control (12,000 RPM - 30,000 RPM) for flexible cutting.
• Auto Homing & Squaring: Ensures quick and accurate setup for cutting tasks.
• Cutting Depth of 50mm: Depending on the bit, offering flexibility for various material thicknesses.
• Durable Frame: Aluminium frame and steel panels enhance the machine's longevity and stability.
• MDF Wasteboard & Fastening Clamps: Provides a stable work surface for secure cutting.

Machine Footprint & Work Area:

1.0M x 1.0M *Footprint | *Work Area: 985mm x 1020mmmm | 740mm x 740mm x 100mm
1.5M x 1.5M *Footprint | *Work Area: 1520mm x 1480mm | 1240mm x 1240mm x 100mm
1.5M x 2.0M *Footprint | *Work Area: 1520mm x 1985mm | 1240mm x 1740mm x 100mm
1.5M x 3.0M *Footprint | *Work Area: 1520mm x 2985mm | 1240mm x 2740mm x 100mm
2.0M x 3.0M *Footprint | *Work Area: 2020mm x 2985mm | 1740mm x 2740mm x 100mm

*Footprint: At the base, stock size measured from the base.
*Work Area: Stock size.

Requirements:

• Personal computer or laptop running Windows 7, 8, or 10.
• LAN port on computer to connect to the electronics controller box (LAN cable provided).
• Easel 30-Day Free Trial - Cloud-based design and cutting software.

Alternative Designing Software:

• Vectric: Basic training available at additional cost.
• Fusion 360: Basic training available at additional cost.

Mechanical Specifications:

Cutting Depth: 50mm (depending on the type of bit used)
Drive System: HGR15 linear rails with SFU16 ball screws on X & Y axes, T8 8mm lead screw on Z axis
Motors: 4x Nema 23 stepper motors (30kg.cm)
Resolution: Configured to less than 0.1mm
Maximum Jog Rate: 6,000 mm/min
Maximum Feed Rate: 6,000 mm/min
Router Compatibility: Makita RT0700C (65mm spindle mount)
Frame: Aluminium frame with 3mm steel front and back panels

Electronics Specifications:

Controller Board: 4-axis stepper motor driver (MASSO controller with license key)
Power Supply: 12V 2.4A 100W and 24V 4.5A 100W
Power Input: 230V AC (power cable provided)
Emergency Stop: Included
LAN Connection: LAN cable provided
Accessories: All necessary fittings and cables

MASSO G3 Features:

Powerful. Stable. Guaranteed.

• MASSO G3 is the most stable, reliable and easy-to-use CNC controller money can buy. Escape the reliability issues of PC-based controllers, which are vulnerable to external design flaws, incompatible software updates and viruses. No need to worry about installing drivers or motion cards, just wire the MASSO to your motor drives and enter calibration values to start machining.

With MASSO G3 you get:

• Fully integrated hardware and software specifically designed to run CNC machines independently of a PC.
• Lathe, Mill, Router, Plasma or WaterJet machine control with up to 5-axis control.
• Built-in Wi-Fi for PC connectivity via MASSO-Link software. Remotely monitor machine status and send g-code files.
• Simple, easy-to-use screen layout.
• Tool path display so you can see and position your job in real time.
• Four USB ports to directly connect keyboard, mouse, touchscreen and pen drive without the need for a USB hub.
• Direct spindle control and MPG handwheel dial support.

Delivery, Setup & Training:

• Compulsory delivery, setup, and minimal training of the machine available at additional cost.
• Delivery available within South Africa only.
• Delivery Time for Gauteng & Surrounding Provinces: 3-5 Weeks.
• Delivery Time for Northern, Eastern & Western Cape: 5-8 Weeks.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.

Upgrades:

We also have upgrade options available, simply complete the form below with your details, and we will send you a quote or proforma by email! Don’t worry; your information is safe with us! We promise not to share your details with any third parties—your secrets are safe! Plus, we strictly follow our privacy policy to keep everything under wraps.[/vc_column_text]
