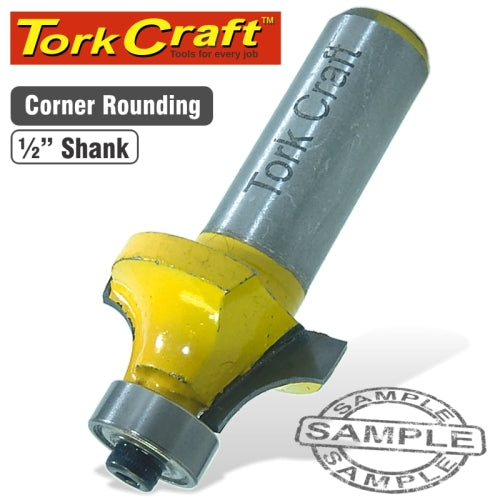

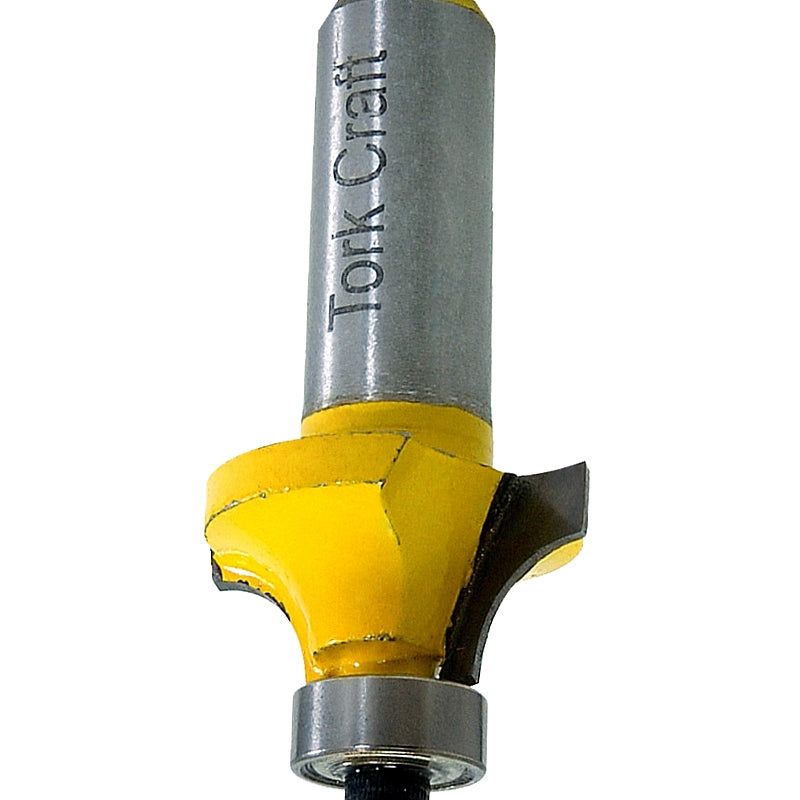

Tork Craft Corner Round Router Bit, 1" x 1/2", 5/16" Radius, 1/2" Shank | CKP1207

This
an affordable router bit range that is well supported throughout South Africa. All
our Tork Craft router bits are Tungsten tipped. Tork Craft is a well-known BRAND
in most retail stores.

At a glance:

½" Ø Shank router bit with a 7,9 mm (5/16") radius to profile
a roundover shape in wood.

Application:

This router bit is used with a plunge router to profile the edge of wood to produce
a rounded edge that has a 7,9 mm radius

Definition: The basic edge-forming
bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered
to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a
part of a complex one. Also known as roundover, rounding over, and quarter-round.
If a smaller pilot bearing is used, a second shoulder can be produced, in effect
making the bit a beading bit.

Please ensure that you select a router bit with a
shank (shaft) size that will fit your router. If are in doubt, contact us and we
will confirm if it will work for you.

safety

Please ensure that you select a router bit with a
shank (shaft) size that will fit your router. If are in doubt, contact us and we
will confirm if it will work for you.

consider safety for your health and the people around you
General safety suggestions: It is advisable to always follow Safety Guides and keep all equipment in a good condition. Never use blunt cutters and blades. These will simply overheat and disintegrate causing harm to people nearby. Eye protection – clean and scratch free Hearing protection – quality earmuffs Dust masks – discard old and dirty masks Switch machines OFF before leaving the workplace. Unplug machines before changing cutters.
Switch OFF	Eye Protection	Hearing Protection	Dust Mask

specifications

Shank dia. (d)	Radius (R)
12,7 mm (1/2 inch)	7,9mm (5/16 inch)

Explaining
the Specifications:

• (d) -> The diameter of the shank or shaft. This size
  should be the same as the collet size of your router. Example: a small router
  is mostly supplied with a quarter inch collet that is 6,35 mm inside diameter.
• Common collet sizes:
  • 1/4' collet = 6,35mm inside diameter
  • 8mm collet = 8mm inside diameter
  • 12mm collet = 12mm inside diameter
  • 1/2' collet = 12,7mm inside diameter
  • NOTE that the 12mm and
    the 12,7mm (1/2') sizing are often misunderstood. 1/4 inch is not 6mm but
    exactly
    6,35mm. A 6mm shank will not fit in a 1/4 in collet. Wrong sizes will either
    break the collet or the bit will fall out.
• TCT = Tungsten Carbide Tipped
• Allways stay in the MAX Speed range of router
  bit
