Creality HALOT-MAGE PRO 8K Resin 3D Printer | 1003040122

Creality HALOT-MAGE PRO 8K Resin 3D Printer | 1003040122.

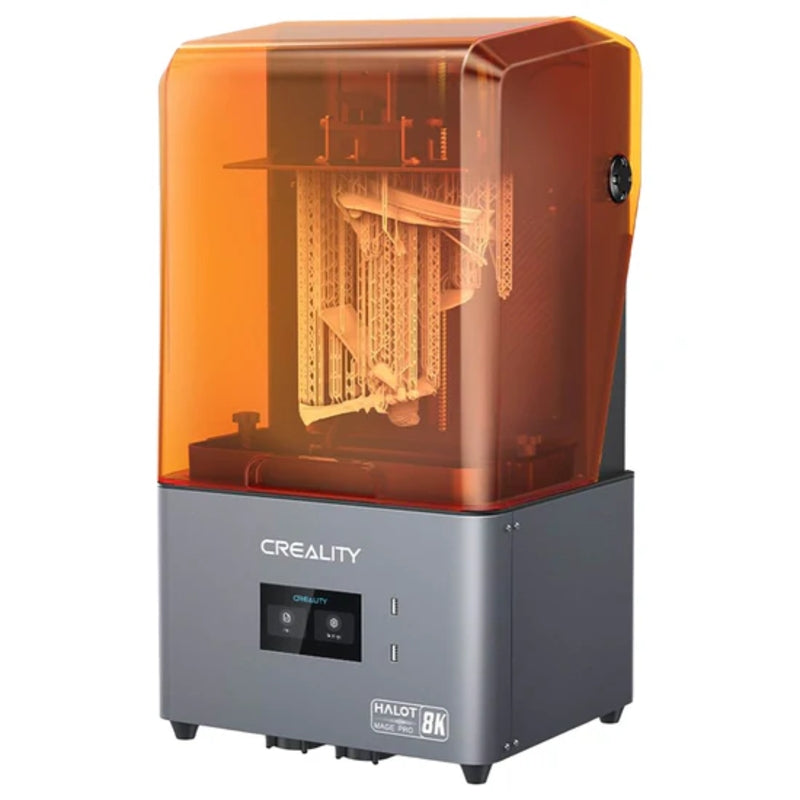

The Creality HALOT-MAGE PRO 8K is the latest evolution in Creality’s resin printer lineup, designed to produce high-precision models efficiently. It features an 8K (7680×4320) monochrome LCD screen providing 29.7μm XY resolution for crisp, detailed prints. Dual Z-axis rails ensure Z stability, while a glass LCD protector safeguards the screen from unexpected damage. The printer includes a built-in air filter to minimise resin odours and a MageArch flip lid for convenient access and ambient UV protection.

This Pro version surpasses the HALOT MAGE 8K with enhanced speed up to 170mm/h using Creality Fast Resin, a larger Z-axis motor, a smart resin auto refill pump, and an improved Integral Light Source 3.0 for uniform curing. Users can remotely monitor prints via Creality Cloud, control multiple printers, and benefit from HALOT OS and HALOT BOX software for seamless slicing and management. The HALOT-MAGE PRO supports USB, RJ45, and WiFi connections, providing versatile printing and monitoring options. Its compact 333×270×608mm (13.11×10.63×23.94") enclosure ensures a neat setup while maintaining powerful functionality for miniatures, prototypes, jewelry, and other high-detail applications.

Features & Benefits:

• 8K Monochrome LCD Screen: Produces ultra-detailed prints with 29.7μm XY resolution for smooth surfaces and crisp contours.
• Dual Z-Axis Rails: Improves Z-axis stability for precise layer alignment and reduced wobble.
• Glass LCD Protector: Protects the LCD screen from accidental damage and prolongs its lifespan.

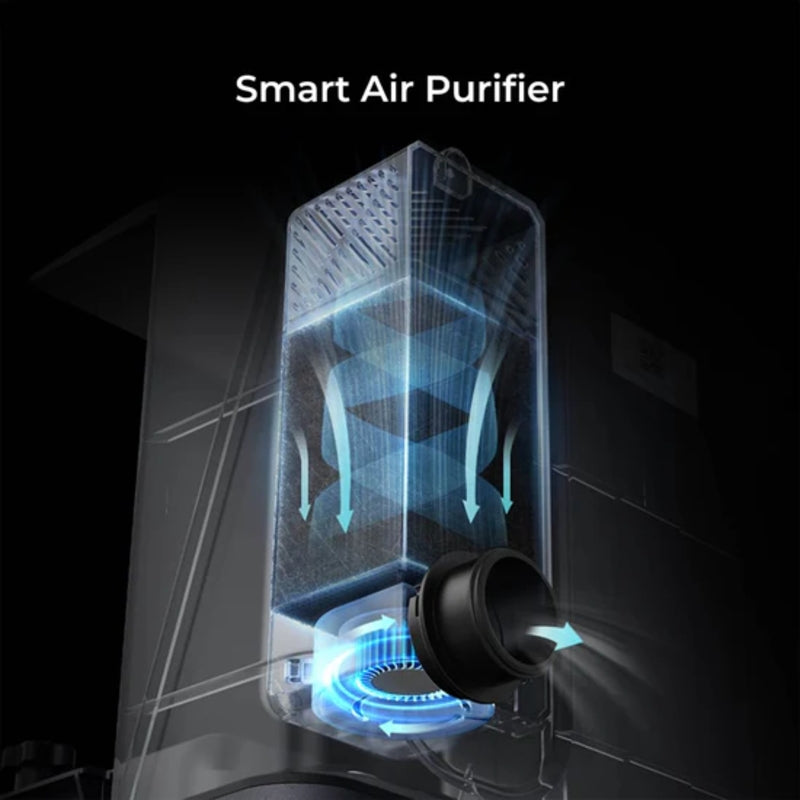

• Built-in Air Filter: Reduces resin odours efficiently using a large replaceable activated carbon filter.

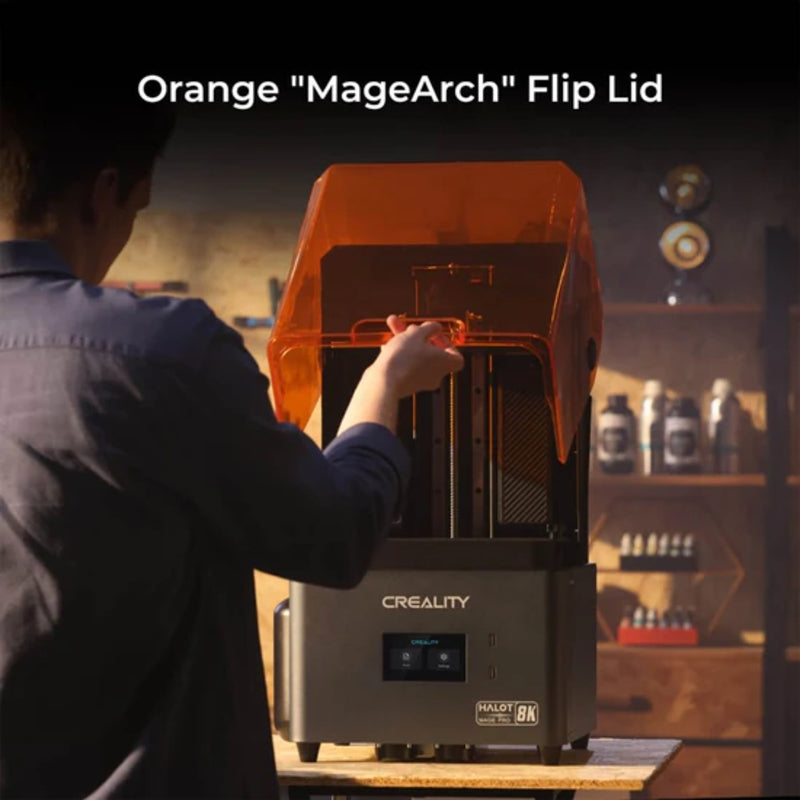

• MageArch Flip Lid: Convenient one-hand access while blocking 99.89% of ambient UV light.

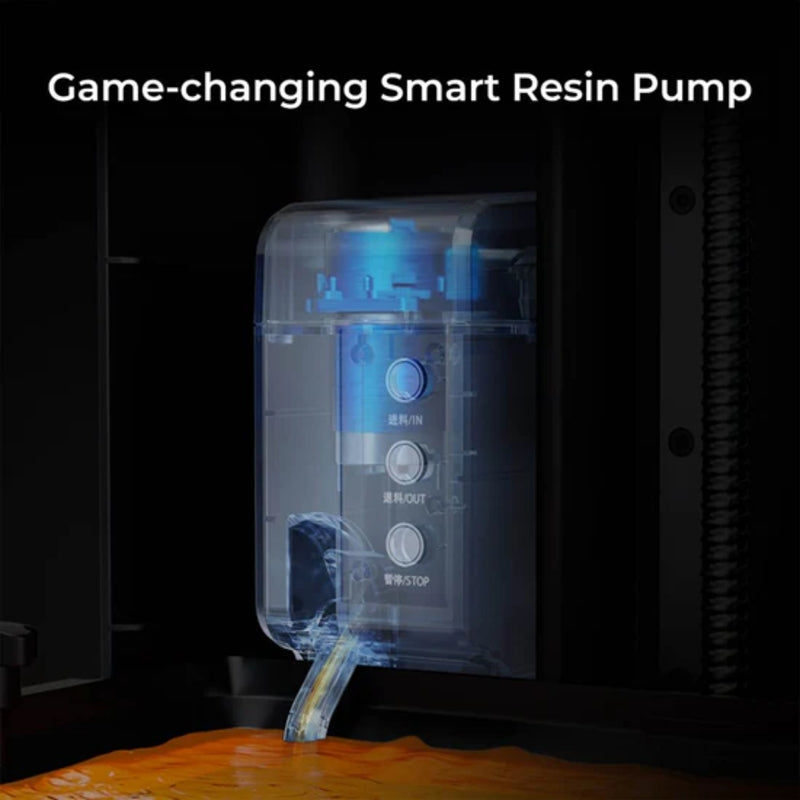

• Smart Resin Pump: Automatically fills or withdraws up to 1 litre of resin in 30 minutes, reducing spills and mess.
• Integral Light Source 3.0: Ensures consistent light uniformity (>90%) and rapid layer curing.
• Dynax Motion System: Lifts and lowers the build plate in 1.2 seconds for rapid, stable printing.

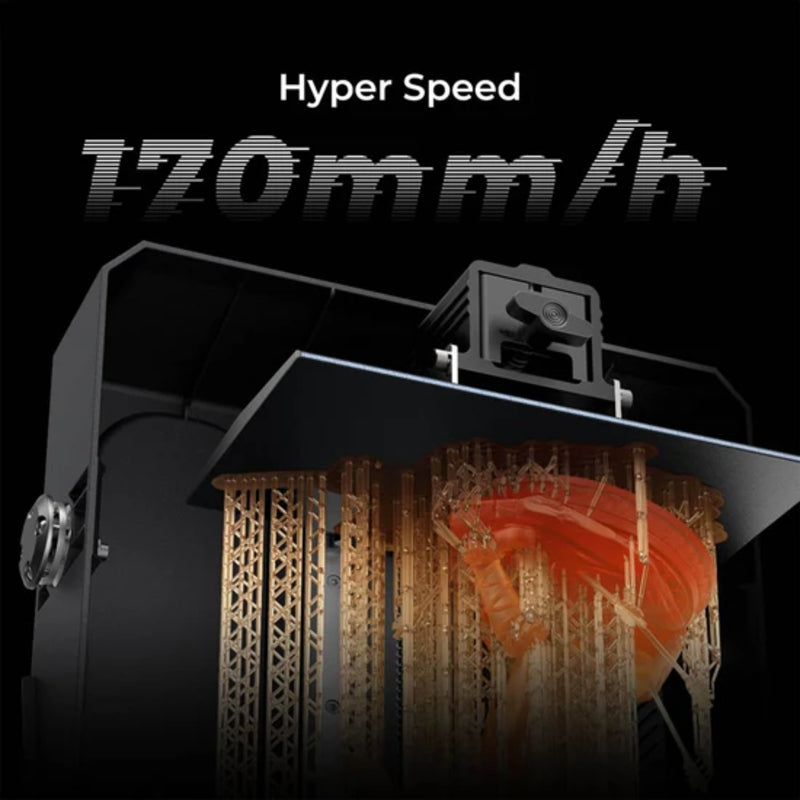

• High-Speed Printing: Up to 170mm/h with Creality Fast Resin for faster model production.

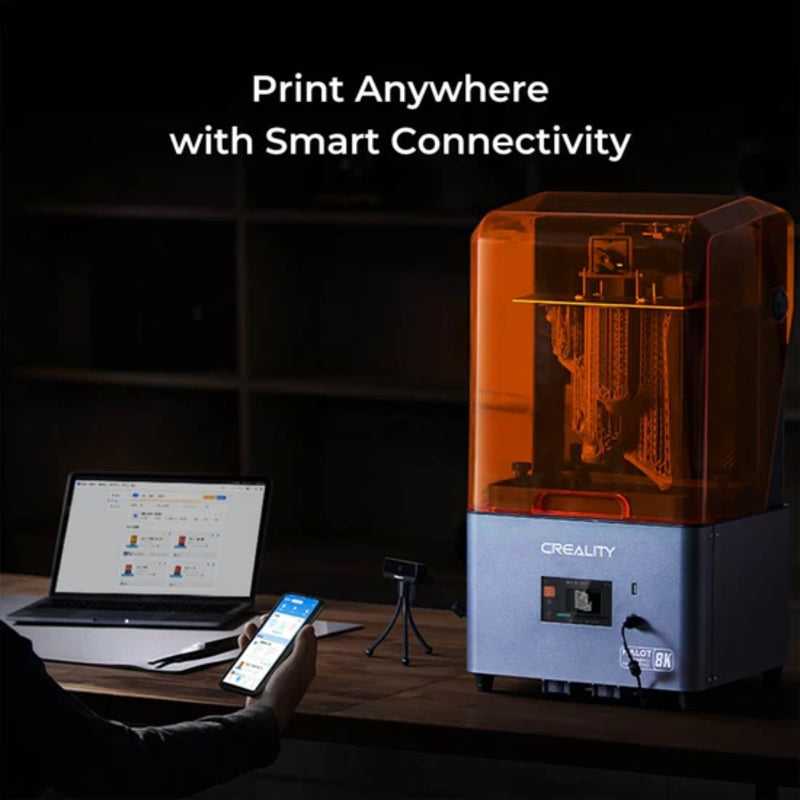

• Remote Monitoring & Connectivity: Control and monitor via Creality Cloud, LAN, or USB for flexible workflow.
• Software & Compatibility: HALOT BOX included, compatible with Lychee and Chitubox; includes 1-year VIP for Chitubox Pro.

Specifications:

• Code: 1003040122
• Printing Technology: UV Curing (Resin)
• Build Volume: 228×128×230mm (8.98×5.04×9.06")
• Maximum Printing Speed: 1–5 seconds per layer
• XY Printing Resolution: 29.7μm
• LCD Screen: Monochrome 10.3" LCD
• LCD Pixels: 7680×4320 (8K)
• Connection Mode: USB, RJ45 cable, WiFi, Creality Cloud
• Slicing Software: HALOT BOX (Included), Lychee, Chitubox
• Power Input: 200–240V AC, 50/60Hz, 150W
• Compatible Resins: 405nm photosensitive resins
• Machine Weight: 13kg
• Machine Size: 333×270×608mm (13.11×10.63×23.94")
• Smart Resin Pump: Automatic refill and withdrawal
• Air Purifier: Built-in with replaceable activated carbon filter
• Flip Lid: MageArch design with orange tint
• HALOT OS: Self-developed operating system for high-speed, seamless control
• Remote Monitoring: Via Creality Cloud or optional USB camera

Scope of Delivery:

• 1 x Creality HALOT-MAGE PRO 8K Resin 3D Printer | 1003040122

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
