Cron Craft LARGE V2 CNC Machine Kit, 500W Spindle with Lead Screw Drive | CCR034

Cron Craft LARGE V2 CNC Machine Kit, 500W Spindle with Lead Screw Drive | CCR034.

This is the Version 2 of the Cron Craft CNC machine kit. This new upgraded model will be available from October 2024.

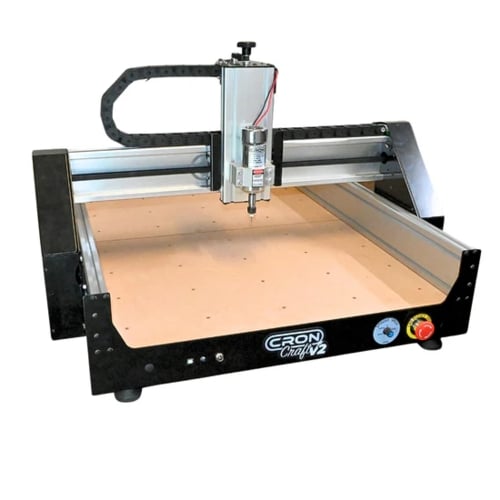

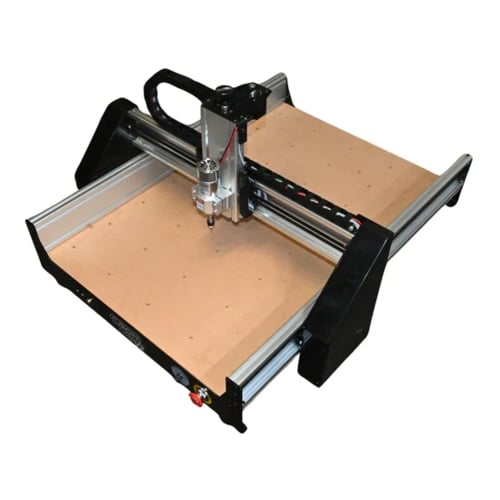

The Cron Craft V2 CNC machine kit is a desktop size, high quality CNC machine. CNC has never been this easy! The CNC machine is sold as a kit and now come semi-assembled. The sub assemblies has already been built, this means it should take you less than a day to assemble your CNC machine.

It is available in 2 size options (Medium & Large), the machine size and cutting area are as follows:

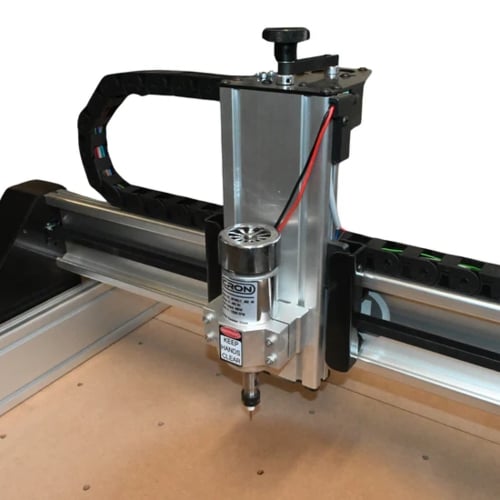

3 air cooled spindle options are available and 2 drive options. The spindle options are:

• 400W brushed spindle with ER11 collet holder and 12 000RPM maximum speed
• 500W brushless spindle with ER16 collet holder and 12 000RPM maximum speed
• 1.5kW brushless spindle with ER11 collet holder and 24 000RPM maximum speed (this spindle is only available with lead screw drive option)

The drive options are:

• Belt drive
• Lead Screw drive

This kit is perfect for cutting wood, PCBs, perspex and even aluminium.

What is included:

• All the parts you need to build the CNC machine
• The wires are pre-soldered so that you can plug and play
• Z-Probe for accurate Z homing
• Power Cable
• USB cable
• Collet spanner
• 5 cutting bits
• Workpiece clamps

What you will need:

• Computer with internet connection
• Assembly Tools

Machine Specifications:

Dimensions:

Spindle:

Drives:

Interface:

Environment:

Waranty:

• 6 Months carry in warranty

Extra Info:

• The latest assembly instruction can be found here: Cron Craft Assembly Instructions
• The downloadable data on the Mega Upload folder can be found here: Cron Craft Mega Upload Folder

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
