CONTOUR MARKER - STANDARD

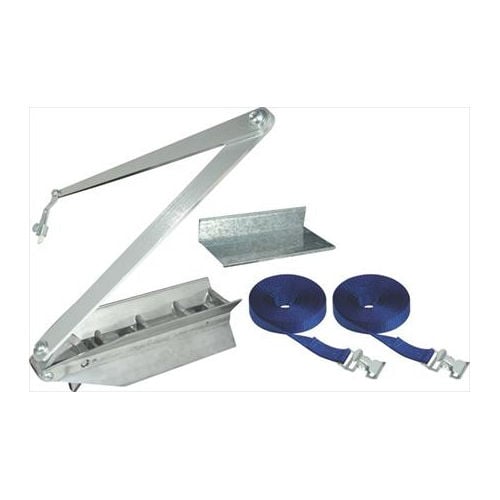

It consists of an X-shaped frame, calibrated protractor, and a triple-jointed marking arm and holder
The holder accepts a soapstone crayon (included), felt pen or pencil
It is used to lay out pipe and structural steel joints
Laterals at any angle, tees, wyes, crosses, elbows - any type or size of joint can be quickly and precisely laid out
Pipe from 38 to 450 mm diameter or structural steel members up to 450 mm
It can be used right side up or upside down, depending on the direction of the line to be scribed
The protractor is calibrated on both sides - one in degrees, the other in rise-inches-per-foot-to service any type of measurement need
The unit comes with a Structural Adaptor designed to simplify the layout of structural joints, including I-beams, angles, channels, square tubing and similar shapes
The Contour Marker is made from durable, lightweight aluminium. It requires minimal maintenance, only occasional oiling of the joints, to provide long service life
No more complicated mathematical formulas. No more cut and try
No more needless material waste
Code Pipe ø
CNT1 38-450 mm
