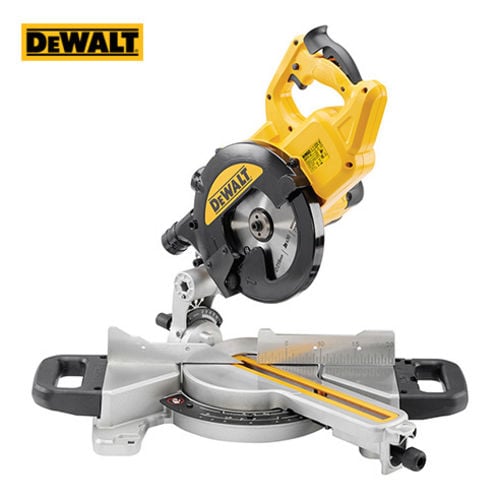

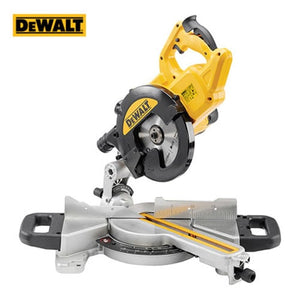

Dewalt DWS774 Slide Mitre Saw 216mm

FEATURES

• The classic saw design improved and updated for the modern user
• New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only)
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• Improved Dust extraction efficiency
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications
• New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
• Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
• Fixed left & right hand fences with measuring scale for improved material support and management
• Compact internal rail design for huge cutting capacity in a highly transportable format
• Carry side handles for east transportation

STANDARD

• TCT tooth saw blade
• Blade spanner
• Material Clamp

SPECIFICATIONS

• Power Input:1400 Watts
• Power Output:1100 Watt
• Blade Speed:4500 rpm
• Blade Diameter:216 mm
• Blade Bore:30 mm
• Bevel Capacity:48 °
• Mitre Capacity [right/left]:48/48 °
• Cutting Capacity at 90°/45° (W x H):173 x 62 mm
• Cutting Capacity at 90°/90° (W x H):250 x 62 mm
• Cutting Capacity at 90°/90° (W x H):250 x 60 mm
• Cutting Capacity at 45°/90° (W x H):177 x 62 mm
• Cutting Capacity at 45°/90° (W x H):177 x 60 mm
• Cutting Capacity at 90°/45° (W x H):265 x 48 mm
• Max. Cutting Capacity at 45°/45°:190x48 mm
• Max. Depth of Cut [Saws]:70 mm
• Weight:12.0 kg
• Depth:550 mm
• Length:490 mm
• Height:590 mm
• Hand/Arm Vibration - Cutting Wood:2.1 m/s²
• Uncertainty K 1 (Vibration):1.5 m/s²
• Sound Power:104 dB(A)
• Sound Power Uncertainty:3.9 dB(A)
• Sound Pressure:93 dB(A)
• Sound Pressure Uncertainty:3 dB(A)
