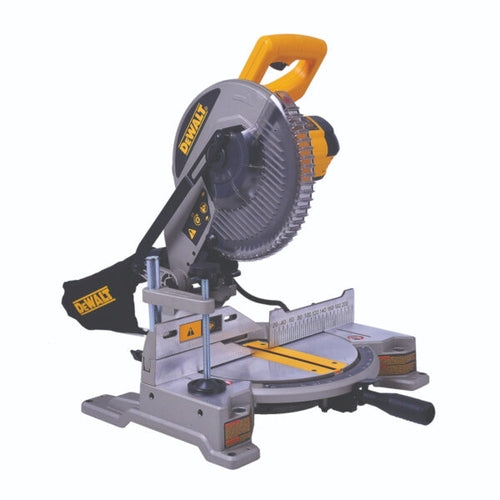

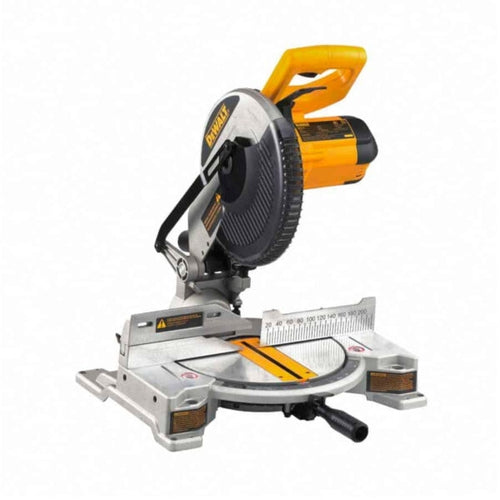

DEWALT Compound Mitre Saw 250mm 1650W | DW714

DEWALT Compound Mitre Saw 250mm 1650W | DW714.

The DEWALT DW714 Mitre Saw has been designed for professional cutting of wood and aluminum, wood products, aluminum products and plastics. It performs the sawing operations of cross-cutting, bevelling and mitring easily, accurately and safely. This unit is designed for use with a nominal blade diameter 254 mm carbide tip blade.

Cutting Capacities:

0° mitre, 0° bevel:

• Resulting width at max. height 89 mm : 95 mm
• Resulting height at max. width 130 mm : 68 mm

45° mitre, 0° bevel:

• Resulting width at max. height 89 mm : 67 mm
• Resulting height at max. width 91 mm : 68 mm

0° mitre, 45° bevel:

• Resulting width at max. height 50 mm : 95 mm
• Resulting height at max. width 130 mm : 40 mm

45° mitre, 45° bevel:

• Resulting width at max. height 45 mm : 70 mm
• Resulting height at max. width 91 mm : 40 mm

Technical Data:

Rating: Indusrial
Power input: 1650W
Blade: 254 mm
Bore: 30 mm
Blade thickness: 3.2 mm
Max. blade speed: 4600 rpm
Max. cross-cut capacity 90°: 130mm
Max. mitre capacity 45°: 91mm
Max. depth of cut 90°: 89mm
Max. depth of bevel cross-cut 45°: 50mm
Mitre (max. positions) left: 47°
Mitre (max. positions) right: 52°
Bevel (max. positions) left: 45°
Bevel (max. positions) right: 0°

Scope of Delivery:

• 1x Mitre Saw,
• 1x 80T Blade,
• 1x Wrench,
• 1x Dust bag,
• 1x Vertical clamp,
• 2x Work supports
