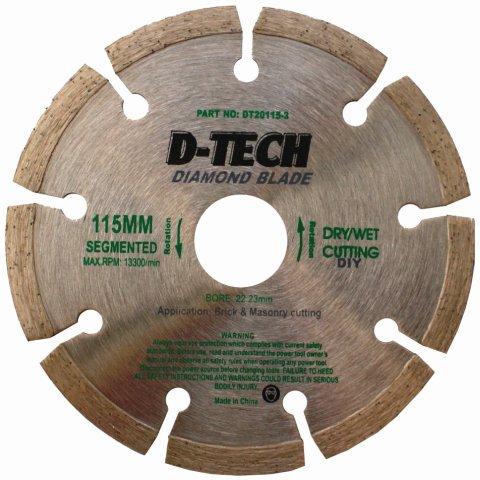

D-Tech Diamond Blade, Segmented, D115mm X B22.23mm | DT20115-3

D-Tech Diamond Blade, Segmented Rim, D115mm X B22.23mm | DT20115-3.

The D-Tech Diamond Blade, Segmented Rim, features a diameter of 115mm and an arbor of 22.23mm, making it ideal for dry cutting applications. This blade utilises a segmented design, which facilitates air flow for effective heat dissipation, thus prolonging its life. With a body thickness of 1.0mm, the blade is built for durability and can handle hard density, low abrasive materials such as cured concrete, stone, and hard bricks. Although it offers a relatively smooth finish, some chipping may occur. The segmented rim design enhances debris clearance, making the cutting process swifter and more efficient.

Features & Benefits:

• Segmented Rim Design: Improves debris clearance, ensuring faster cutting performance.
• Heat Dissipation: Gullets on the body dissipate heat effectively, extending blade life.
• Versatility: Suitable for both dry and wet cutting applications, enhancing usability.
• Durability: Designed for long-lasting performance with hard density materials.

Specifications:

Packaging Type: Hanging Card
Product Dimensions: 133mm (L) x 153mm (W) x 3mm (H)
Product Weight: 100g
Diameter: 115mm
Arbor: 22.23mm
Body Thickness: 1.0mm
Segment Height: 8mm
Segment Length: 35mm
Segment Thickness: 2.1mm
Maximum RPM: 13,300

Extra Info:

• Make multiple shallow cuts instead of a single deep cut for better results.
• Do not side grind a cutting blade.
• Ensure the blade is fitted in the correct rotation direction to avoid reduced performance and lifespan.
• If the blade becomes glazed, make shallow cuts in soft materials to expose more diamonds.
• Using a blade with a soft metal bond on abrasive materials will shorten its life.
• Wet cutting extends blade life significantly.

Scope of Delivery:

• 1 x D-Tech Diamond Blade, Segmented Rim, D115mm X B22.23mm

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
