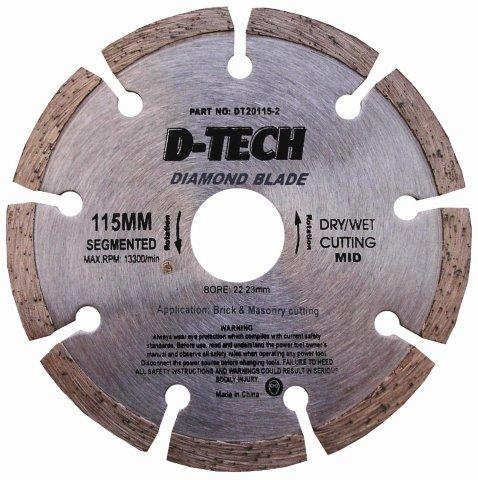

D-Tech MID Diamond Blade, Segmented, D115mm X B22.23mm | DT20115-2

D-Tech MID Diamond Blade, Segmented, D115mm X B22.23mm | DT20115-2.

The D-Tech MID Diamond Blade, with a diameter of Ø115mm and an arbor of Ø22.23mm, is designed for use on medium hardness and abrasive materials, including asphalt, cement bricks, ceramic tiles, and clay bricks. This segmented diamond blade, also known as a dry cut blade, operates effectively in dry cutting applications. Its unique design incorporates segments and cut-outs (gullets) that facilitate airflow, dissipating heat during use. This not only enhances the blade’s performance but also improves debris clearance, allowing for a swifter cut with a relatively smooth finish, although chipping may occur. Furthermore, this blade is durable and boasts a long life compared to traditional blades, especially when water is not available.

Features & Benefits:

• Segmented Rim Design: Enhances debris clearance for improved cutting efficiency.
• Heat Dissipation: Gullets in the body allow for effective heat management.
• Durability: Designed for long blade life, ensuring reliability during tough applications.
• Versatile Usage: Suitable for both dry and wet cutting, adapting to various conditions.

Application:

• Medium hardness and abrasive materials such as asphalt, cement bricks, ceramic tiles and clay bricks.

Specifications:

Packaging Type: Hanging Card
Product Dimensions: 133mm (L) x 153mm (W) x 3mm (H)
Product Weight: 100g
Diameter: 115mm
Arbor: 22.23mm
Body Thickness: 1.0mm
Segment Height: 8mm
Segment Length: 35mm
Segment Thickness: 2.1mm
Max RPM: 13,300 RPM

Extra Info:

• Make multiple shallow cuts instead of a single deep cut for improved results.
• Do not side grind a cutting blade.
• Ensure the blade is fitted in the correct rotation direction to avoid reduced performance and lifespan.
• If the blade becomes glazed, make shallow cuts in soft materials to expose more diamonds.
• A short diamond blade life can result from using a blade with a soft metal bond on abrasive materials.
• Wet cutting can significantly extend blade life.

Scope of Delivery:

• 1 x D-Tech MID Diamond Blade, Segmented, D115mm

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
