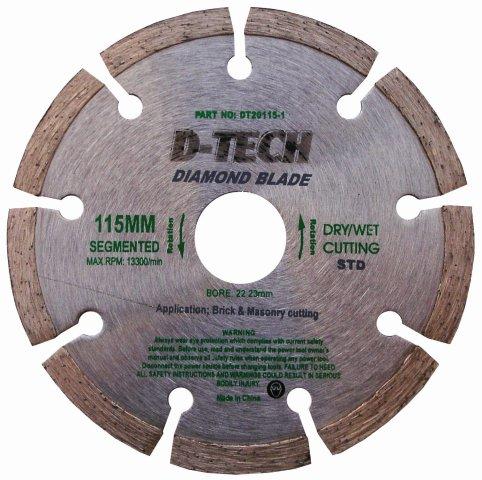

D-Tech STD. Diamond Blade, Segmented, D115mm X B22.23mm | DT20115-1

D-Tech STD Diamond Blade, Segmented, D115mm X B22.23mm | DT20115-1.

The D-Tech STD Diamond Blade, with a diameter of Ø115mm and an arbor of Ø22.23mm, is ideal for cutting softer high-abrasive materials such as cement, asphalt, cement bricks, and clay bricks. This segmented diamond blade, also known as a dry cut blade, is primarily used in dry cutting applications. Its innovative design utilizes segments and cut-outs (gullets) in the blade body to enhance airflow, thereby cooling the blade during operation. This feature not only improves cutting performance but also ensures effective debris clearance, resulting in faster cuts with a relatively smooth finish, although some chipping may occur. Additionally, segmented blades are particularly advantageous when water is not available, providing durability and longevity compared to traditional blades.

Features & Benefits:

• Segmented Rim Design: Improves debris clearance for more efficient cutting.
• Heat Dissipation Gullets: Help to maintain optimal blade temperature during use.
• Durable Construction: Ensures a longer blade life, even with heavy use.
• Versatile Usage: Suitable for both dry and wet cutting applications.

Application:

• Softer high abrasive materials such as cement, asphalt, cement bricks and clay bricks.

Specifications:

Packaging Type: Hanging Card
Product Dimensions: 133mm (L) x 153mm (W) x 3mm (H)
Product Weight: 100g
Diameter: Ø115mm
Arbor: Ø22.23mm
Body Thickness: 1.0mm
Segment Height: 8mm
Segment Length: 35mm
Segment Thickness: 2.1mm
Max RPM: 13,300

Extra Info:

• Make multiple shallow cuts instead of a single deep cut for optimal results.
• Do not side grind a cutting blade to maintain its integrity.
• Ensure the blade is fitted in the correct rotation direction to avoid reduced performance and lifespan.
• If the blade becomes glazed, it feels smooth to the touch with little to no diamonds exposed; rectify this by making shallow cuts in a soft, abrasive material like limestone.
• A short diamond blade life can result from using a blade with a soft metal bond on abrasive materials such as sandstone or asphalt.
• Wet cutting can significantly extend blade life.

Scope of Delivery:

• 1 x D-Tech STD Diamond Blade, Segmented, D115mm

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
