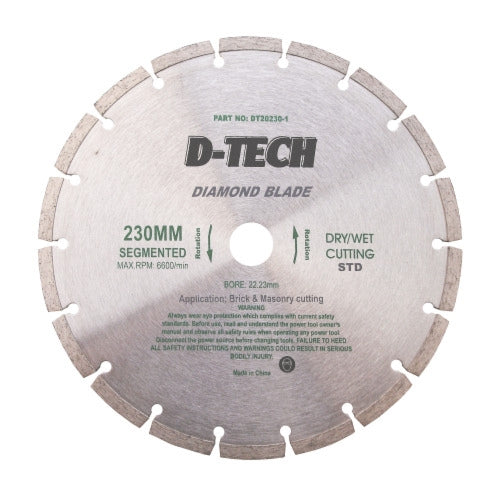

D-Tech STD. Diamond Blade, Segmented, D230mm X B22.23mm | DT20230-1

D-Tech Diamond Blade, Segmented, D230mm X B22.23mm | DT20230-1.

The D-Tech Diamond Blade, with a diameter of Ø230mm and a bore of Ø22.23mm, is designed for use in dry cutting applications. This segmented diamond blade effectively dissipates heat through its segments and cut-outs (gullets), allowing for a cooler operation. Its design also enhances debris clearance, ensuring a swifter cut with a relatively smooth finish, although some chipping may occur. This blade is particularly advantageous when water is not available, offering durability and a long lifespan compared to standard blades.

Features & Benefits:

• Segmented Design: Improves debris clearance and enhances heat dissipation for effective cutting.
• Versatile Applications: Suitable for concrete, brick, paving, and various building materials.
• Durability: Engineered for a long life, making it a reliable choice for demanding tasks.
• Efficient Cooling: The airflow created by the segments maintains optimal blade temperature during use.

Specifications:

Order Number: DT20230-1
Diameter: 230mm
Bore: 22.23mm
Style: Segmented
Maximum RPM: 6,600 RPM
Use:  Concrete, brick, paving & building materials

Extra Info:

• Make multiple shallow cuts instead of a single deep cut for improved results.
• Do not side grind a cutting blade.
• Ensure the blade is fitted in the correct rotation direction to avoid reduced performance and lifespan.
• If the blade becomes glazed, make shallow cuts in soft materials to expose more diamonds.
• A short diamond blade life can result from using a blade with a soft metal bond on abrasive materials.
• Wet cutting can significantly extend blade life.

Scope of Delivery:

• 1 x D-Tech Diamond Blade, Segmented, D230mm

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
