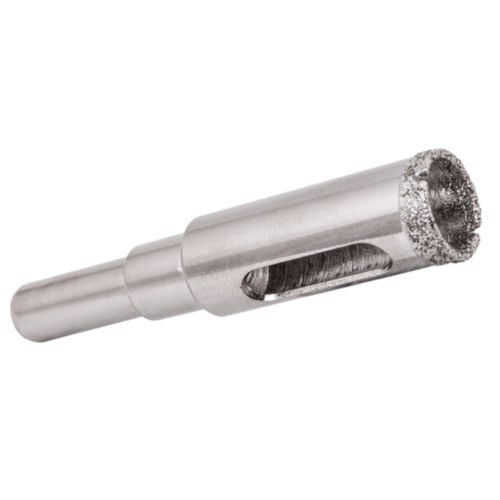

Tork Craft 14mm Diamond Core Bit for Tiles | TC180814

Tork Craft 14mm Diamond Core Bit for Tiles | TC180814.

The Tork Craft 14mm Diamond Core Bit is purpose-built for accurate hole-drilling in hard tile and stone surfaces. Designed specifically for ceramic tiles, marble, grade 5 porcelain (the hardest class), granite, slate and glass, this core bit features premium diamond segments that cut faster and cleaner than conventional bits. As a result, you achieve smoother hole edges while reducing chipping and costly rework.

To ensure optimal performance and extended service life, you must use water or coolant at all times during operation. Wet drilling prevents overheating of the diamond segments and protects both the bit and the work surface. Additionally, operate the drill in rotary mode only — never use hammer or impact mode, as this can damage the bit and the material.

For best penetration and minimal surface damage, start drilling at a 45° angle on the tile edge. Then gradually ease the bit into a vertical position once the cut begins. Furthermore, always check your drill’s RPM before use. For diamond core bits larger than Ø10.0mm, including this 14mm bit, the recommended spindle speed is less than 400 rpm. Starting at a low rpm and increasing only when stable improves control and cutting accuracy.

Whether you are completing plumbing, electrical, drainage or decorative stone installations, this 14mm diamond core bit delivers reliable performance, durability and precision in demanding environments.

Features & Benefits:

• 14mm Diameter: Ideal for larger through-holes in tile and stone applications.
• Premium Diamond Cutting Segments: Enable efficient penetration through marble, granite and grade 5 porcelain.
• Wet Drilling Requirement: Water or coolant use reduces overheating and extends segment lifespan.
• Rotary-Only Operation: Prevents surface damage and protects the integrity of the diamond edge.
• Recommended Spindle Speed: Operates at less than 400 rpm for Ø14mm applications to ensure safe, controlled cutting.
• 45° Start Technique: Improves initial bite and minimises glazing or edge blow-out.
• Lightweight Construction: Enhances handling and drilling control.
• Versatile Application: Suitable for plumbing, drainage, electrical and decorative penetrations in tile and stone.
• Durable Build: Diamond edge construction extends tool life and reduces replacement frequency.

Specifications:

• Brand: Tork Craft
• Product Type: Diamond Core Bit – Tile/Stone
• Diameter: 14mm
• Recommended Spindle Speed: Less than 400 rpm (for diameters greater than 10.0mm)
• Typical Applications: Drilling ceramic tiles, grade 5 porcelain, marble, granite, slate and glass
• Pack Quantity: 1 (Unit)

Scope of Delivery:

• 1 × Tork Craft 14mm Diamond Core Bit for Tiles

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
