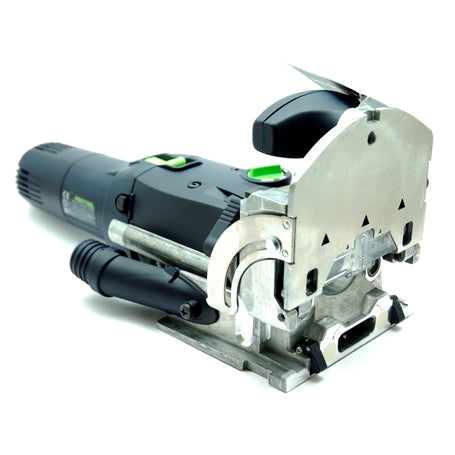

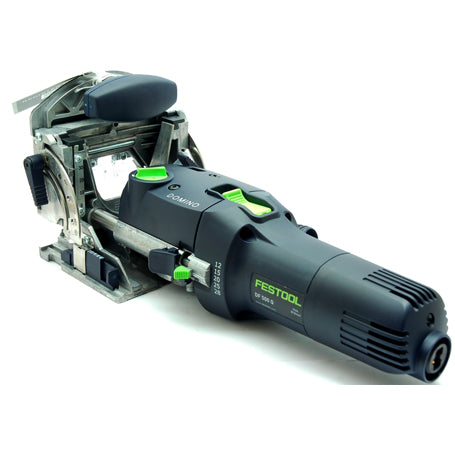

Festool DF 500 Q-Set DOMINO Joining Machine | 576420

Festool DF 500 Q-Set DOMINO Joining Machine | 576420.

More precise joints.

Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.

• Patented routing principle unique to hand-held machines for accurate work with no kickbacks
• Stops that are quick and easy to adjust, for accurate results
• Rotation-proof joint with DOMINO dowels providing maximum stability
• System accessories compatible with both DOMINO jointers
• Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm

Main applications:

• Furniture manufacture
• Shopfitting/Interior fitting
• Window construction
• Exhibition stand construction
• For panel joins

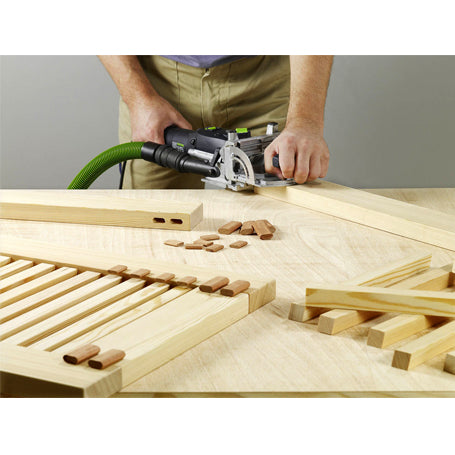

• For frame and rack joints

Product highlights:

Achieve ideal results more quickly:
Positioned in next to no time with the innovative stop cap system. The routing height and depth can be adjusted in seconds using the preselection slider.

Convenient and safe:
Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.

Systems get it done:
DOMINO, cutter, dowel up to 10 x 50 mm, flexible adjustment options and compatible system accessories for virtually unlimited jointing possibilities.

Other versions - DF 500 Q:

DF 500 Q-Plus DOMINO Joining machine (574325)

Downloads:

DF 500 Operating Manual
DF 500 Safety Instruction
D8 Connector Application

Technical data:

Max. routing depth: 28,00 mm
DOMINO slot cutter dia.: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5 - 30 mm
Mitre routing: 0 - 90 °
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Idle engine speed: 25 500 min⁻¹
Power consumption: 420 W
Weight: 3.2 kg
Dust extraction connection dia.: 27 mm

Noise and vibration values:

Routing: Total vibration average, Ah: 3,00 m/s²
Routing: A-weighted sound power level, LWA: 95,00 dB(A)
Routing: Uncertainty (noise) K: 3,00 dB
Routing: Uncertainty (vibration) K: 15,00 m/s²
Routing: A-weighted sound pressure level, LpA: 84,00 dB(A)

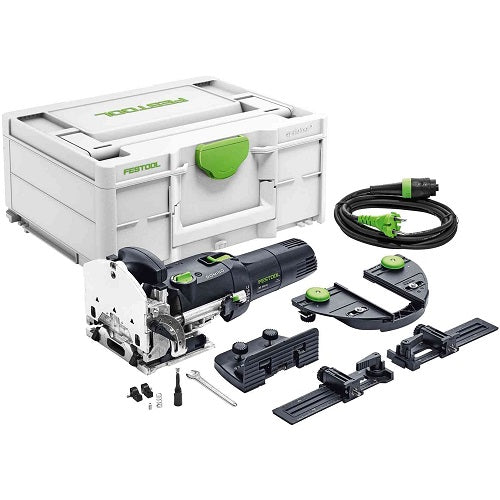

Items included - DF 500 Q-Set:

• DOMINO cutter D5
• support bracket
• trim stop
• cross stop
• operation tool
• in SYSTAINER SYS 2 T-LOC
