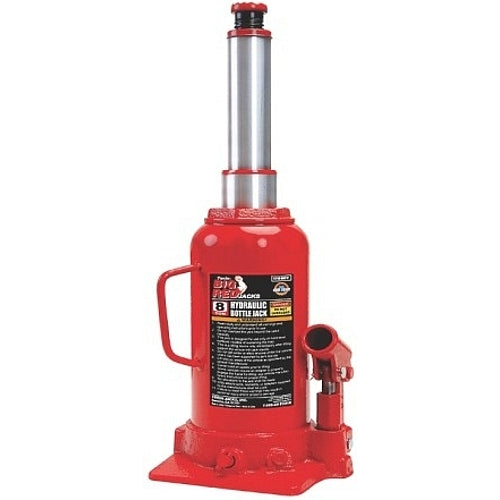

BIG RED Double Ram Bottle Jack, Welded, 8T | TH80802X

BIG RED Double Ram Bottle Jack, Welded, 8T | TH80802X.

Built to handle demanding lifting tasks, the BIG RED Double Ram Bottle Jack, model TH80802X, is a heavy-duty welded jack designed for strength, stability, and performance. Offering a solid 8-ton capacity, this jack features a double-ram design for extended reach, allowing greater lifting height without sacrificing strength or compactness.

With a minimum height of 170 mm (6.69 in), the jack delivers a generous lift height of 200 mm (7.87 in), plus an additional adjustable height of 60 mm (2.36 in). Altogether, it provides a substantial lifting range to accommodate various vehicles and machinery. The welded construction enhances durability and reduces potential leakage points, making it ideal for rugged environments.

Despite its strength, the jack maintains a compact footprint with dimensions of 115 x 134.5 x 170 mm, while its net weight of just 4.7 kg ensures ease of portability. Packaged efficiently in a 310 x 280 x 200 mm box, it’s ready for transport, storage, or immediate use on-site.

Features & Benefits:

• Double Ram Design: Extends lifting range without compromising structural integrity or compact size.
• Heavy-Duty Welded Body: Enhances strength and durability by reducing seams and potential failure points.
• Extended Lift Range: Combines 200 mm of lift with 60 mm of adjustable height for greater versatility.
• Portable and Compact: Compact design with manageable weight makes it ideal for both workshop and field use.

Specifications:

Code: TH80802X
Capacity (Ton): 8
Min. Height (mm): 170
Lift Height (mm): 200
Adjustable Height (mm): 60
Product Size (mm): 115 x 134.5 x 170
N.W (Kg): 4.7
G.W (Kg): 4.85
Package Size (mm): 310 x 280 x 200

Scope of Delivery:

• 1 x BIG RED Double Ram Bottle Jack, Welded, 8T | TH80802X

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
