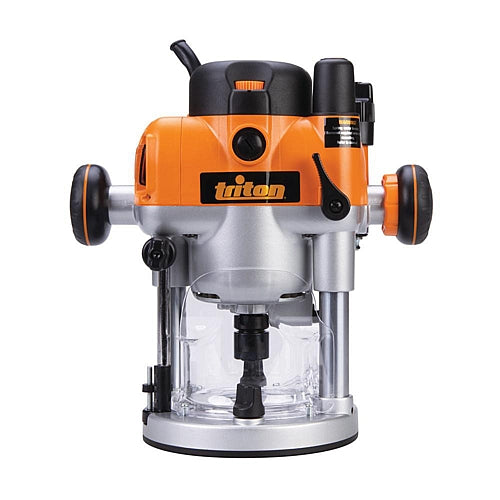

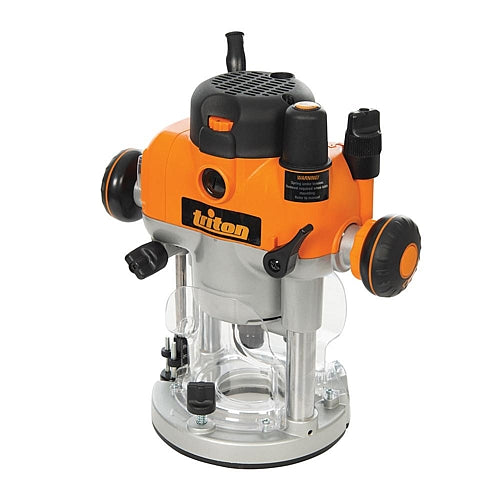

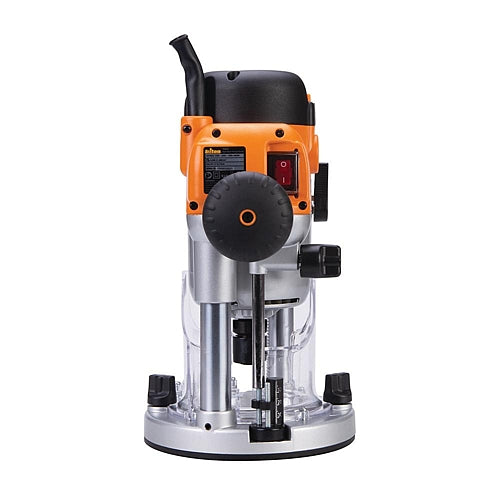

Triton Dual Mode Precision Plunge Router 2400W (1/4" & 1/2" Collets) | TRA001

Triton Dual Mode Precision Plunge Router 2400W | TRA001.

Powerful 2400W / 3-1/4hp electronically controlled motor. Single spanner ‘above table’ cutter changing. Automatic shaft lock and power lock-off during cutter change mode. Fast plunge depth adjustment with winder handle and fine depth adjustment with micro winder. Quick switching to conventional plunge mode. Removable plunge spring for easy lifting and adjustment. Effective dust port.

Product Features:

• 1/2" & 1/4" collet
• 2400W / 3-1/4hp motor provides enough power for even the toughest timbers
• Automatic spindle lock engages only power switch cover is closed
• Soft start and variable speed provides the perfect speed for all cutter types
• Single-button switches from plunge to fixed based router with rack and pinion adjustment
• Micro winder enables continuous fine depth adjustment through the full plunge range
• Above the table, single wrench bit change for quick and easy bit changes
• Electronic speed control ensures a fine finish on all materials
• Removable plunge spring for easy bit adjustment when table mounted
• 3-stage turret with direct reading scales for precise pre-set cut depths
• Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
• Multi-function fence provides optimum control for hand-held use and circle cutting

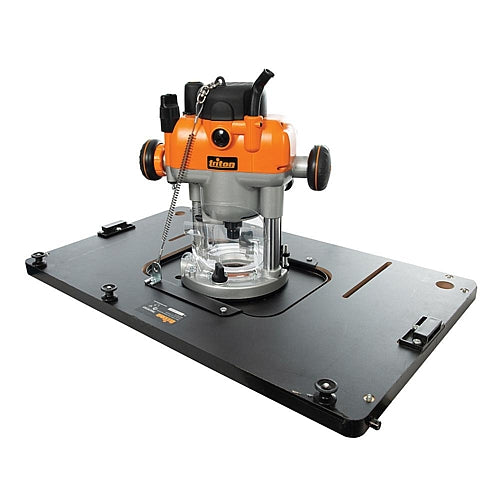

• Quick-fit pins for fast fitment and removal from the fence and RTA300 Router Table
• Side air vents reduce intake of dust into the motor casing when mounted upside-down in a router table
• Excellent dust extraction for a cleaner, safer working environment
• Easy access brushes allows the end user to change worn brushes
• Single wrench bit change through the base is achieved with the automatic spindle lock
• Safety Switch Shutter locks closed in bit-change mode to prevent router being switched on

Specifications:

Depth Adjustment: Micro winder
Electronic Speed Maintenance: Yes
No Load Speed: 21,000rpm
Plunge Range: 0 – 68mm
Power: 2400W
Power On Indicator: Neon
Product Height: 310mm
Product Length: 180mm
Product Weight: 6.3kg
Product Width: 300mm
Safety Power Switch: Yes
Sound Pressure LP: 89.8 dB
Sound Power LW: 100.8 dB
Speed Maintenance Under Load: 8,000 – 21,000rpm
Compatible with 01: DCA300
Compatible with 02: RTA300
Compatible with 03: BJA300

Scope of Delivery:

• Table height winder
• Multi-function fence
• 1/2"collet
• 1/4″ collet

Downloads:

Spare-parts List
Manual

Video:

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
