Pro-Tech Double Edge Trimmer, One Direction, 25mm | PTET0025

Pro-Tech Double Edge Trimmer, One Direction, 25mm | PTET0025.

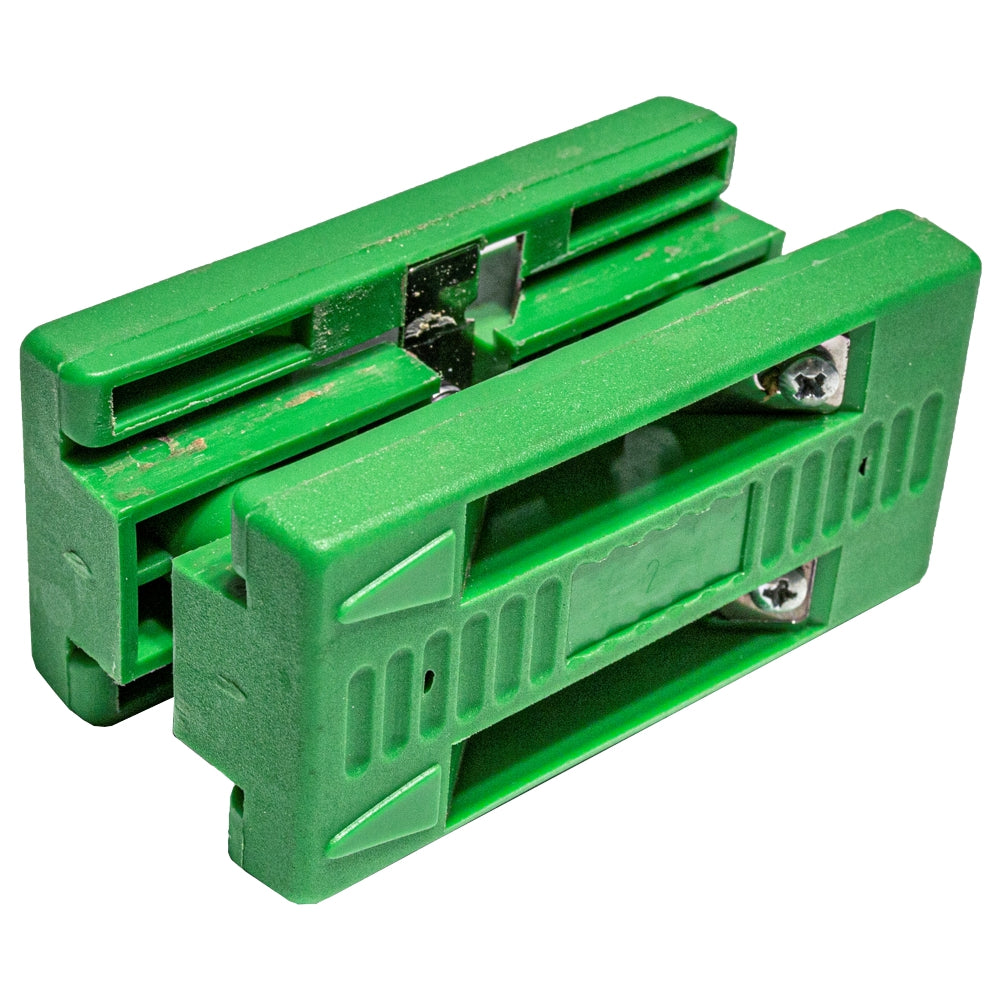

Providing clear product information is crucial for the Pro-Tech Double Edge Trimmer. Packaged in a blister pack, this trimmer features an ergonomic design with a plastic body and hardened alloy steel blades. With a cutting edge design of six blades installed on the trimmer, it offers versatile trimming for various applications.

Application:

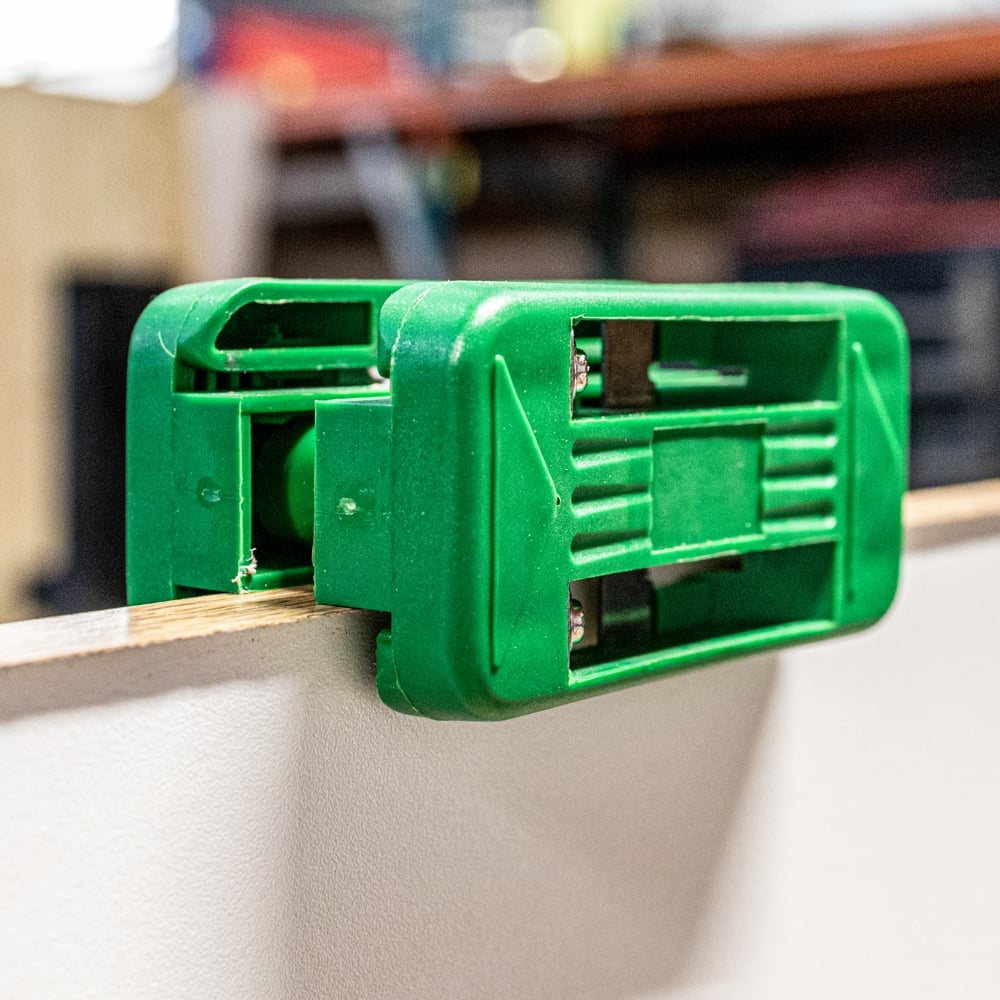

Perfect for flexible melamine paper, wood, plastic, and PVC edge trimming. Ideal for cabinet manufacturing and decorative finishing.

Product Highlights:

• Comfortable ergonomic design, usable back and forth.
• Double-sided cutter trims edge banding on both sides simultaneously.
• Spring-loaded with a cutting depth range from 13mm to 25mm.
• Built-in bevel blades for adjustable cutting angles.

Technical Data:

Board Trimming Thickness Range: 13mm – 25mm
Blade Hardness: 65 HRC
Blade Material Design/Profile: 6 blades installed on trimmer, Hardened alloy steel blades

Scope of Delivery:

• 1 x Edge Trimmer (Set of blades pre-installed)
• 1 x Spare Set of trimming blades

Assembly:

1. Unscrew the top screws of the double edge trimmer.
2. Place the triangular blade facing downwards and fasten.
3. Pull the top part of the trimmer until the springs are exposed.
4. Unscrew the screw at the center of the trimmer.
5. Place the rectangular blade on the grooves and ensure it is flush, then screw it in place.
6. Flip the top part of the trimmer and insert it into the pillar containing the spring, ensuring the spring is completely immersed inside the pillar.
7. Press the trimmer down to check the alignment of the spring.

Safety:

• Do not touch the sharp edge of the blade. Touching the edge may lead to a cut injury.
• Avoid placing hands in between the grooves of the trimmer while pressing down.
• Do not use blunt blades.
