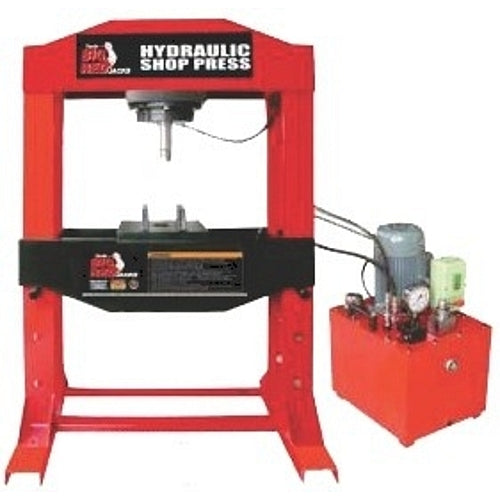

BIG RED Electric Hydraulic Shop Press 0-950mm, 200T (3PH 380V) | TRD520001

BIG RED Electric Hydraulic Shop Press 0–950mm, 200T (3PH 380V) | TRD520001.

The BIG RED TRD520001 Electric Hydraulic Shop Press is engineered for high-capacity pressing tasks in industrial workshops and manufacturing facilities. Powered by a 3-phase 380V electric motor, this heavy-duty hydraulic press delivers a formidable 200-ton force, making it suitable for bending, straightening, pressing bearings, and other intense mechanical operations.

The press features a generous stroke of 350 mm, paired with an adjustable work range from 0 mm to 950 mm, accommodating large components and varied workpiece dimensions. Despite its size and power, it maintains precision and stability, aided by its robust frame and electric hydraulic operation.

Weighing 1750 kg (net) and 1800 kg (gross), and with a package size of 1520 x 2200 x 520 mm, this shop press is a cornerstone tool for facilities that require consistent, heavy-duty performance.

Features & Benefits:

• Massive Pressing Capacity: Capable of delivering up to 200 tons of hydraulic force for industrial-grade applications.
• Adjustable Working Range: A flexible 0–950 mm work range allows for greater compatibility with various workpieces.
• High Stroke Length: A 350 mm stroke enhances efficiency by accommodating deeper or taller components during pressing operations.
• Powered by 3-Phase 380V: Electric operation ensures consistent force output and reduces manual effort in demanding tasks.
• Heavy-Duty Build: A net weight of 1750 kg and reinforced frame guarantee long-term durability and reliability in busy workshop settings.

Specifications:

Product Code: TRD520001
Capacity: 200 Ton (200,000 kg)
Stroke: 350 mm
Work Range: 0–950 mm
Net Weight: 1750 kg
Gross Weight: 1800 kg
Package Size: 1520 x 2200 x 520 mm (L x H x W)

Scope of Delivery:

• 1 x BIG RED Electric Hydraulic Shop Press | TRD520001

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
