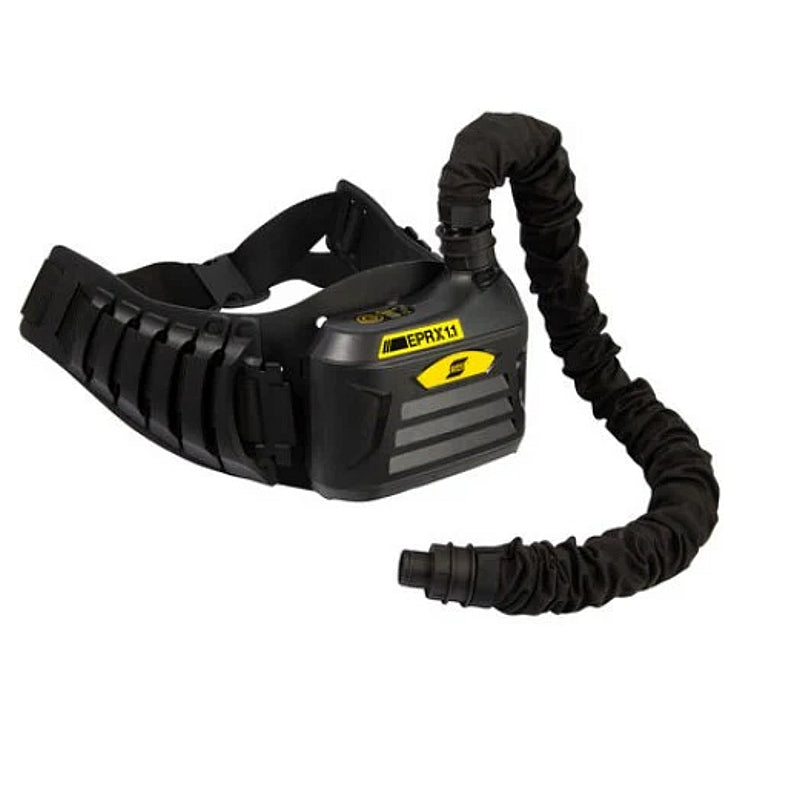

ESAB EPR-X1.1 Powered Air Purifying Respirator with Expandable Hose | 0700500920.
ESAB’s EPR-X1.1 PAPR unit connects seamlessly with all current ESAB prepared-for-air welding helmets and provides advanced respiratory protection from harmful welding fume particulates. Designers create this unit for applications ranging from occasional use to full-time industrial tasks. The EPR-X1.1 features a robust, compact housing with a powerful blower, so it ensures maximum life and performance. Users check battery status, fan settings, and filter conditions at a glance via quick-access status LED lights. Additionally, the system delivers audible, visual, and vibratory alerts to notify of low airflow (indicating a needed filter change) or low battery conditions. Operators control the turbo unit easily with push buttons, which offer three selectable airflow speed ranges of 170, 190, or 210 l/min. The HEPA-quality, EN12941 TH-3P certified two-stage filter (P3 filter and pre-filter) and replaceable spark arrestor access conveniently through a removable front door. Consequently, this PAPR supports reliable, user-friendly respiratory protection across industries such as agricultural equipment, automotive, general manufacturing, heavy fabrication, and industrial and general fabrication. It remains fully compatible with ESAB helmets including Sentinel A50, Sentinel A60, Savage A50 LUX, Savage A-40, G-30/40/50, and F-20.
Features & Benefits:
-
Adjustable Airflow Speeds: Select from 170, 190, or 210 l/min to match comfort and protection needs for different tasks.
-
Long Battery Runtime: Li-Ion battery pack delivers up to 10 hours of use at the lowest airflow setting for extended work sessions without interruption.
-
HEPA-Quality Two-Stage Filtration: Includes P3 filter, pre-filter, and replaceable spark arrestor to capture welding fume particulates effectively.
-
Quick-Access Status LEDs: Allow instant monitoring of battery, fan, and filter conditions for proactive maintenance.
-
Audible, Visual, and Vibratory Alerts: Provide clear notifications for low airflow or low battery to maintain safe operation at all times.
-
Robust Compact Design: Combines powerful blower performance with durable, lightweight housing for reliable daily use.
-
Easy Filter Access: Removable front door simplifies filter changes and spark arrestor replacement to minimise downtime.
-
Seamless Helmet Compatibility: Works with a wide range of ESAB prepared-for-air welding helmets for versatile protection.
Specifications:
-
Code: 0700500920
-
Air Flow: Selectable 170; 190; 210 l/min (6 - 7.8 cfm)
-
Battery Time: Up to 10h @ 170 l/min (7.8 cfm)
-
Filter: P3 filter and pre-filter with replaceable spark arrestor
-
Certifications: CE EN12941 TH3 P
-
Dimensions LxHxW: 210 x 169 x 78 mm (8.3 x 6.7 x 3.1 in.)
-
Weight: 1 kg (2.2 lbs)

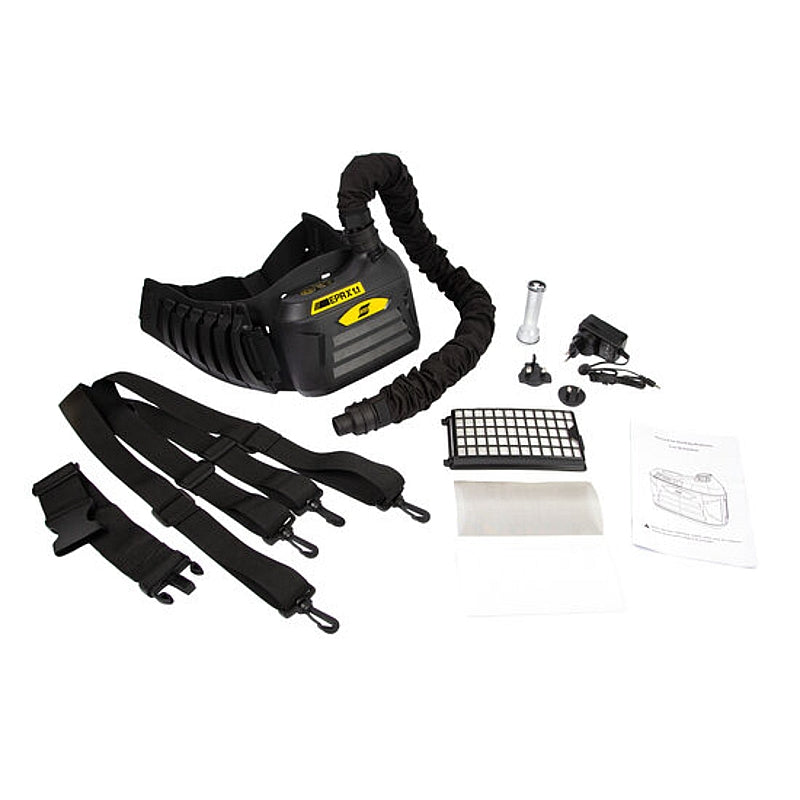

Scope of Delivery:
- Waist belt and shoulder harness
- EPR-X1.1 blower assembly with expandable hose (tube, flame-retardant cloth, and both end fittings)
- Rechargeable lithium ion battery
- Battery charger
- Air flow tester
- Main HEPA filter assembly (includes P3 filter, pre-filter, and spark arrestor)
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
