ESAB Rogue ES 200i PRO (CE) ARC/TIG Inverter Welder | 0700500082

ESAB Rogue ES 200i PRO (CE) ARC/TIG Inverter Welder | 0700500082.

The Rogue is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high performance power electronics and Digital control; ensuring a precise consistent arc.The Rogue provides a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job. Being digital the Micro-processor precisely controls all functions and provides Best-in Class welding performance across the amperage range of the machine. The Rogue can be used with electrodes up to 4.0mm Ø.The Rogue can easily perform TIG -welding using a “Live TIG” start. Equip the power source with the optional TIG-Torch, which has a built-in gas valve and a regulator, and a bottle of gas and you are ready to weld mild steel or stainless steel, with or without filler material.

Highlights:

• Advanced Digital Control: Utilises high-performance power electronics and a microprocessor to ensure a precise, stable and consistent arc.
• Smooth DC Output: Provides smooth Direct Current welding, ideal for alloyed and non-alloyed steel, stainless steel and cast iron.
• Adjustable Arc Settings: Features adjustable Arc Force and Hot Start controls to optimise arc characteristics for each application.
• Electrode Capacity: Supports electrodes up to 4.0 mm Ø for versatile MMA welding.
• Live TIG Capability: Performs TIG welding using a “Live TIG” start when equipped with an optional TIG torch with built-in gas valve, regulator and shielding gas.
• Generator Compliant: Suitable for generator use (recommended 7 kW), ensuring flexibility on site.
• Power Factor Control (PFC): Maintains a stable arc and resists power fluctuations, even with extension cables up to 100 m (328 ft) (PRO version only).
• Portable Design: Compact, lightweight 8.4 kg unit with sturdy handles and shoulder strap for easy transport.
• Durable Construction: IP23S-rated enclosure designed for fabrication shops and site applications.
• Optional Remote Control: Supports analogue remote control for convenient current adjustment (PRO version only).

Industries:

• Repair and Maintenance
• Civil Construction
• Agricultural Equipment
• Industrial and General Fabrication

Process:

• GTAW (TIG)
• SMAW/MMA (Stick)
• GTAW-DC (TIG DC)

Features & Benefits:

• Break the Rules. Go Rogue: Delivers premium performance at an entry-level price point. Power Factor Control (PFC) technology ensures a highly efficient and steady arc that resists power fluctuations. Suitable for both mains and generator power, with a duty cycle up to 25% at 200 A.
• Built to Withstand Impact After Impact: Features a robust, rigid fibreglass-moulded housing designed to withstand demanding workshop and on-site conditions. Backed by ESAB’s industry-leading 3-year warranty for added peace of mind.
• A Portable Workhorse: Compact and lightweight at 18.2 lbs (8.4 kg), with sturdy handles and a shoulder strap for easy transport. Stable arc performance allows the use of extension cables up to 100 m (328 ft) without compromising weld quality.

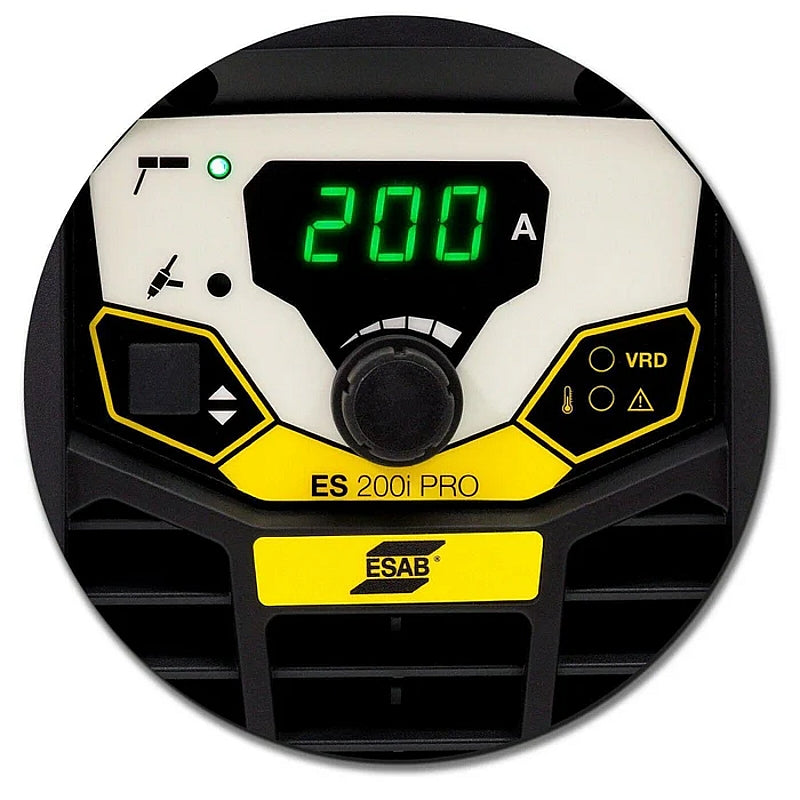

• More Control Over the Way You Weld: Large digital display remains clearly readable from up to 25 m (82 ft) away. The optional remote control enables current adjustments without returning to the machine. Additionally, users can control settings directly from the TIG torch, foot pedal or hand controller.

Specifications:

• Model: ES 200i PRO
• Primary Voltage: 1 ph 115/230 VAC ± 15%, 50/60 Hz
• Maximum Output: 200 A
• Rated kVA: 6.9 kVA
• Energy Save Mode: 50 W
• Open Circuit Voltage: 78 V DC
• Current Range: 10 – 200 A
• Operating Temperature: -10 to +40 °C
• Enclosure Class: IP23S
• Dimensions: 403 x 153 x 264 mm
• Weight: 18.2 lbs (8.4 kg)

MMA Welding Output:

• at 20% Duty Cycle: -
• at 25% Duty Cycle: 200 A / 28.0 V
• at 60% Duty Cycle: 129 A / 25.2 V
• at 100% Duty Cycle: 100 A / 24.0 V

TIG Welding Output:

• at 25% Duty Cycle: 200 A / 18.0 V
• at 60% Duty Cycle: 129 A / 15.2 V
• at 100% Duty Cycle: 100 A / 14.0 V

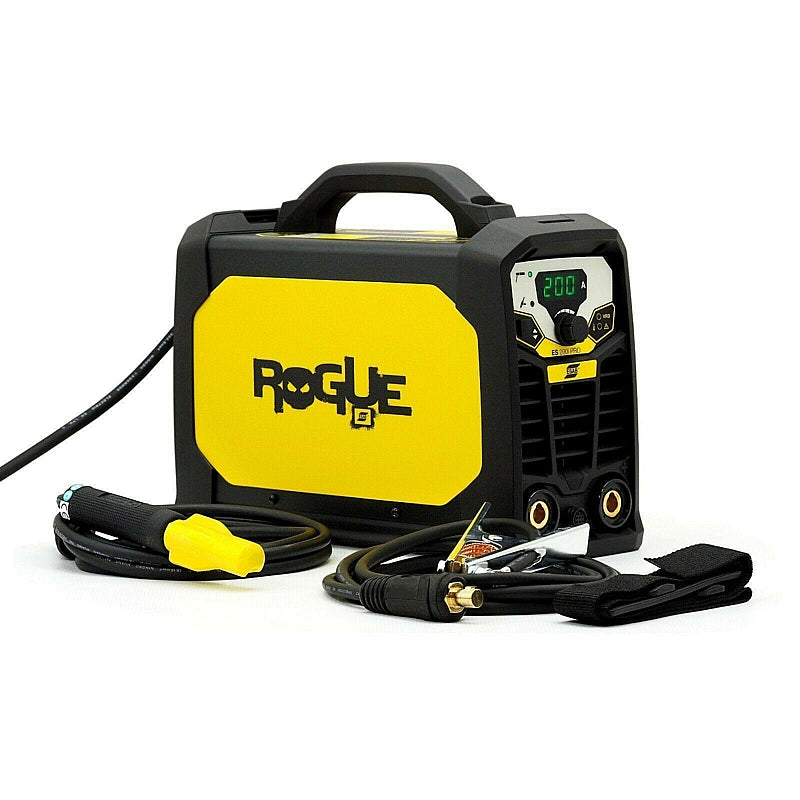

Scope of Delivery:

• Power source with 3 m mains cable and plug
• Shoulder strap
• Electrode holder
• 3 m return cable
• Clamp
