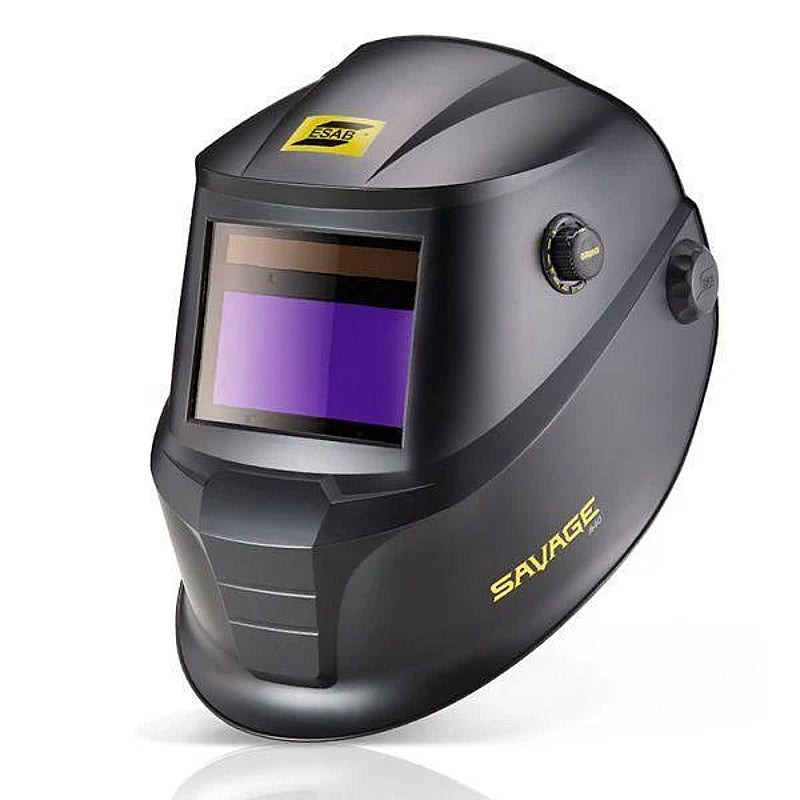

ESAB Savage A40 9-13 Black Auto-Darkening Welding Helmet | 0700000490.
The SAVAGE A40 helmet meets the needs of a variety of welders by providing a high-tech lightweight shell that protects from heat, sparks, and spatter. It utilises the latest ADF technology, so the welding lens delivers a high clarity of view with True Color, which results in excellent optical quality. Consequently, the helmet offers ideal functionality, performance, and comfort to occasional welders, maintenance and construction workers, as well as professional welders. Users adjust the external shade between DIN 9 and DIN 13, while delay and sensitivity settings adjust from the inside for customised performance. Moreover, four arc sensors ensure a higher auto-darkening response, and the larger viewing area provides wider coverage for increased spatial awareness. Additionally, sensitivity control adapts well for low amp TIG welding to react better to darker arc light, and delay control allows welders to set how long the lens remains dark after the arc stops—short delays speed up tack welding, while longer delays suit high amperage applications. The externally activated Grind Button with Shade 4 Grind Mode further enhances versatility for grinding tasks. True Color technology provides a brighter view and enhanced colour definition. Therefore, this helmet supports reliable protection and performance in industries such as PPE, general manufacturing, heavy fabrication, and industrial and general fabrication, across processes including oxy-fuel cutting, plasma cutting, grinding, GMAW (MIG/MAG), GTAW (TIG), PAW - Plasma Arc Welding, and SMAW/MMA (Stick).
Features & Benefits:
-
Lightweight High-Tech Shell: Protects effectively from heat, sparks, and spatter while remaining comfortable for extended use.
-
True Color ADF Technology: Delivers a brighter view with enhanced colour definition and high clarity for excellent optical quality.
-
External Shade Adjustment: Allows easy changes between DIN 9 and DIN 13 for versatile welding applications.
-
Internal Delay and Sensitivity Controls: Enable customisation to match specific welding conditions, improving reaction and workflow efficiency.
-
Four Arc Sensors: Provide higher auto-darkening response for reliable protection, especially in out-of-position welding.
-
Large Viewing Area: Offers wider coverage and increased spatial awareness for better visibility and safety.
-
Sensitivity Control: Adapts effectively for low amp TIG welding to ensure better reaction to darker arc light.
-
Delay Control: Lets welders set lens dark duration after arc stops, speeding up tack welding with short delays or supporting high amperage with longer delays.
-
Externally Activated Grind Button: Activates Shade 4 Grind Mode quickly for safe grinding without removing the helmet.
-
Solar-Powered with Replaceable Battery: Ensures reliable operation with low battery alerts and easy maintenance.
Specifications:
-
Code: 0700000490
-
Cartridge Dimensions: 110 x 90 x 7.8 mm (4.33 x 3.54 x 0.3 in.)
-
Viewing Area: 100 x 50 mm (3.93 x 1.96 in.)
-
Lens Shade: DIN 4, 9-13 Automatic
-
Power Supply: Solar cell, replaceable battery (1*CR2450 lithium). Alerts when low
-
Sensors: 4
-
Switch Time Dark to Light: 0.1 - 0.9 s
-
Switch Time Light to Dark at 23°C: 0.07 ms (some sources indicate 0.08 ms)
-
Classification: 1/1/1/2
-
Standards: CE EN379 and EN175, ANSI, CSA, AS/NZS
-
Weight: 500 g (1.1 lbs.)
Scope of Delivery:
- Full helmet assembly (ESAB Savage A40 9-13 Black)
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
