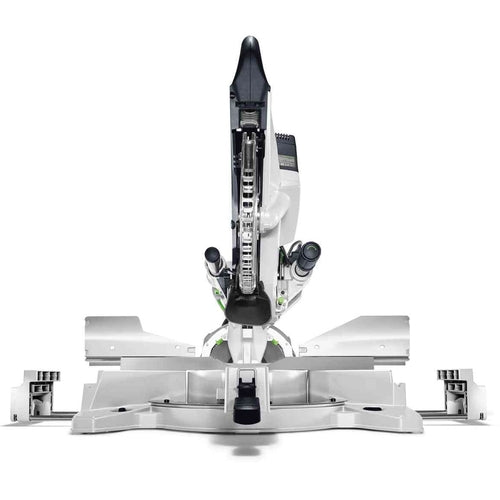

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

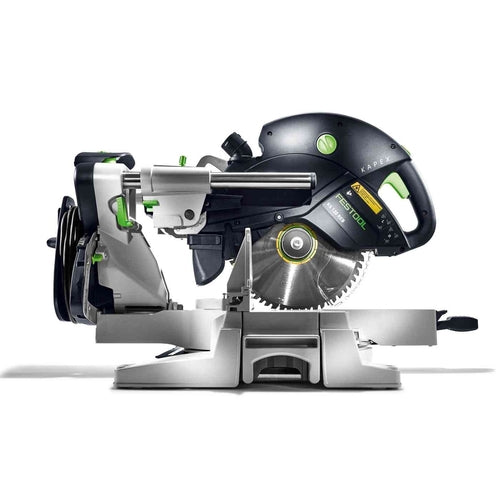

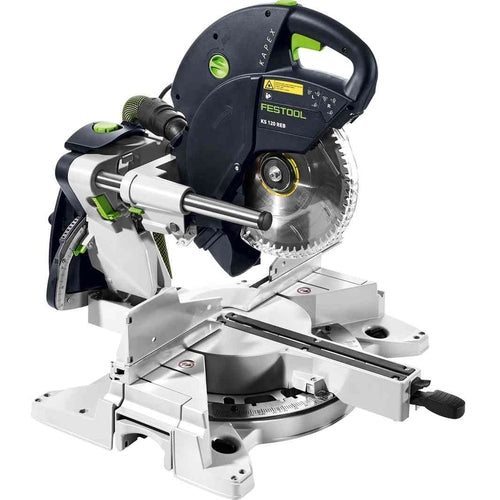

Maximum precision for the perfect cut - The KS 120 is impressive with its precise cuts thanks to the twin-column guide, powerful cutting capacity of up to 120 mm and light weight of 21.5 kg.
Extra large dimensions with dual ball bearings - The Festool twin-column guide guarantees reliable, smooth guidance of the saw blade and represents maximum precision.

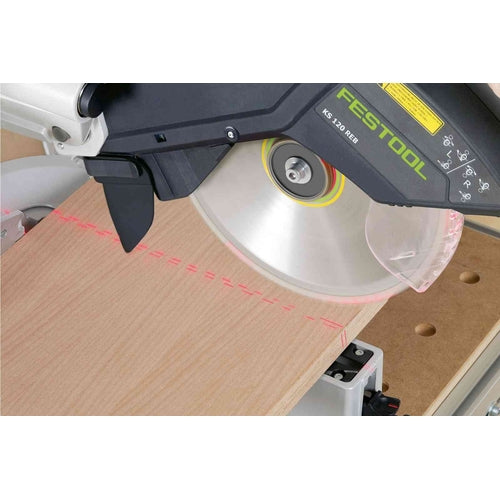

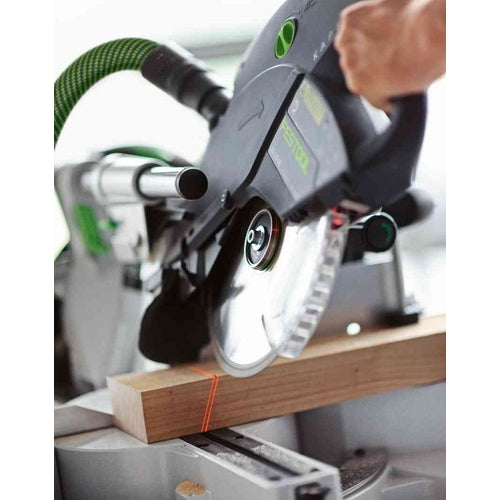

Quality down to the finest detail - A double laser line precisely marks the saw cut.

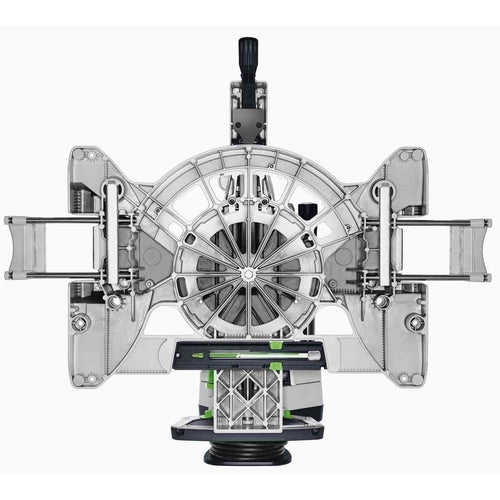

Robust and mobile for harsh construction site applications - Ribbing and high-quality cast magnesium increase rigidity while keeping weight to a minimum.
Impressive cutting capacity - The special cutting position of the KS 120 allows you to cut strip material up to 120 mm vertically against the stop or cut coving and cornices in their "original wall position".
MMC electronics for safe working adapted to the material - Variable speed preselection, smooth start-up, overload protection and also with integrated quick-acting brake.
Short set-up times, good results - Always optimally prepared with FastFix for simple and quick replacement of the saw blade.
Short set-up times, good results - Always optimally prepared with FastFix for simple and quick replacement of the saw blade.
Even greater comfort - Fine adjustment for setting the saw blade angle accurate to the millimetre. As with all important control elements, it can be adjusted quickly and conveniently from the front of the machine.
Unlimited mobility - With ergonomic hand grips for left-handed and right-handed users, cord holder, transport safety device, clamp and an extremely compact, lightweight design.

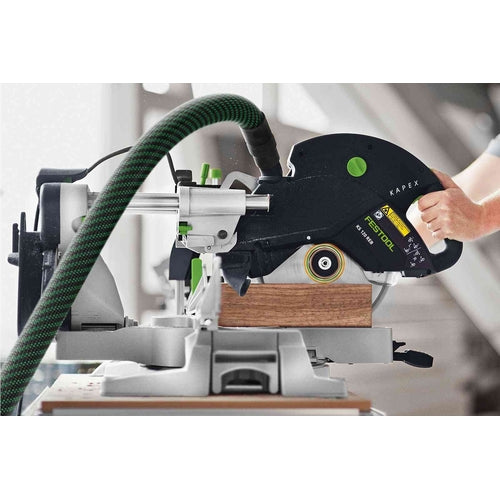

Clear view of the workpiece and a dust-free environment - Extraction system and chip deflector funnel extract the chips from where they are produced.

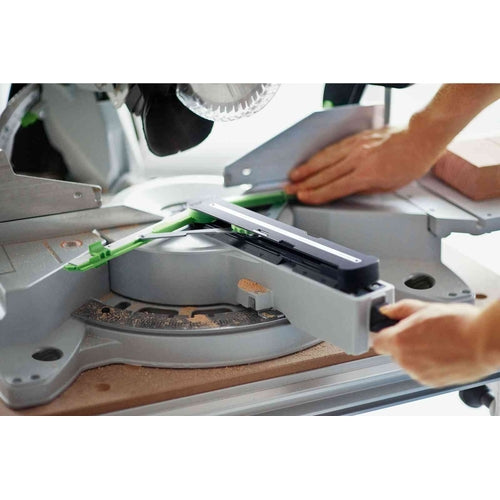

Saves time and eliminates errors - The bevel for rapid measurement of interior and exterior corners and subsequent simple and precise transfer to the saw.
Static and transport frame in one - The base frame turns the KAPEX into a mobile unit that can be converted into a sawing station in three hand movements. With a trimming length of 2.40 m (including trimming attachment).
For working when standing - The KAPEX fits perfectly on the perforated top of the MFT 3 Kapex. It is secured in place using the clamping kit.

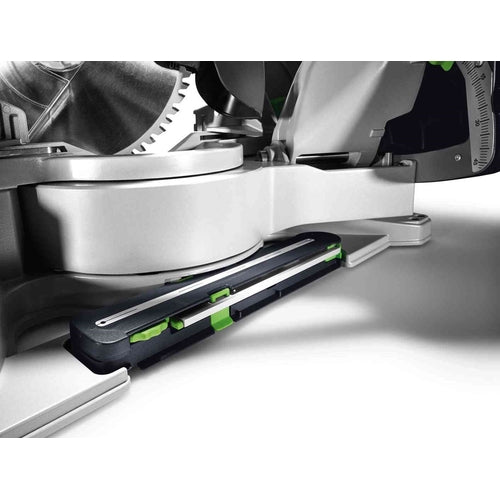

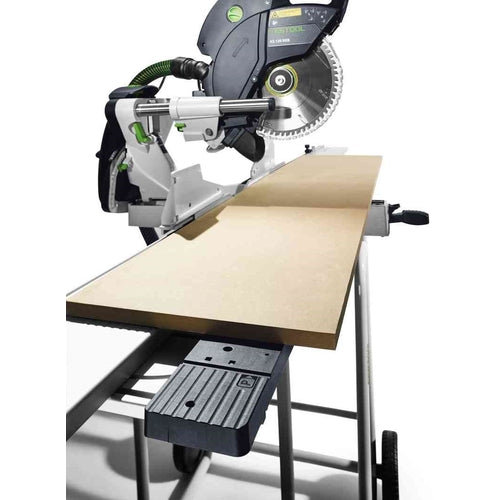

Also for long workpieces - The extension table, which can be pulled out separately, provides reliable and accurate support for long workpieces as well.
Antistatic function - Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
MMC digital electronics - Processor controlled “Multi Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material.
FastFix - Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
CLEANTEC - Integrated bayonet fitting as the connecting element between the extractor and the tool.
Quick-acting brake - For safe work when planing, sawing and routing.
Precision dual-line laser - Two laser lines for simple, precision positioning along the scribe mark from the left or right.
Power consumption: 1 600 W
Idle engine speed: 1 400 - 3 400 min⁻¹
Saw blade diameter: 260.00 mm
Cutting depth 90°/90°: 305 x 88 mm
Cutting depth at 45°/90°: 215 x 88 mm
Special cutting depth 90°/90°: 60 x 120 mm
Crown moulding diagonal cut 45°/90°: 168.00 mm
Inclination angle: 47/47 °
Mitre angle: 50/60 °
Dimensions (W x D x H): 713 x 500 x 470 mm
Cable length: 3.50 m
Product weight: 23.10 kg
Dust extraction connection diameter: 27/36 mm
Special cut. depth 45°/90° (left): 40 x 120 mm
Special cutting depth 45°/90° (right): 20 x 120 mm
Cutting depth 50°/90° (left): 196 x 88 mm
Cutting depth 60°/90° (right): 152 x 88 mm
Cutting depth 45°/45° (left): 215 x 55 mm
Cutting depth 45°/45° (right): 215 x 35 mm
Crown moulding diagonal cut at 90°/90°: 168.00 mm
Work height: 900.00 mm
Drive type: Mains
Sawing: Total vibration average, Ah: 2.50 m/s²
Sawing: Standards series EN: 61029-2-9
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level, LWA: 101.00 dB(A)
Sawing: A-weighted sound pressure level, LpA: 88.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s²
